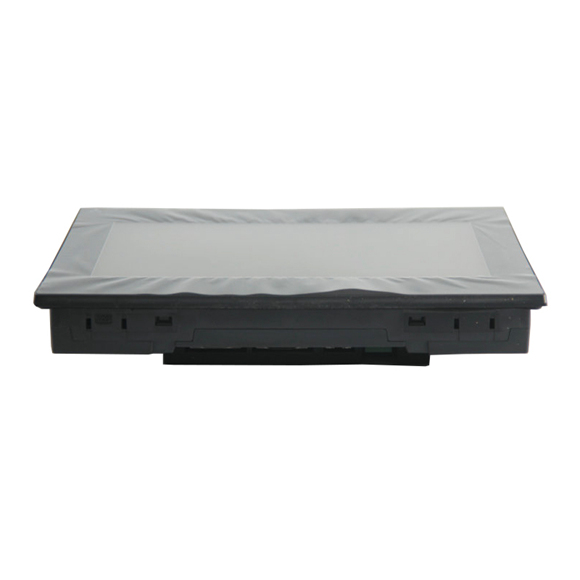

| 10″ Mitsubishi Touch screen HMIs GS21 Simple |
GS2110-WTBD |
GS2107-WTBD |
| Display Device |
TFT color LCD |
| Screen Size |
10″ |
7″ |
| Resolution |
800 x 480 dots |
| Display Size(W x H) mm (inch) |
222 x 132.5 (8.74 x 5.22) (Horizontal format) |
154 x 85.9 (6.06 x 3.38) (Horizontal format) |
| Number of Characters |
16-dot standard font: 50 chars. x 30 lines (2-byte) (Horizontal format) |
| Display Color |
65536 colors |
| Backlight |
LED (not replaceable) Backlight off/screen saving time can be set |
| Touch Panel Type |
Analog resistive film |
| Key Size |
Minimum 2 x 2 dots (per key) |
| Simultaneous Press |
Simultaneous press prohibited (only 1 point can be pressed) |
| Life |
1 million times (operating force 0.98N or less) |
| Memory C Drive |
Flash memory (internal) (9MB), for storing project data, OS Life (No. of writings) 100000 times |
| Built-in Interface RS-422 |
RS-422, 1chTransmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-Sub 9pin (female)Application: For communication with controllers Terminating resister: 330 Ω fixed |
| RS-232 |
RS-232, 1chTransmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-Sub 9pin (male)Application: For communication with controllers and a barcode readerFor connecting a personal computer (Project data read/write, FA transparent function) |
| Ethernet |
Data transfer method: 100BASE-TX, 10BASE-T, 1ch Connector shape: RJ-45 (modular jack) Application: For communication with controllersFor connecting a personal computer (Project data read/write, FA transparent function) |
| USB |
USB (Full Speed 12Mbps), 1ch Connector shape: Mini-BApplication: For connecting a personal computer (Project data read/write, FA transparent function) |
| SD Card |
SD compliant, 1chSupported memory card: SDHC memory card, SD memory card Application: Project data read/write, logging data save |
| Buzzer Output |
Single tone (LONG/SHORT/OFF adjustable) |
| Protective Structure |
IP65F (Only the front part of the panel) |
| Ext. Dimensions (W x H x D) mm (inch) |
272 x 214 x 56 (10.71 x 8.43 x 2.21) |
206 x 155 x 50 (8.11 x 6.11 x 1.97) |
| Weight (Excl. Mounting Brackets) (kg) |
1.3 |
0.9 |
| Compatible Software Package |
GT Designer3 Version1.105K or later (*1) (English Version) |
| Mitsubishi touch screen HMI GS21 Power Supply |
GS2110-WTBD |
GS2107-WTBD |
| Power Supply Voltage |
24VDC (+10%, -15%), ripple voltage 200mV or less |
| Power Consumption |
7.6W (317mA/24V) or less |
6.5W (271mA/24V) or less |
| With Backlight Off |
3.8W (158mA/24V) or less |
3.8W (158mA/24V) or less |
| Inrush Current |
17A or less (6ms, ambient temperature 25, maximum load) |
| Allowable Momentary Power Failure Time |
Within 5ms |
| Noise Immunity |
Conforms to IEC61000-4-4, 2kV (power supply line) |
| Withstand Voltage |
350VAC for 1 minute between power supply and ground |
| Insulation Resistance |
10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground) |
