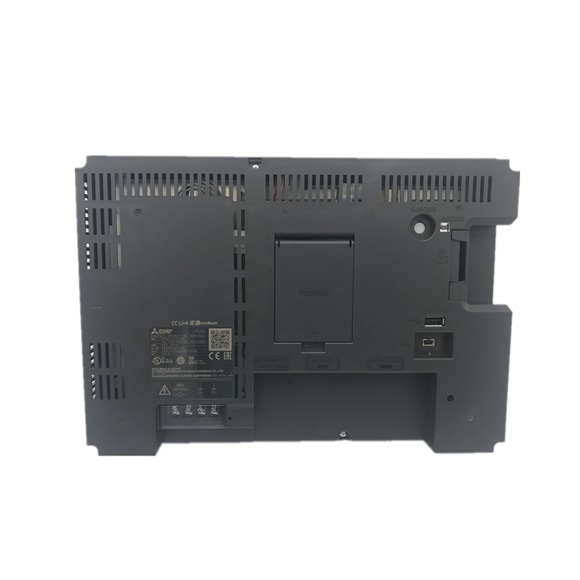

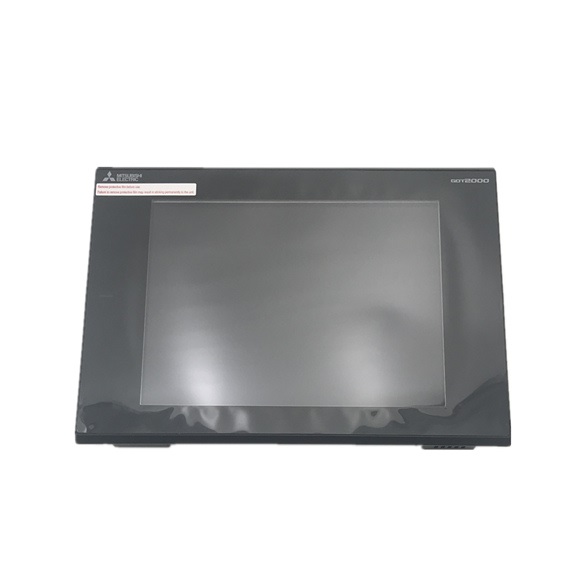

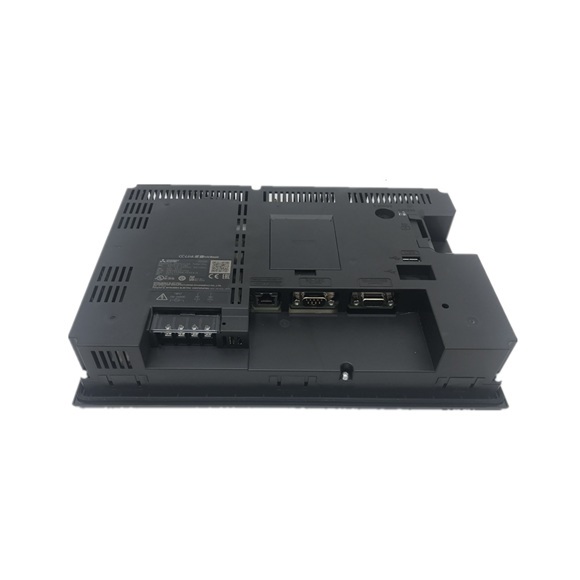

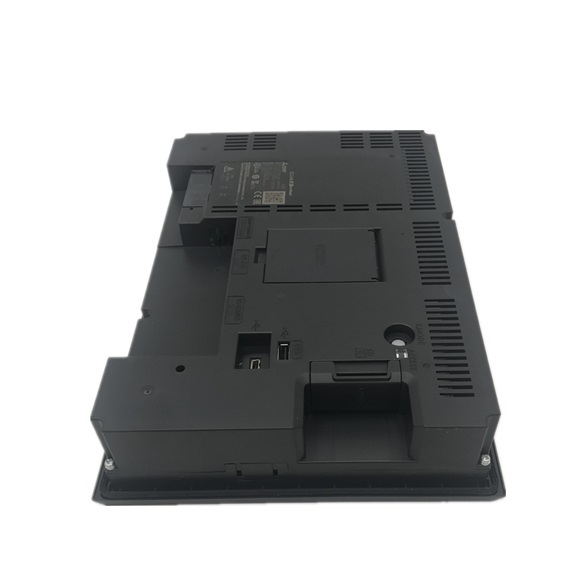

10.4″ Mitsubishi Touch screen HMIs | Model Number | Screen Size | Resolution | Display Type | Frame Color | Power Supply | Stk. Item | ||||
GT2310 | GT2310-VTBA | 10.4″ | VGA (640 x 480) |
TFT Color |
Black | 100-240VAC | S | ||||
GT2310 | GT2310-VTBD | 24VDC | S | ||||||||
GT2308 | GT2308-VTBA | 8.4″ | VGA (640 x 480) | Black | 100-240VAC | S | |||||
GT2308 | GT2308-VTBD | 24VDC | S | ||||||||
10.4″ Mitsubishi Touch screen HMIs | GT2310-VTBA | GT2308-VTBA | GT2310-VTBD | GT2308-VTBD | |||||||
Input Power Supply Voltage | 100 to 240VAC (+10%, -15%) | 24VDC (+25%, -20%) | |||||||||
Input Power Supply Frequency | 50/60Hz ±5% | – | |||||||||
Maximum Load | 18W or less | 11W or less | 16W or less | 11W or less | |||||||
Stand Alone | 15W | 9W | 13W | 8W | |||||||
Stand Alone with Backlight Off | 8W | 6W | 7W | 6W | |||||||
Inrush Current | 40A or less (4ms, ambient temperature 25°C, maximum load) | 40A or less (2ms, ambient temperature 25°C, maximum load) | |||||||||
Permissible Instantaneous Failure Time | Within 20ms (100VAC or more) | Within 10ms | |||||||||
Noise Resistance | Noise voltage 1500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz | Noise voltage 500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz | |||||||||
Withstand Voltage | 1500VAC for 1 minute between power supply terminal and ground | 350VAC for 1 minute between power supply terminal and ground | |||||||||
Insulation Resistance | 10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground) | ||||||||||
Applicable Wire Size | 0.75 to 2 [mm²] | ||||||||||
Clamp Terminal | Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A | ||||||||||
Tightening Torque (Terminal Block’s Terminal Screws) | 0.5 to 0.8 [N·m] | ||||||||||
10.4″ Mitsubishi Touch screen HMIs | GT2310-VTBA • GT2310-VTBD | GT2308-VTBA • GT2308-VTBD | |||||||||
Type |
TFT color LCD | ||||||||||
Screen Size | 10.4″ | 8.4″ | |||||||||
Resolution (Dots) | 640 x 480 VGA | ||||||||||
Display Size (W x H) mm | 211.2 x 158.4 | 170.9 x 128.2 | |||||||||
Number of Characters | 16-dot standard font: 40 chars. x 30 lines (2-byte); 12-dot standard font: 53 chars. x 40 lines (2-byte) | ||||||||||
Display Colors | 65536 colors | ||||||||||
Intensity Adjustment | 16-level adjustment | ||||||||||
Backlight Type | LED (not replaceable) | ||||||||||
Life (*4) | Approx. 50000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) | ||||||||||
Type | Analog resistive film | ||||||||||
Key Size (Dots) | Minimum 2 x 2 dots (per key) (*7) | ||||||||||
Simultaneous Press | Not available (only 1 point can be pressed) (*5) | ||||||||||
Life | 1 million times or more (operating force 0.98N or less) | ||||||||||
Panel Color | Black | ||||||||||
Memory User Memory Capacity | Memory for storage (ROM): 9MB, Memory for operation (RAM): 9MB | ||||||||||
Life (No. of Writings) | 100,000 times | ||||||||||
Internal Clock Accuracy | ±90 sec/month (ambient temperature 25°C) | ||||||||||
Buzzer Output | Single tone (tone, tone length adjustable) | ||||||||||
Power LED | Emission color: 2 colors (blue, orange) | ||||||||||
Protective Construction | Front: IP67F (*6, *8) In control panel: IP2X | ||||||||||
External Dimensions (W x H x D) mm | 303 x 218 x 56 | 241 x 194 x 56 | |||||||||
Panel Cutout (W x H) mm | 289 x 200 | 227 x 176 | |||||||||
Weight (Excluding Mounting Brackets) | 1.9 kg | 1.5 kg | |||||||||
Applicable Software Package | GT Works3 Version1.100E or later |
