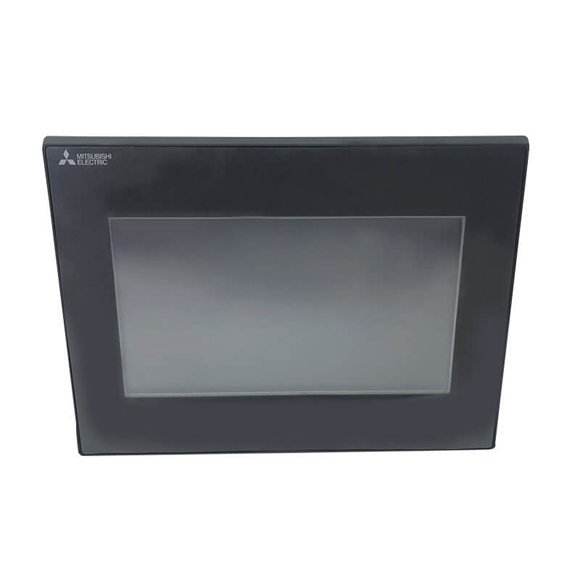

| 10.4″ Mitsubishi Touch screen HMIs |
Model Number |
Screen Size |
Resolution |
Display Type |
Frame Color |
Power Supply |
Stk. Item |
| GT2310 |
GT2310-VTBA |
10.4″ |
VGA (640 x 480) |
TFT Color |
Black |
100-240VAC |
S |
| GT2310 |
GT2310-VTBD |
24VDC |
S |
| GT2308 |
GT2308-VTBA |
8.4″ |
VGA (640 x 480) |
Black |
100-240VAC |
S |
| GT2308 |
GT2308-VTBD |
24VDC |
S |
| 10.4″ Mitsubishi Touch screen HMIs |
GT2310-VTBA |
GT2308-VTBA |
GT2310-VTBD |
GT2308-VTBD |
| Input Power Supply Voltage |
100 to 240VAC (+10%, -15%) |
24VDC (+25%, -20%) |
| Input Power Supply Frequency |
50/60Hz ±5% |
– |
| Maximum Load |
18W or less |
11W or less |
16W or less |
11W or less |
| Stand Alone |
15W |
9W |
13W |
8W |
| Stand Alone with Backlight Off |
8W |
6W |
7W |
6W |
| Inrush Current |
40A or less (4ms, ambient temperature 25°C, maximum load) |
40A or less (2ms, ambient temperature 25°C, maximum load) |
| Permissible Instantaneous Failure Time |
Within 20ms (100VAC or more) |
Within 10ms |
| Noise Resistance |
Noise voltage 1500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz |
Noise voltage 500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz |
| Withstand Voltage |
1500VAC for 1 minute between power supply terminal and ground |
350VAC for 1 minute between power supply terminal and ground |
| Insulation Resistance |
10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground) |
| Applicable Wire Size |
0.75 to 2 [mm²] |
| Clamp Terminal |
Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A |
| Tightening Torque (Terminal Block’s Terminal Screws) |
0.5 to 0.8 [N·m] |
