10.4″ HITECH (Beijer) PWS operator Panels HMI PWS5A00T-P
HITECH (Beijer) operator Panels touch screen | PWS6A00T-P | PWS6A00T-N | PWS5A00T-P |
LCD Type | Color TFT LCD | ||
Screen size | 10.4” (diagonal) | 10.1” (diagonal) | |
Display resolution | 640 x 480 | 800 x 480 | |
Brightness (cd/m2) | 450 | 300 | |
Contrast adjustment | — | ||
Display colors | 64K colors | ||
Back light type | LED | ||
CPU | 32-bit RISC | ||
Back light life | 50,000 hours | 20,000 hours | |
Operation Status LED | PWR, COM1—3, Ethernet LEDs | ||
Touch screen | Analog | ||
Touch screen | |||
(number of times) | > 1,000,000 | ||
1 Menu key and 7 user-defined function keys (F1—F7) | |||
Keypad | |||
Application Flash ROM | 8MB | ||
RAM | 16MB | ||
Data/Recipe | 512KB | ||
RTC | |||
(w/rechargeable lithium battery) | Yes | ||
Data storage (CF card) | Yes | ||

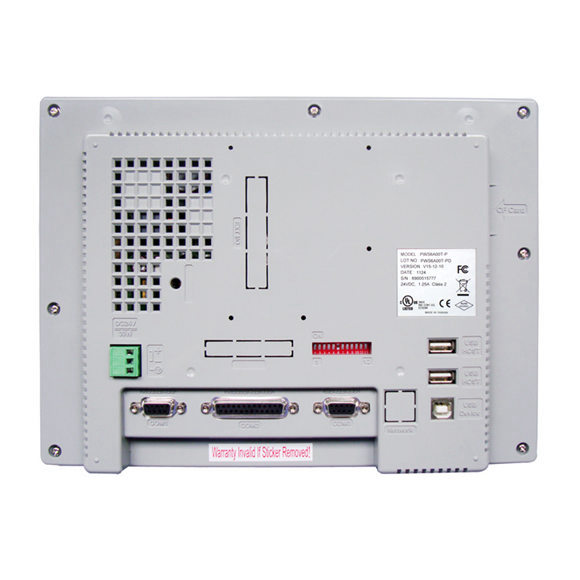

COM1 | 9-pin female (RS232/RS485) | ||
COM2 | 25-pin female (RS232/RS422/RS485) | ||
COM3 | 9-pin female (RS422/RS485) | ||
USB Host | 2 | ||
USB Device | 1 | ||
Multi-functional port | — | ||
Ethernet | — | Yes | — |
External dimensions (mm) | 297.0 (W) x 222.0 (H) x 52.3 (D) | ||
Cut-out dimensions (mm) | 286.0 x 211.0 | ||
Supply voltage | 24V DC ±15 %, < 30W | ||
Front protection | IP65 | ||
Certification | CE,UL,FCC | CE | |
Weight (kg) | 1.87 | 1.51 |
