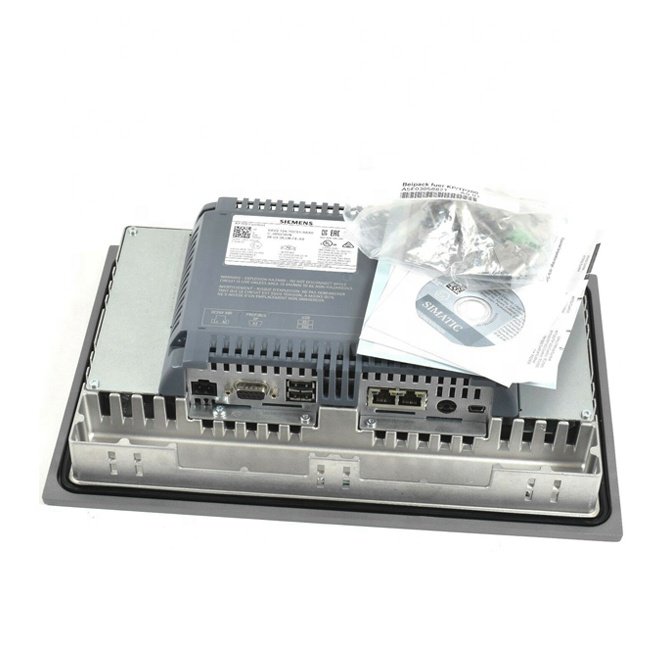

| General information | 15 inch Siemens SIMATIC HMI KP1500 Comfort Panel Touch Screen 6AV2124-1QC02-0AX1 | ||
| Product type designation | KP1500 Comfort | ||
| Design of display | TFT | ||
| Screen diagonal | 15.4 in | ||
| Display width | 331.2 mm | ||
| Display height | 207 mm | ||
| Number of colors | 16 777 216 | ||
| ● Horizontal image resolution
● Vertical image resolution |
1 280 Pixel
800 Pixel |
||
| ● MTBF backlighting (at 25 °C)
● Backlight dimmable |
80 000 h
Yes; LED, dimmable |
||
| ● Function keys
— Number of function keys |
36 |
||
| — Number of function keys with LEDs
● Keys with LED ● System keys ● Numeric keyboard ● alphanumeric keyboard |
36
Yes Yes Yes Yes |
||
| ● Design as touch screen | No | ||
| ● DP direct LEDs (LEDs as S7 output I/O) | |||
| — F1…Fx | 36 | ||
| ● Direct keys (keys as S7 input I/O) | |||
| — F1…Fx | 36 | ||
| Mounting position | vertical | ||
| Mounting in portrait format possible | No | ||
| Mounting in landscape format possible | Yes | ||
| maximum permissible angle of inclination without external ventilation | 35° | ||
| Type of supply voltage | DC | ||
| Rated value (DC) | 24 V | ||
| permissible range, lower limit (DC) | 19.2 V | ||
| permissible range, upper limit (DC) | 28.8 V | ||
| Current consumption (rated value) | 1.7 A | ||
| Starting current inrush I²t | 0.5 A²·s | ||
| Active power input, typ. | 41 W | ||
| Processor type | X86 | ||
| Flash | Yes | ||
| RAM | Yes | ||
| Memory available for user data | 24 Mbyte | ||
