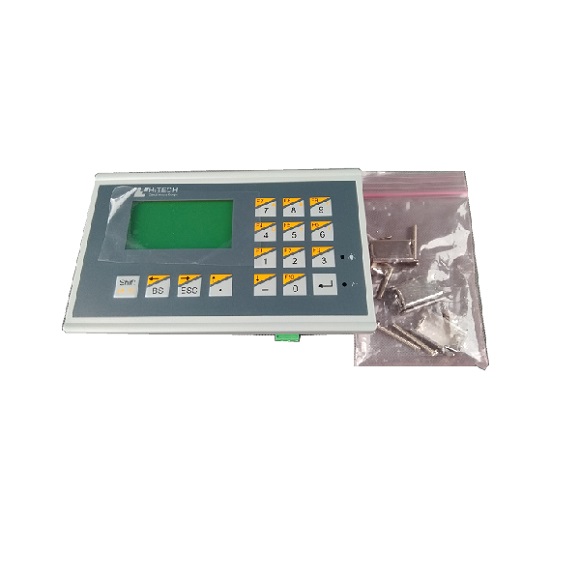

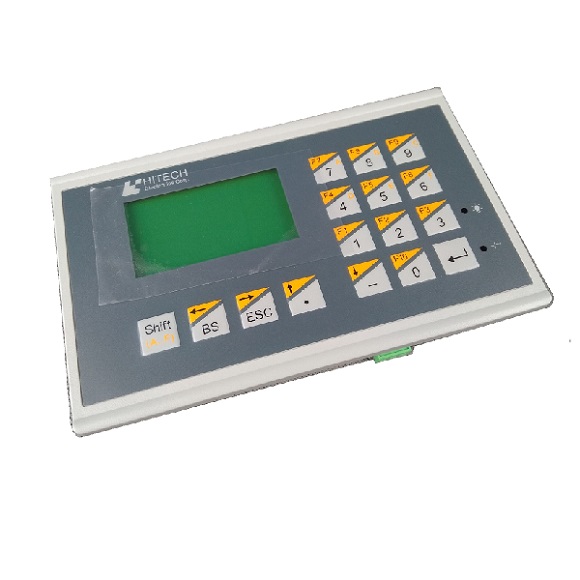

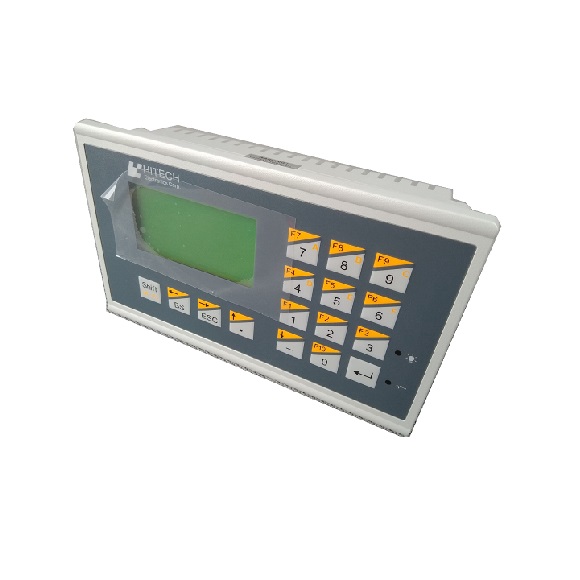

3″ HITECH (Beijer) PWS operator Panels HMI PWS6300S-S
PWS6300S-S | |
LCD Type | Mono STN LCD |
Screen size | 3” (diagonal) |
Display resolution | 160 x 80 |
Brightness (cd/m2) | 35 |
Contrast adjustment | Via VR |
Display colors | 16 shades of gray |
Back light type | LED |
CPU | 32-bit RISC |
Back light life | 50,000 hours |
Operation Status LED | PWR & COM2 LEDs |
Touch screen | — |
Touch screen | |
(number of times) | — |
Keypad | 16 mechanical switches |
Application Flash ROM | 4MB |
RAM | 128KB |
Data/Recipe | — |
RTC | |
(w/rechargeable lithium battery) | changeable lithium battery |
— | |
Data storage (CF card) | |
COM1 | — |
COM2 | 9-pin female (RS232/RS422/RS485) |
COM3 | — |
USB Host | — |
USB Device | — |
Multi-functional port | — |
Ethernet | — |
173.0 (W) x 105.5 (H) x 51.8 (D) | |
External dimensions (mm) | |
Cut-out dimensions (mm) | 160.8 x 93.3 |
Supply voltage | 24V DC ±15 %, < 8W |
Front protection | IP65 |
Certification | CE,UL,FCC |
Weight (kg) | 0.37 |
