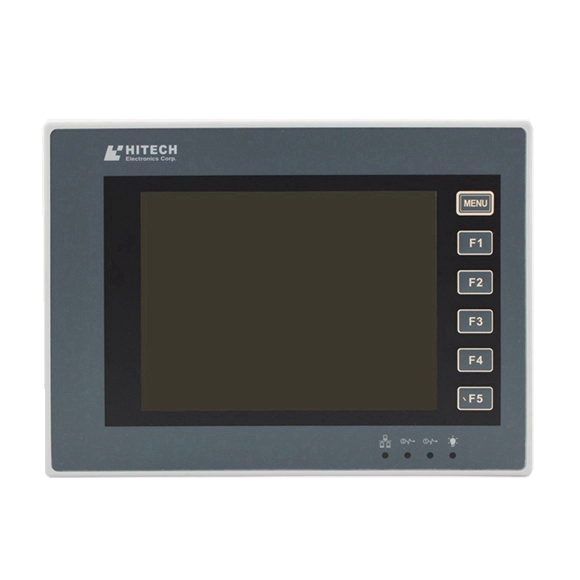

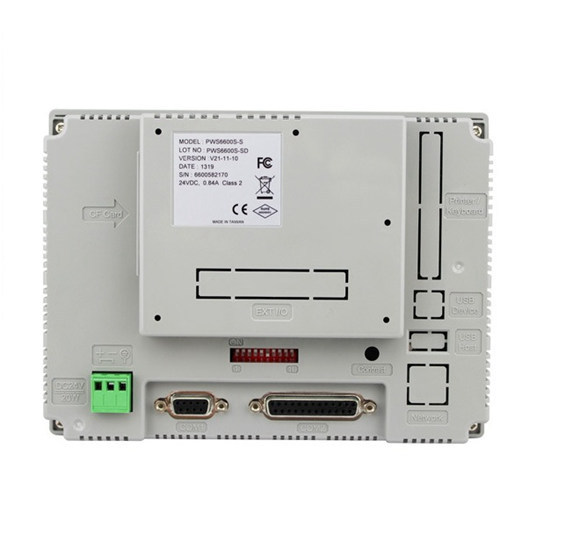

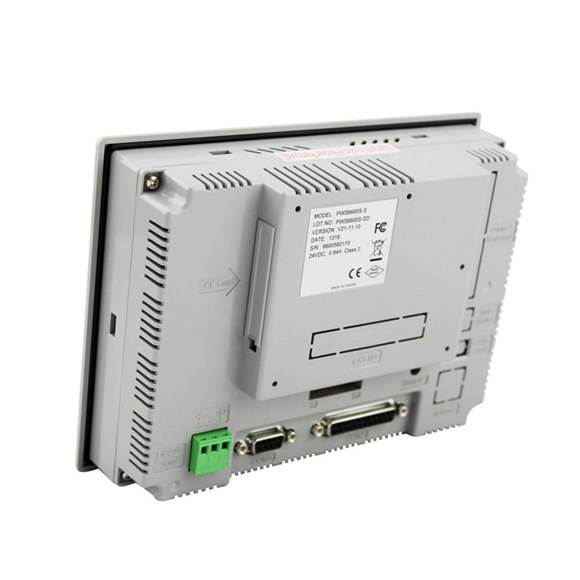

5.7″ HITECH (Beijer) PWS operator Panels HMI PWS6600S-S
PWS6600S-S | PWS6600S-P | PWS6600T-S | PWS6600T-P | |
LCD Type | Mono STN LCD | Color TFT LCD | ||
Screen size | 5.7” (diagonal) | |||
Display resolution | 320 x 240 | |||
Brightness (cd/m2) | 160 | 400 | ||
Contrast adjustment | Via touch panel | — | ||
Display colors | 16 shades of blue | 256 colors | ||
Back light type | LED | |||
CPU | 32-bit RISC | |||
Back light life | 30,000 hours | 50,000 hours | ||
Operation Status LED | PWR, COM1, COM2, Ethernet LEDs | |||
Touch screen | Analog | |||
Touch screen | ||||
(number of times) | > 1,000,000 | |||
Keypad | 1 Menu key and 5 user-defined function keys (F1—F5) | |||
Application Flash ROM | 4MB | |||
RAM | 512KB | |||
Data/Recipe | — | 512KB | — | 512KB |
RTC | ||||
(w/rechargeable lithium battery) | Yes | |||
— | ||||
Data storage (CF card) | ||||
COM1 | 9-pin female (RS232/RS485) | |||
COM2 | 25-pin female (RS232/RS422/RS485) | |||
COM3 | — | |||
USB Host | — | |||
USB Device | — | — | ||
Multi-functional port | — | 26-pin connector | — | 26-pin connector |
for printer | for printer | |||
Ethernet | — | — | ||
External dimensions (mm) | 195.0 (W) x 145.0 (H) x 59.1 (D) | |||
Cut-out dimensions (mm) | 185.8 x 135.8 | |||
Supply voltage | 24V DC ±15 %, < 20W | |||
Front protection | IP65 | |||
Certification | CE,UL,FCC | |||
Weight (kg) | 0.81 | 0.75 |
