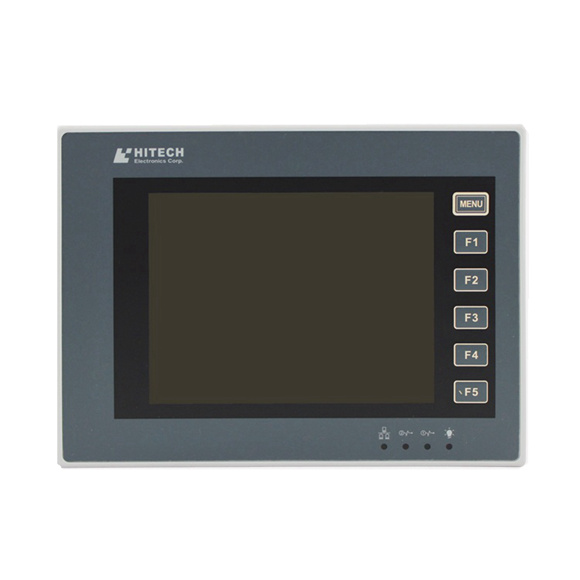

5.7" HITECH (Beijer) PWS operator Panels HMI PWS6600T-S

5.7″ HITECH (Beijer) PWS operator Panels HMI PWS6600T-S
5.7” Beijer touch screen graphic touch HMI, standard 16 shades of blue STN display
COM Port x1,240 x 240 pixels
We are First Class HITECH (Beijer) HMI Touch screen distributor in China.
We can Supply All series of HITECH (Beijer) HMI Touch screen.
100% Original and new,In stock by HITECH (Beijer) Electronics。
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

5.7″ HITECH (Beijer) PWS operator Panels HMI	PWS6600S-S	PWS6600S-P	PWS6600T-S	PWS6600T-P
LCD Type	Mono STN LCD		Color TFT LCD
Screen size	5.7” (diagonal)
Display resolution	320 x 240
Brightness (cd/m2)	160		400

Contrast adjustment	Via touch panel		—

Display colors	16 shades of blue		256 colors
Back light type	LED
CPU	32-bit RISC
Back light life	30,000 hours		50,000 hours
Operation Status LED	PWR, COM1, COM2, Ethernet LEDs

Touch screen	Analog

Touch screen
(number of times)	> 1,000,000


Keypad	1 Menu key and 5 user-defined function keys (F1—F5)
Application Flash ROM	4MB
RAM	512KB
Data/Recipe	—	512KB	—	512KB
RTC
(w/rechargeable lithium battery)	Yes
	—
Data storage (CF card)

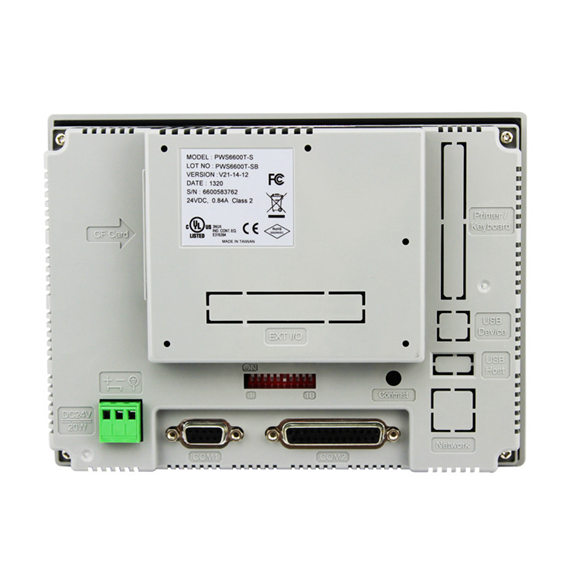

COM1	9-pin female (RS232/RS485)

COM2	25-pin female (RS232/RS422/RS485)

COM3	—
USB Host	—
USB Device	—		—

Multi-functional port	—	26-pin connector	—	26-pin connector
		for printer		for printer
Ethernet	—		—

External dimensions (mm)	195.0 (W) x 145.0 (H) x 59.1 (D)
Cut-out dimensions (mm)	185.8 x 135.8
Supply voltage	24V DC ±15 %, < 20W
Front protection	IP65
Certification	CE,UL,FCC
Weight (kg)	0.81		0.75
