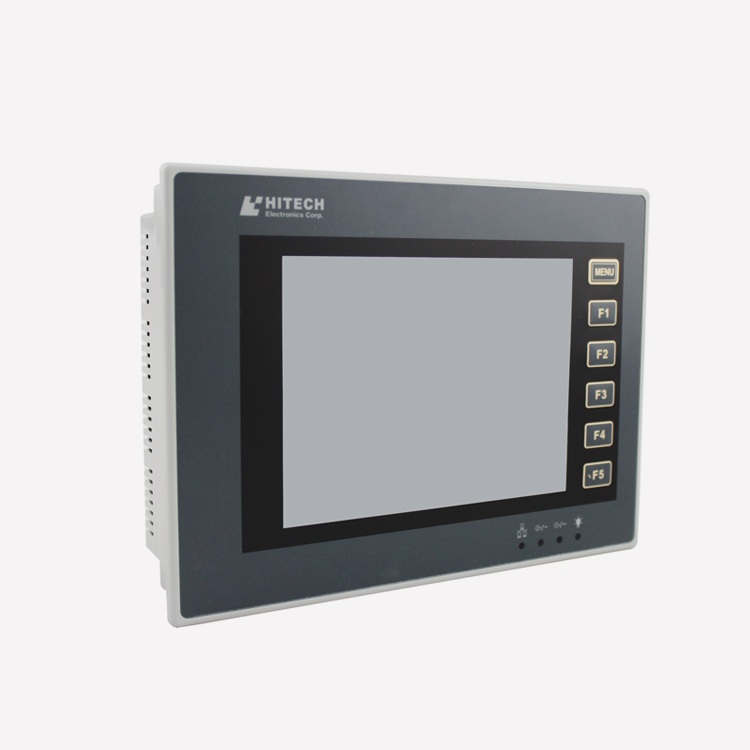

5.7″ HITECH (Beijer) PWS operator Panels HMI PWS6620T-P
HITECH (Beijer) operator Panels touch screen | PWS6620S-P | PWS6620S-N | PWS6620T-P | PWS6620T-N |
LCD Type | Mono STN LCD | Color TFT LCD | ||
Screen size | 5.7” (diagonal) | |||
Display resolution | 320×240 | |||
Brightness (cd/m2) | 160 | 400 | ||
Contrast adjustment | Via touch panel | — | ||
Display colors | 16 shades of blue | 64K colors | ||
Back light type | CCFL | LED | ||
CPU | 32-bit RISC | |||
Back light life | 50,000 hours | |||
Operation Status LED | PWR, COM1, COM 2, Ethernet LEDs | |||
Touch screen | Analog | |||
Touch screen | ||||
(number of times) | > 1,000,000 | |||

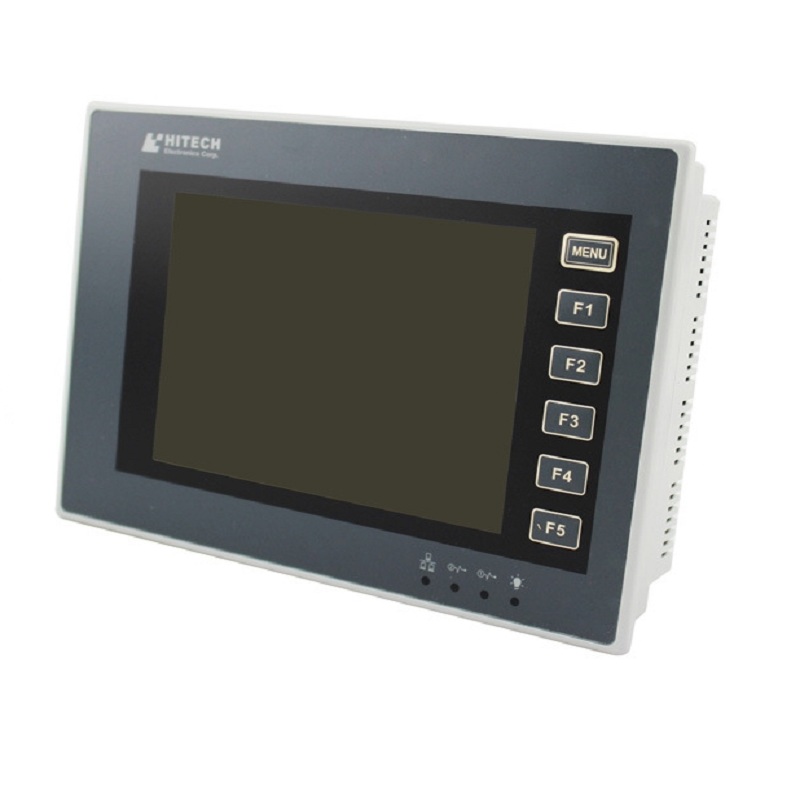

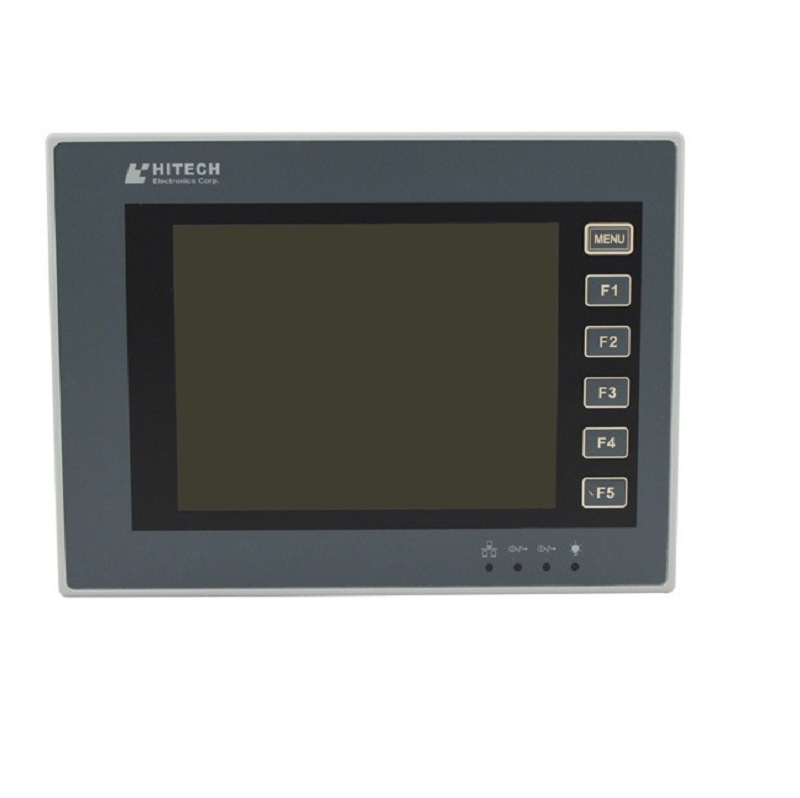

Keypad | 1 Menu key and 5 user-defined function keys (F1—F5) | |||
Application Flash ROM | 4MB | |||
RAM | 16MB | |||
Data/Recipe | 512KB | |||
RTC | ||||
(w/rechargeable lithium battery) | Yes | |||
Data storage (CF card) | Yes | |||

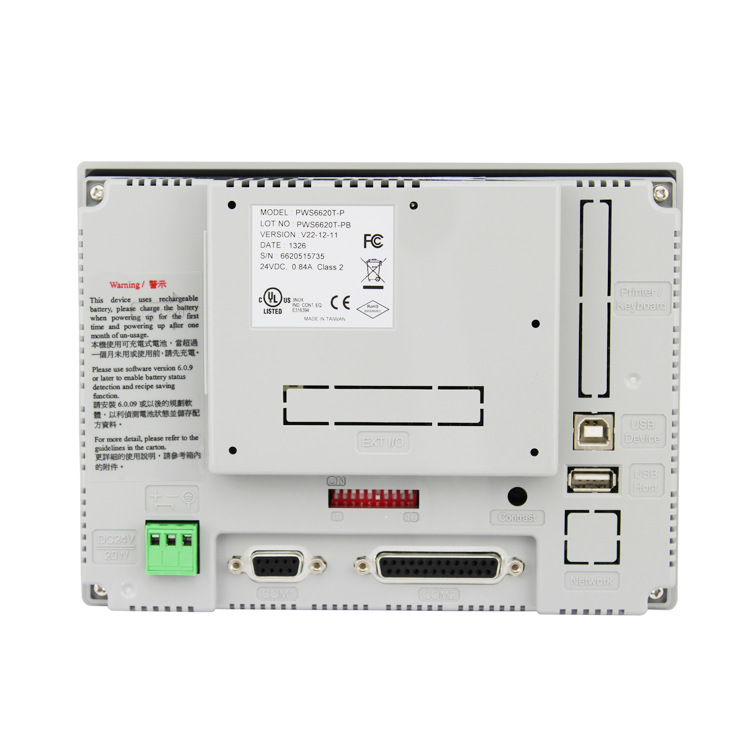

COM1 | 9-pin female (RS232/RS485) | |||
COM2 | 25-pin female (RS232/RS422/RS485) | |||
COM3 | — | |||
USB Host | 1 | |||
USB Device | 1 | |||
Multi-functional port | — | |||
Ethernet | — | Yes | — | Yes |
External dimensions (mm) | 195.0 (W) x 145.0 (H) x 59.1 (D) | |||
Cut-out dimensions (mm) | 185.8 x 135.8 | |||
Supply voltage | 24V DC ±15 %, < 20W | |||
Front protection | IP65 | |||
Certification | CE,UL,FCC | |||
Weight (kg) | 0.81 |
