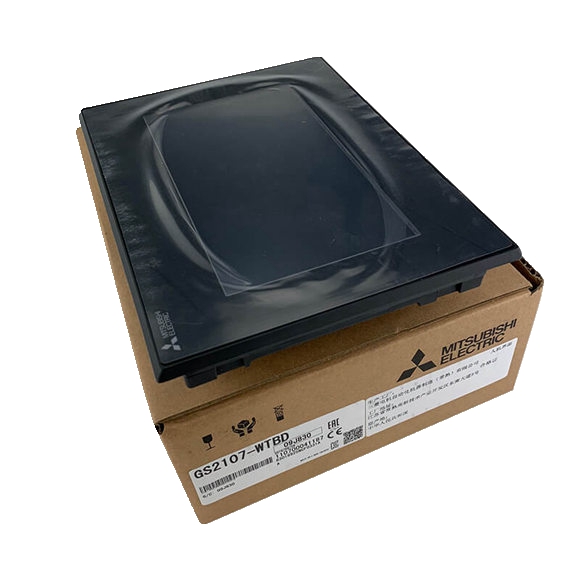

| 7″ Mitsubishi Touch screen HMIs | GT2107-WTBD | GT2107-WTSD | GT2105-QTBDS | GT2105-QMBDS |
| Type | TFT color LCD | TFT Color LCD | TFT monochrome LCD | |
| Screen Size | 7″ widescreen | 5.7″ | ||
| Resolution (Dots) | WVGA: 800 x 480 dots | 320 x 240 dots | ||
| Display Size (W x H) mm | 152.4 x 91.44 (6.00 x 3.60 inch) | 115 x 86 (4.53 x 3.39 inch) | ||
| Number of Characters | 16-dot standard font: 50 chars x 30 lines (two-byte characters) 12-dot standard font: 66 chars x 40 lines (two-byte characters) | 16-dot standard font: 20 chars x 15 lines (2-byte characters) 12-dot standard font: 26 chars x 20 lines (2-byte characters) | ||
| Display Colors | 65536 colors | 65536 colors | Monochrome (black/white) 32 shade grayscale | |
| Intensity Adjustment | 32-level adjustment | |||
| Backlight
Type |
LED (Not replaceable) | |||
| Life (*4) | Approx. 50000 h (operating ambient temp: 25°C, display intensity: 50%) | Approx. 65000 h (operating ambient temp: 25°C, display intensity: 50%) | ||
| Touch Panel (*3)
Type |
Analog resistive film | |||
| Key Size (Dots) | Minimum 2 x 2 dots (per key) (*7) | |||
| Simultaneous Press | Simultaneous press prohibited (only 1 point can be pressed) (*5) | |||
| Life | 1 million times or more (operating force 0.98N or less) | |||
| Panel Color | Black | Silver | Black | |
| Memory
User Memory Capacity |
Memory for storage (ROM): 15 MB | Memory for storage (ROM): 9 MB | ||
| Life (No. of Writings) | 100000 times | |||
| Battery
Type |
GT11-50BAT lithium battery | – | ||
| Life | Approx. 5 years (ambient temp: 25°C) | – | ||
|
Built-in Interface RS-232 |
1 channel Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps Connector shape: D-sub 9-pin (male) | 1 channel Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps. Connector shape: D-sub 9-pin (male) | ||
| RS-422/485 | 1 channel Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps Connector shape: D-sub 9-pin (female) | 1 channel Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps Connector shape: D-sub 9-pin (female) Terminating resistor (*9): OPEN/110 Ω/330 Ω (Switched with the terminating resistor setting switch) | ||
| RS-422 | – | – | ||
| Ethernet | 1 channel Data transfer method: 10BASE-T, 100BASE-TX Connector shape: RJ-45 (modular jack) | – | ||
| USB (Host) | 1 channel (rear face) Maximum transfer rate: Full-Speed 12 Mbps Connector shape: USB-A | |||
| USB (Device) | 1 channel (front face) Maximum transfer rate: Full-Speed 12 Mbps Connector shape: USB Mini-B | 1 channel; Maximum transfer rate: Full-Speed 12 Mbps Connector shape: USB Mini-B | ||
| SD Card | 1 channel, SDHC compliant (maximum 32 GB) | |||
| Buzzer Output | Single tone (tone length adjustable) | |||
| Protective Construction | Front: IP67F (*6, *8, *10) Inside control panel: IP2X | Outside the enclosure: IP67F (*6, *8) Inside the enclosure: IP2X | ||
| External Dimensions (W x H x D) mm (in) | 189 x 142 x 48 (7.44 x 5.59 x 1.89) | 164 x 135 x 55 (6.46 x 5.32 x 2.17) | ||
| Panel Cutout (W x H) mm (in) | 180.5 x 133.5 (7.11 x 5.26) | 153 x 121 (6.03 x 4.77) | ||
| Weight kg (lb)(Excluding Mounting Brackets) | 0.7 (1.54) | Approx. 0.7kg | ||
| Applicable Software Package | GT Works3 Version1.170C or later | GT Works3 Version1.144A or later | ||
