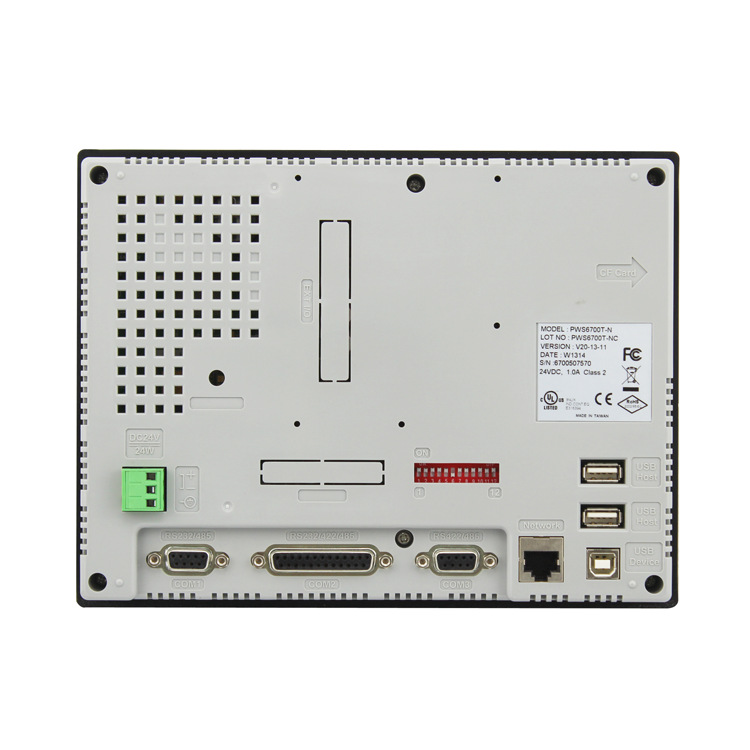

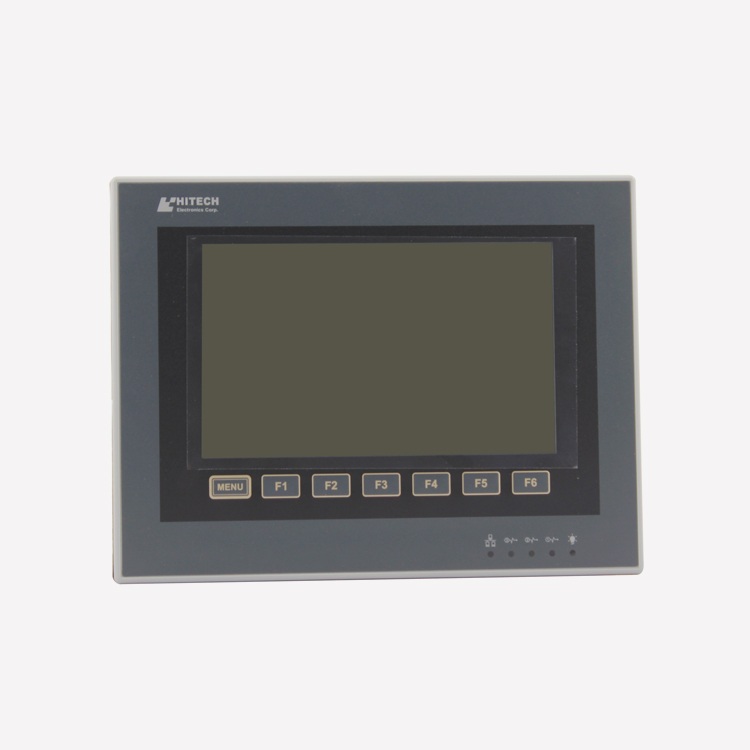

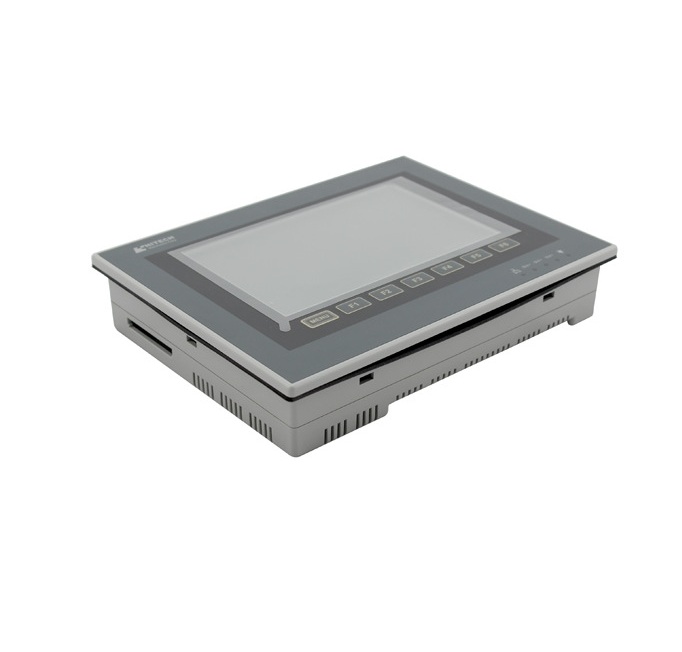

7″ HITECH (Beijer) PWS operator Panels HMI PWS6710T-P
| HITECH (Beijer) operator Panels touch screen | PWS6710T-P | PWS6710T-N |
| LCD Type | Color TFT LCD | |
| Screen size | 7” (diagonal) | |
| Display resolution | 800×480 | |
| Brightness (cd/m2) | 400 | |
| Contrast adjustment | — | |
| Display colors | 64K colors | |
| Back light type | LED | |
| CPU | 32-bit RISC | |
| Back light life | 20,000 hours | |
| Operation Status LED | PWR, COM1—3, Ethernet LEDs | |
| Touch screen | Analog | |
| Touch screen | ||
| (number of times) | > 1,000,000 | |
| 1 Menu key and 6 user-defined function keys (F1—F6) | ||
| Keypad | ||
| Application Flash ROM | 8MB | |
| RAM | 16MB | |
| Data/Recipe | 512KB | |
| RTC | ||
| (w/rechargeable lithium battery) | Yes | |
| Data storage (CF card) | Yes | |
| COM1 | 9-pin female (RS232/RS485) | |
| COM2 | 25-pin female (RS232/RS422/RS485) | |
| COM3 | 9-pin female (RS422/RS485) | |
| USB Host | 2 | |
| USB Device | 1 | |
| Multi-functional port | — | |
| Ethernet | — | Yes |
| External dimensions (mm) | 231.0 (W) x 176.0 (H) x 46.8 (D) | |
| Cut-out dimensions (mm) | 220.8 x 165.8 | |
| Supply voltage | 24V DC ±15 %, < 24W | |
| Front protection | IP65 | |
| Certification | CE | |
| Weight (kg) | 1.05 | |
