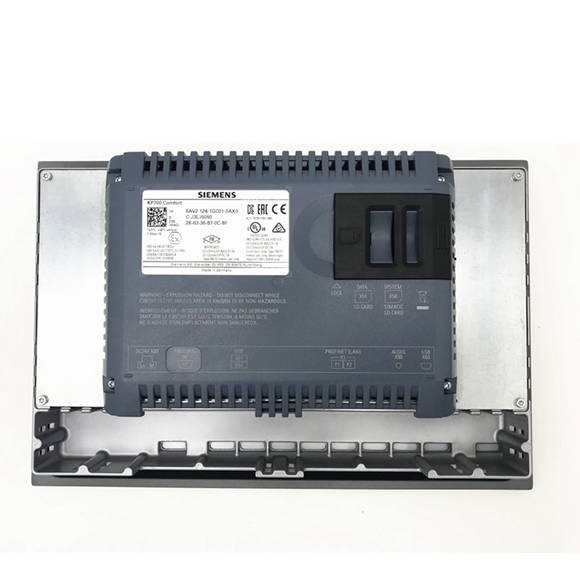

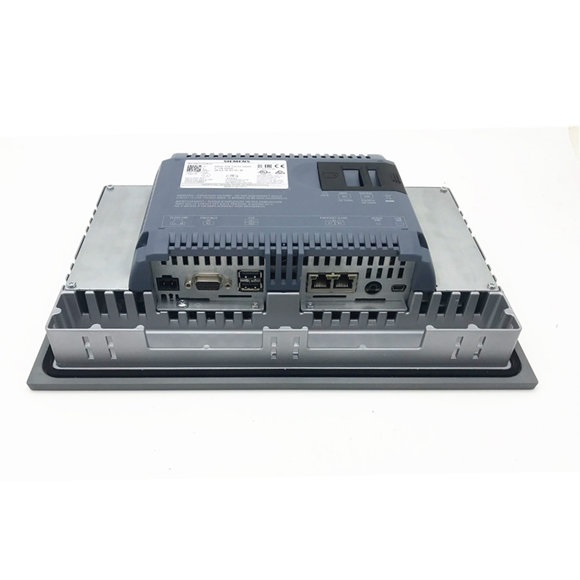

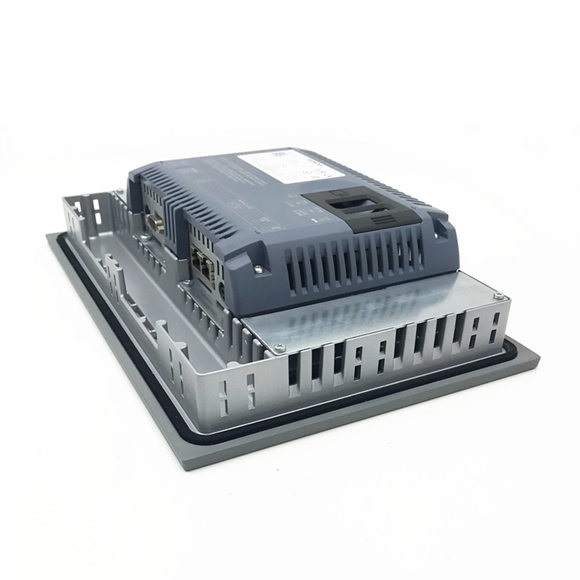

General information | 7 inch Siemens SIMATIC HMI KP700 Comfort Panel Touch Screen 6AV2124-1GC01-0AX0 | |||||
Product type designation | KP700 Comfort | |||||
Design of display | TFT | |||||
Screen diagonal | 7 in | |||||
Display width | 152.4 mm | |||||
Display height | 91.4 mm | |||||
Number of colors | 16 777 216 | |||||
● Horizontal image resolution
● Vertical image resolution |
800 Pixel
480 Pixel |
|||||
● MTBF backlighting (at 25 °C)
● Backlight dimmable |
80 000 h
Yes; 0-100 % |
|||||
● Function keys
— Number of function keys |
24 |
|||||
— Number of function keys with LEDs
● Keys with LED ● System keys ● Numeric keyboard ● alphanumeric keyboard |
24
Yes Yes Yes Yes; |
similar |
to |
mobile |
phone |
|
● Design as touch screen | No | |||||
● DP direct LEDs (LEDs as S7 output I/O) | ||||||
— F1…Fx | 24 | |||||
● Direct keys (keys as S7 input I/O) | ||||||
— F1…Fx | 24 | |||||
● Direct keys (touch buttons as S7 input I/O) | 0 | |||||
Mounting position | vertical | |||||
Mounting in portrait format possible | No | |||||
Mounting in landscape format possible | Yes | |||||
maximum permissible angle of inclination without external ventilation | 35° | |||||
Type of supply voltage | DC | |||||
Rated value (DC) | 24 V | |||||
permissible range, lower limit (DC) | 19.2 V | |||||
permissible range, upper limit (DC) | 28.8 V | |||||
Current consumption (rated value) | 0.5 A | |||||
Starting current inrush I²t | 0.5 A²·s |
