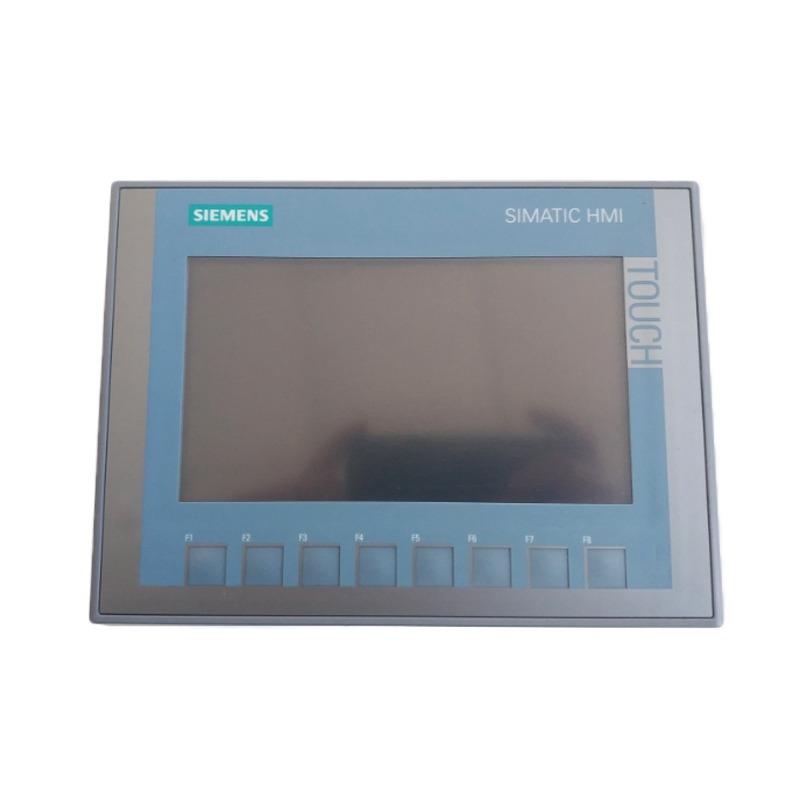

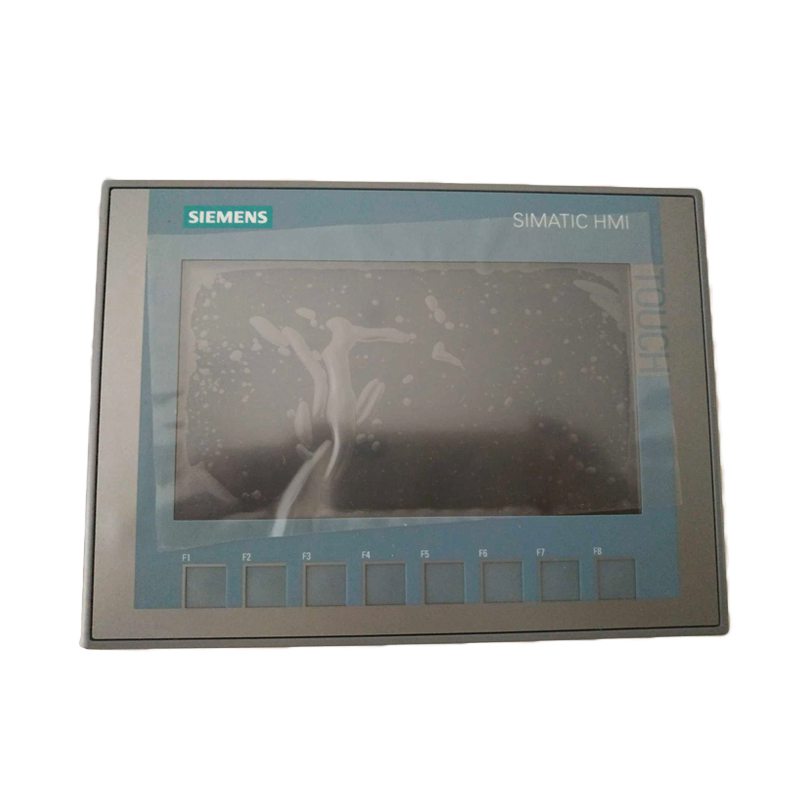

7 inch Siemens SIMATIC HMI KTP700 Basic DP Panel Touch Screen 6AV2123-2GA03-0AX0

7 inch Siemens SIMATIC HMI KTP700 Basic DP Panel Touch Screen 6AV2123-2GA03-0AX0
SIMATIC HMI, KTP700 Basic, Basic Panel, Key/touch operation,
7″ TFT display, 65536 colors, PROFINET interface,
configurable from WinCC Basic V13/ STEP 7 Basic V13,
contains open-source software, which is provided free of charge see enclosed CD

Qty:

Add to Enquiry Cart

Specification

Download A Munual

General information	7 inch Siemens SIMATIC HMI KTP700 Basic DP Panel Touch Screen 6AV2123-2GB03-0AX0
Product type designation	KTP700 Basic DP color PN
Design of display	TFT widescreen display, LED backlighting
Screen diagonal	7 in
Display width	154.1 mm
Display height	85.9 mm
Number of colors	65 536
● Horizontal image resolution● Vertical image resolution	800 Pixel480 Pixel
● MTBF backlighting (at 25 °C)● Backlight dimmable	20 000 hYes
● Function keys— Number of function keys	8
● Design as touch screen	Yes
Mounting position	vertical
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
maximum permissible angle of inclination without external ventilation	35°
Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Current consumption (rated value)	230 mA
Starting current inrush I²t	0.2 A²·s
Processor type	ARM
Flash	Yes
RAM	Yes
Memory available for user data	10 Mbyte
