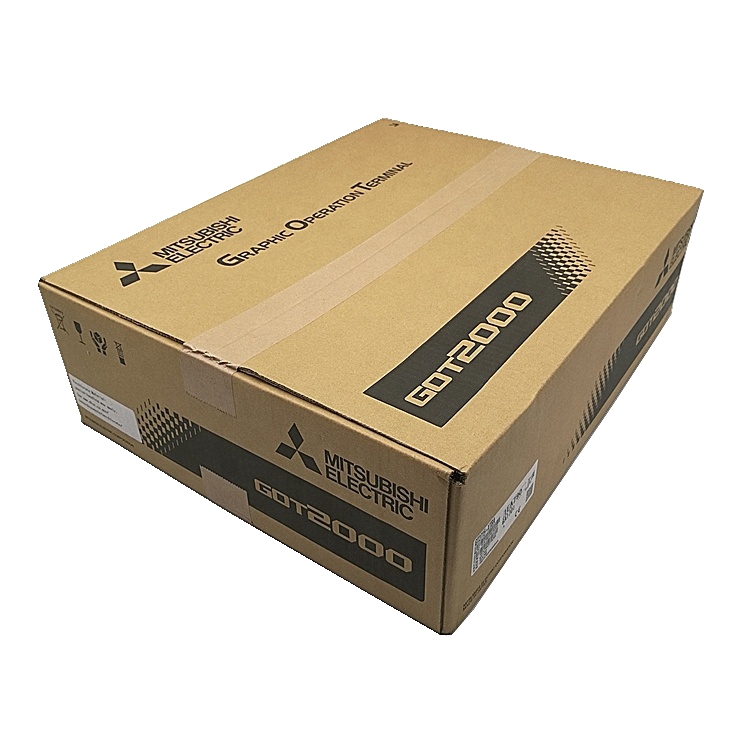

8.4″ Mitsubishi Touch screen HMIs GT2308-VTBD

Series#: Mitsubishi HMI

Product Details

  • 8.4″ Mitsubishi Touch screen HMIs GT2308-VTBD
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

10.4″ Mitsubishi Touch screen HMIs Model Number Screen Size Resolution Display Type Frame Color Power Supply Stk. Item
GT2310 GT2310-VTBA 10.4″ VGA (640 x 480)

TFT Color

Black 100-240VAC S
GT2310 GT2310-VTBD 24VDC S
GT2308 GT2308-VTBA 8.4″ VGA (640 x 480) Black 100-240VAC S
GT2308 GT2308-VTBD 24VDC S
10.4″ Mitsubishi Touch screen HMIs GT2310-VTBA GT2308-VTBA GT2310-VTBD GT2308-VTBD
Input Power Supply Voltage 100 to 240VAC (+10%, -15%) 24VDC (+25%, -20%)
Input Power Supply Frequency 50/60Hz ±5%
Maximum Load 18W or less 11W or less 16W or less 11W or less
Stand Alone 15W 9W 13W 8W
Stand Alone with Backlight Off 8W 6W 7W 6W
Inrush Current 40A or less (4ms, ambient temperature 25°C, maximum load) 40A or less (2ms, ambient temperature 25°C, maximum load)
Permissible Instantaneous Failure Time Within 20ms (100VAC or more) Within 10ms
Noise Resistance Noise voltage 1500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz Noise voltage 500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz
Withstand Voltage 1500VAC for 1 minute between power supply terminal and ground 350VAC for 1 minute between power supply terminal and ground
Insulation Resistance 10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground)
Applicable Wire Size 0.75 to 2 [mm²]
Clamp Terminal Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Tightening Torque (Terminal Block’s Terminal Screws) 0.5 to 0.8 [N·m]
10.4″ Mitsubishi Touch screen HMIs GT2310-VTBA • GT2310-VTBD GT2308-VTBA • GT2308-VTBD


Type

TFT color LCD
Screen Size 10.4″ 8.4″
Resolution (Dots) 640 x 480 VGA
Display Size (W x H) mm 211.2 x 158.4 170.9 x 128.2
Number of Characters 16-dot standard font: 40 chars. x 30 lines (2-byte); 12-dot standard font: 53 chars. x 40 lines (2-byte)
Display Colors 65536 colors
Intensity Adjustment 16-level adjustment
Backlight Type LED (not replaceable)
Life (*4) Approx. 50000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C)
Type Analog resistive film
Key Size (Dots) Minimum 2 x 2 dots (per key) (*7)
Simultaneous Press Not available (only 1 point can be pressed) (*5)
Life 1 million times or more (operating force 0.98N or less)
Panel Color Black
Memory User Memory Capacity Memory for storage (ROM): 9MB, Memory for operation (RAM): 9MB
Life (No. of Writings) 100,000 times
Internal Clock Accuracy ±90 sec/month (ambient temperature 25°C)
Buzzer Output Single tone (tone, tone length adjustable)
Power LED Emission color: 2 colors (blue, orange)
Protective Construction Front: IP67F (*6, *8) In control panel: IP2X
External Dimensions (W x H x D) mm 303 x 218 x 56 241 x 194 x 56
Panel Cutout (W x H) mm 289 x 200 227 x 176
Weight (Excluding Mounting Brackets) 1.9 kg 1.5 kg
Applicable Software Package GT Works3 Version1.100E or later
