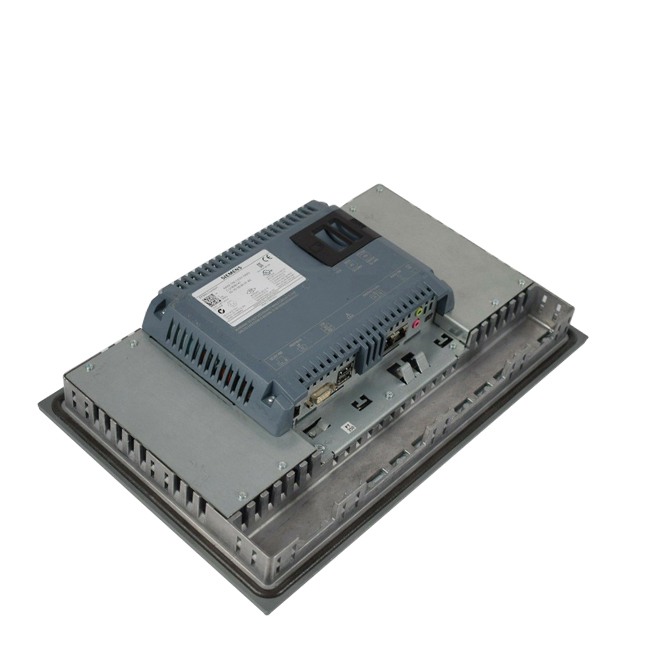

General information | 9 inch Siemens SIMATIC HMI KP900 Comfort Panel Touch Screen 6AV2124-1JC01-0AX0 | ||
Product type designation | KP900 Comfort | ||
Design of display | TFT | ||
Screen diagonal | 9 in | ||
Display width | 195 mm | ||
Display height | 117 mm | ||
Number of colors | 16 777 216 | ||
● Horizontal image resolution
● Vertical image resolution |
800 Pixel
480 Pixel |
||
● MTBF backlighting (at 25 °C)
● Backlight dimmable |
80 000 h
Yes; 0-100 % |
||
● Function keys
— Number of function keys |
26 |
||
● Design as touch screen | No | ||
● DP direct LEDs (LEDs as S7 output I/O) | |||
— F1…Fx | 26 | ||
● Direct keys (keys as S7 input I/O) | |||
— F1…Fx | 26 | ||
● Direct keys (touch buttons as S7 input I/O) | 0 | ||
Mounting position | vertical | ||
Mounting in portrait format possible | No | ||
Mounting in landscape format possible | Yes | ||
maximum permissible angle of inclination without external ventilation | 35° | ||
Type of supply voltage | DC | ||
Rated value (DC) | 24 V | ||
permissible range, lower limit (DC) | 19.2 V | ||
permissible range, upper limit (DC) | 28.8 V | ||
Current consumption (rated value) | 0.75 A | ||
Starting current inrush I²t | 0.5 A²·s | ||
Processor type | X86 | ||
Flash | Yes | ||
RAM | Yes | ||
Memory available for user data | 12 Mbyte |
