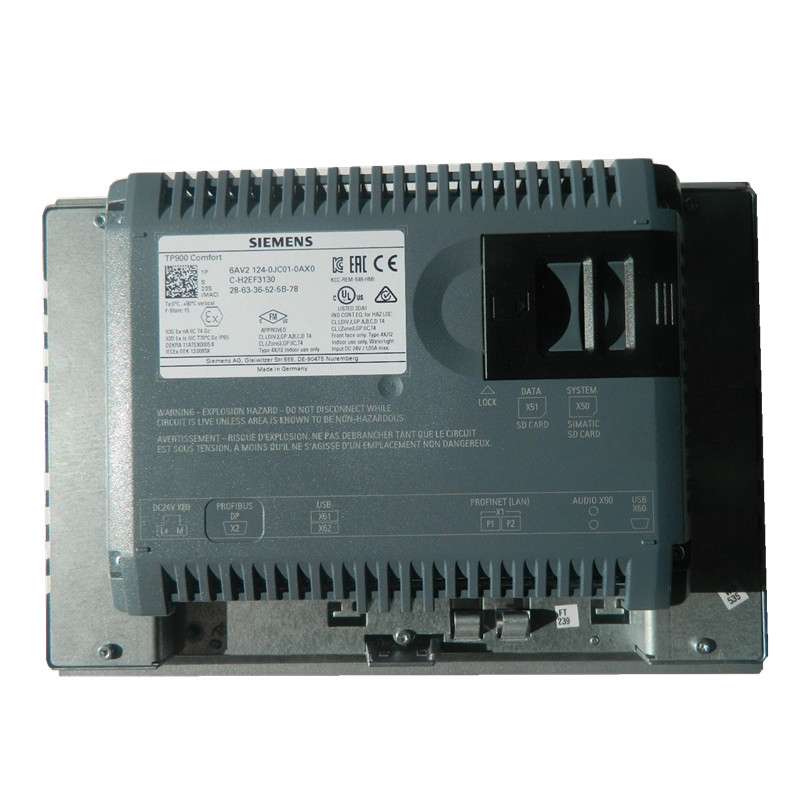

9 inch Siemens SIMATIC HMI TP900 Comfort Panel Touch Screen 6AV2124-0JC01-0AX0

Qty:

Add to Enquiry Cart

Specification

Download A Munual

General information	9 inch Siemens SIMATIC HMI TP900 Comfort Panel Touch Screen 6AV2124-0JC01-0AX0
Product type designation	TP900 Comfort
Design of display	TFT
Screen diagonal	9 in
Display width	195 mm
Display height	117 mm
Number of colors	16 777 216
● Horizontal image resolution ● Vertical image resolution	800 Pixel 480 Pixel
● MTBF backlighting (at 25 °C) ● Backlight dimmable	80 000 h Yes; 0-100 %
● Function keys — Number of function keys	0
— Number of function keys with LEDs ● Keys with LED ● System keys ● Numeric keyboard ● alphanumeric keyboard	0 No No Yes; Yes;	Onscreen Onscreen	keyboard keyboard
● Design as touch screen	Yes
● DP direct LEDs (LEDs as S7 output I/O)
— F1…Fx	0
● Direct keys (keys as S7 input I/O)
— F1…Fx	0
● Direct keys (touch buttons as S7 input I/O)	40
Mounting position	vertical
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
maximum permissible angle of inclination without external ventilation	35°
Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Current consumption (rated value)	0.75 A
Starting current inrush I²t	0.5 A²·s
Active power input, typ.	18 W
