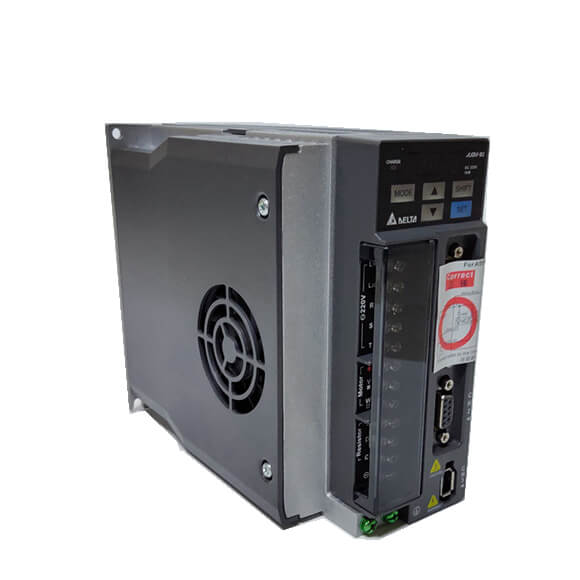

  • ASD B2L 0221 B 6

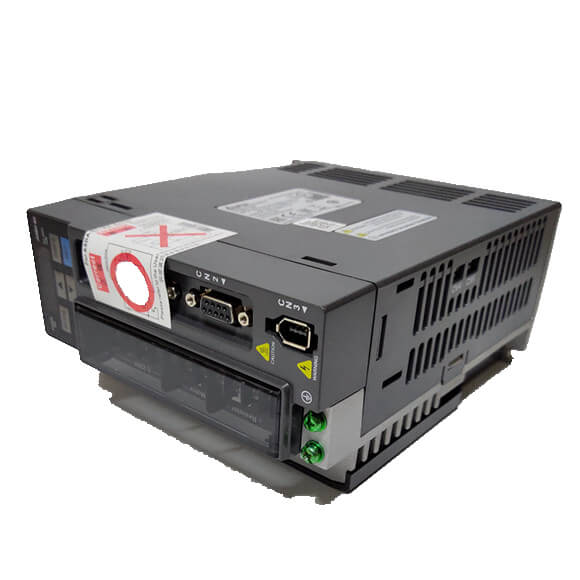

  • ASD B2L 0221 B 5
  • ASD B2L 0221 B 1 1

Delta ASDA-A2 Servo Drive 1.5KW ASD-A2-1521-M

Series#: Delta Servo Drive

Product Details

  • Delta ASDA-A2 Servo Drive 1.5KW ASD-A2-1521-M
  • We are First Class Delta Servo Drive dealer and Delta Servo Drive distributor in China.
  • We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
  • 100% Original and new,In stock by Delta Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Delta ASDA-A2 Servo Drive 100 W 200 W 400 W 750 W 1 kW 1.5 kW 2 kW 3 kW 4.5 kW 5.5 kW 7.5 kW 11 kW 15kW
Delta ASDA-A2 Servo Drive 01 02 04 07 10 15 20 30 45 55 75 1B 1F
Power supply Phase / Voltage Three-phase / Single-phase 220VAC 3-phase 220VAC
Permissible Voltage Range 1-phase / 3-phase 200 ~ 230VAC, -15% ~ 10% 3-phase 200 ~ 230VAC, -15% ~ 10%
Input Current(3PH) (Units: Arms) 0.39 1.11 1.86 3.66 4.68 5.9 8.76 9.83 17.5 19.4 26.3 48 63
Input Current(1PH) (Units: Arms) 0.69 1.92 3.22 6.78 8.88 10.3
Continuous Output Current (Units: Arms) 0.9 1.55 2.6 5.1 7.3 8.3 13.4 19.4 32.5 40 47.5 54.4 70
Cooling System Natural Air Circulation Fan Cooling
Encoder Resolution / Feedback Resolution Incremental encoder: 20-bit ƞAbsolute encoder: 17-bit
Control of Main Circuit SVPWM(Space Vector Pulse Width Modulation) Control
Tuning Modes Auto / Manual
Regenerative Resistor None Built-in External
Max. Input Pulse Frequency(Only for Non-DMCNET mode) Max. 500Kpps / 4Mpps (Line driver), Max. 200Kpps (Open collector)
Pulse Type (Only for Non-DMCNET mode) Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source External pulse train (PT mode) (Only for Non-DMCNET mode) / Internal parameters (PR mode)
Smoothing Strategy /RZ-SDVV DQG 3-FXUYH ¿OWHU
Electronic Gear Electronic gear N/M multiple N: 1~32767, M: 1:32767 (1/50<N/M<25600)
Analog Monitor Output Monitor signal can set by parameters (Output voltage range: ›8V)
 Protective Functions Overcurrent, Overvoltage, Undervoltage, Motor overheated, Regeneration error, Overload, Overspeed, Abnormal pulse control command, Excessive deviation, Encoder error, Adjustment error, Emergency stop activated, Reverse/ Forward limit switch error, Position excessive deviation of full-close control loop, Serial communication error, Input power phase loss, Serial communication time out, short circuit protection of U, V, W, and CN1, CN2, CN3 terminals
Communication Interface RS-232 / RS-485 / CANopen / USB / DMCNET
