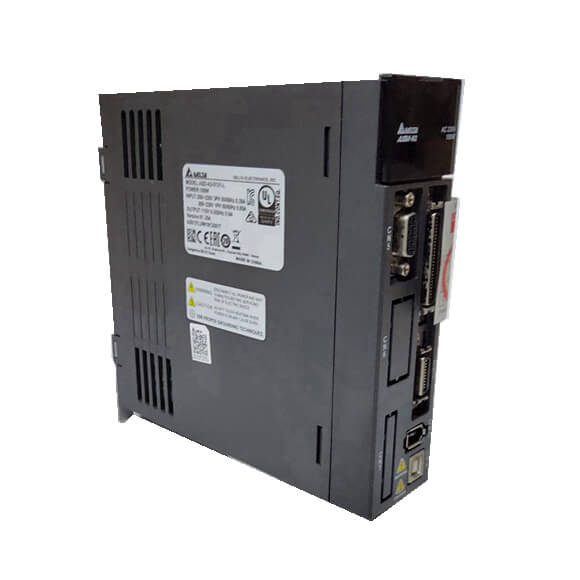

Delta ASDA-A2 Servo Drive 400W ASD-A2-0421-L

Series#: Delta Servo Drive

Product Details

Delta ASDA-A2 Servo Drive 400W ASD-A2-0421-L
We are First Class Delta Servo Drive dealer and Delta Servo Drive distributor in China.
We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
100% Original and new,In stock by Delta Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Delta ASDA-A2 Servo Drive	100 W	200 W	400 W	750 W	1 kW	1.5 kW	2 kW	3 kW	4.5 kW	5.5 kW	7.5 kW	11 kW	15kW
Delta ASDA-A2 Servo Drive	01	02	04	07	10	15	20	30	45	55	75	1B	1F
Power supply Phase / Voltage	Three-phase / Single-phase 220VAC						3-phase 220VAC
Permissible Voltage Range	1-phase / 3-phase 200 ~ 230VAC, -15% ~ 10%						3-phase 200 ~ 230VAC, -15% ~ 10%
Input Current(3PH) (Units: Arms)	0.39	1.11	1.86	3.66	4.68	5.9	8.76	9.83	17.5	19.4	26.3	48	63
Input Current(1PH) (Units: Arms)	0.69	1.92	3.22	6.78	8.88	10.3	–	–	–	–	–	–	–
Continuous Output Current (Units: Arms)	0.9	1.55	2.6	5.1	7.3	8.3	13.4	19.4	32.5	40	47.5	54.4	70
Cooling System	Natural Air Circulation			Fan Cooling
Encoder Resolution / Feedback Resolution	Incremental encoder: 20-bit ƞAbsolute encoder: 17-bit
Control of Main Circuit	SVPWM(Space Vector Pulse Width Modulation) Control
Tuning Modes	Auto / Manual
Regenerative Resistor	None		Built-in							External
Max. Input Pulse Frequency(Only for Non-DMCNET mode)	Max. 500Kpps / 4Mpps (Line driver), Max. 200Kpps (Open collector)
Pulse Type (Only for Non-DMCNET mode)	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source	External pulse train (PT mode) (Only for Non-DMCNET mode) / Internal parameters (PR mode)
Smoothing Strategy	/RZ-SDVV DQG 3-FXUYH ¿OWHU
Electronic Gear	Electronic gear N/M multiple N: 1~32767, M: 1:32767 (1/50<N/M<25600)
Analog Monitor Output	Monitor signal can set by parameters (Output voltage range: ›8V)
Protective Functions	Overcurrent, Overvoltage, Undervoltage, Motor overheated, Regeneration error, Overload, Overspeed, Abnormal pulse control command, Excessive deviation, Encoder error, Adjustment error, Emergency stop activated, Reverse/ Forward limit switch error, Position excessive deviation of full-close control loop, Serial communication error, Input power phase loss, Serial communication time out, short circuit protection of U, V, W, and CN1, CN2, CN3 terminals
Communication Interface	RS-232 / RS-485 / CANopen / USB / DMCNET
