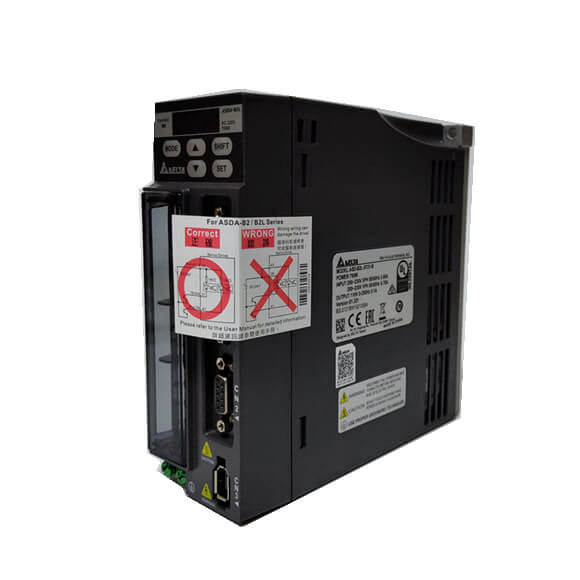

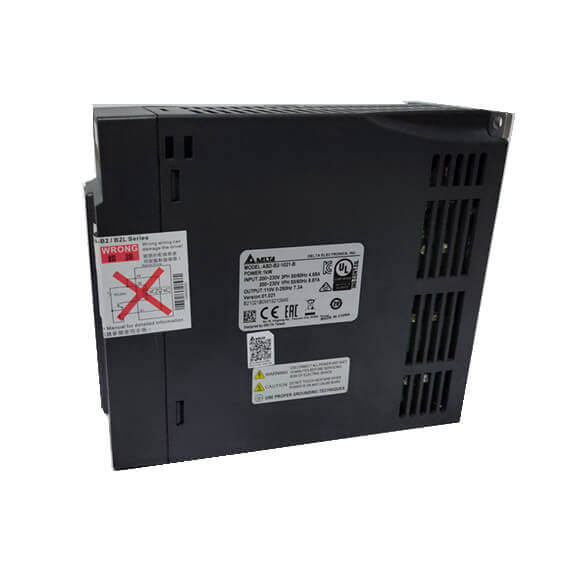

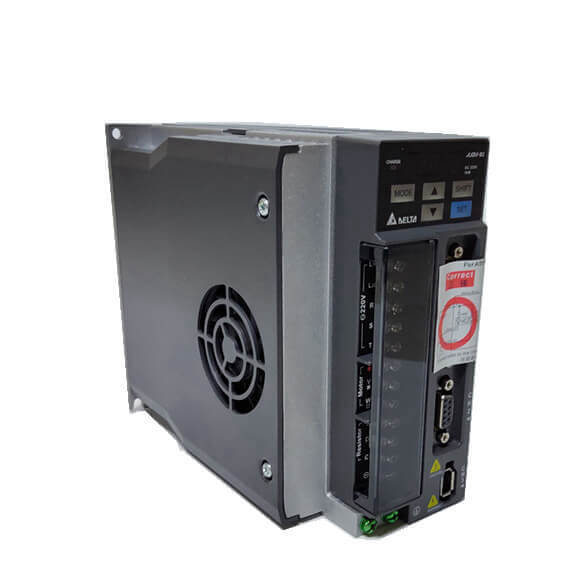

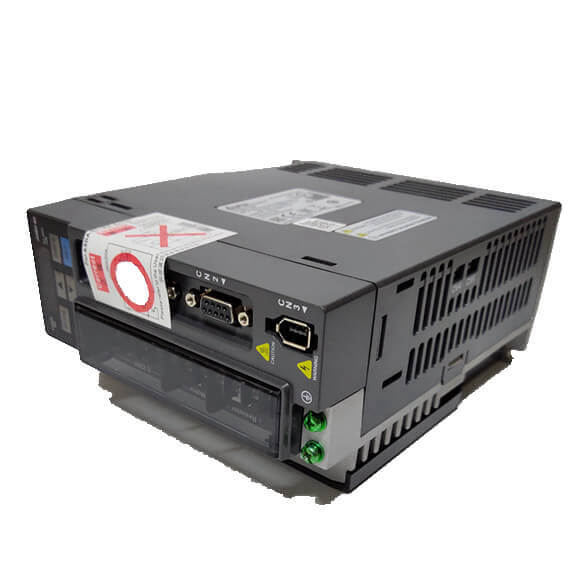

Delta ASDA-B2 Servo Drive 200W ASD-B2L-0221-B

Delta ASDA-B2 Servo Drive 200W ASD-B2L-0221-B
We are First Class Delta Servo Drive dealer and Delta Servo Drive distributor in China.
We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
100% Original and new,In stock by Delta Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Delta ASDA-B2 Servo Drive ASD-B2L	100W	200W	400W	750W	1kW	1.5kW	2kW	3kW
Delta ASDA-B2 Servo Drive ASD-B2L	01	02	04	07	10	15	20	30
Phase / Voltage	Three-phase: 170 ~ 255VAC, 50／60Hz ±5%Single-phase: 200 ~ 255VAC, 50／60Hz ±5%						Three-phase: 170 ~ 255VAC,50／60Hz ±5%
Continuous Output Current	0.9Arms	1.55Arms	2.6Arms	5.1Arms	7.3Arms	8.3Arms	13.4Arms	19.4Arms
Cooling System	Natural Air Circulation				Fan Cooling
Encoder Resolution / Feedback Resolution	17-bit (160000 p/rev)
Control of Main Circuit	SVPWM Control
Tuning Modes	Auto / Manual
Dynamic Brake	–			Built-in
Max. Input Pulse Frequency	Line driver: Max. 500Kpps (low speed)/ Max.4Mpps(high speed) Open collector: Max. 200Kpps
Pulse Type	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source	External pulse train / Internal parameters
Smoothing Strategy	Low-pass filter
Electronic Gear	Electronic gear N/M multiple N: 1 ~ (226-1)/M:1 ~ (231-1)1/50 < N/M < 25600
Torque Limit Operation	Set by parameters
Feed Forward Compensation	Set by parameters
Analog Input Command Voltage Range	0 ~ ±10 VDC
InputResistance	10KW
Time Constant	2.2 us
Speed Control Range*1	1:5000
Command Source	External analog signal / Internal parameters
Smoothing Strategy	Low-pass and S-curve filter
Torque Limit Operation	Set by parameters or via Analog input
ResponsivenessCharacteristic	Maximum 550Hz
