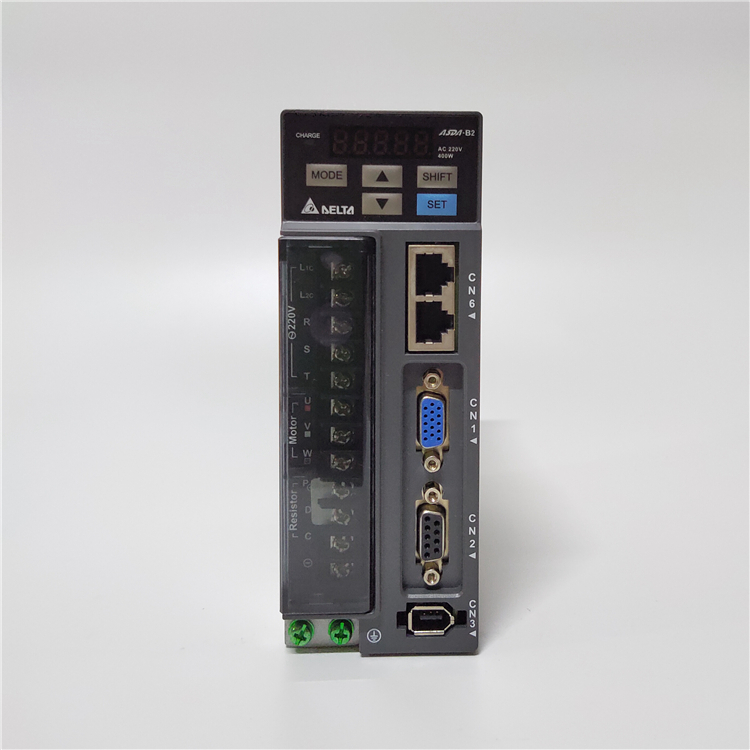

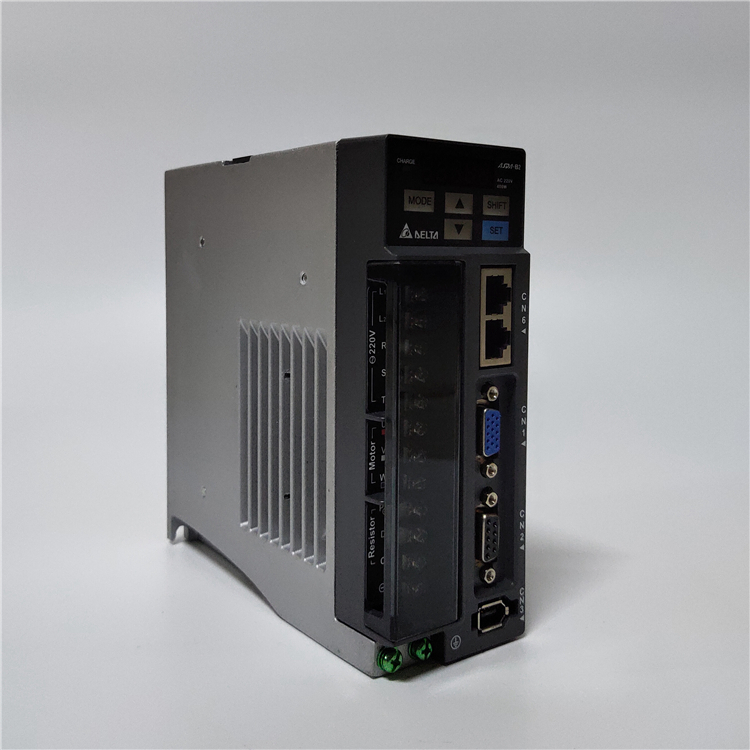

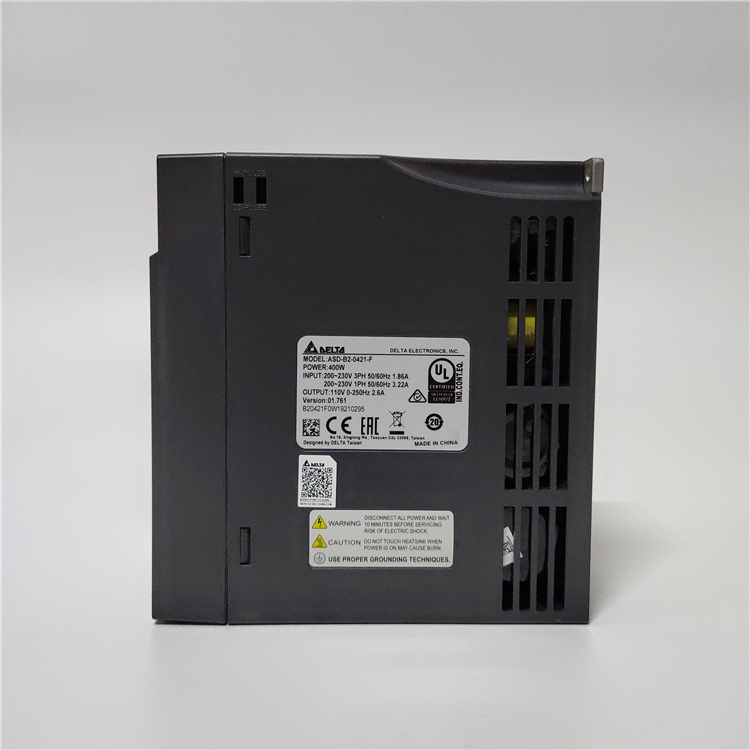

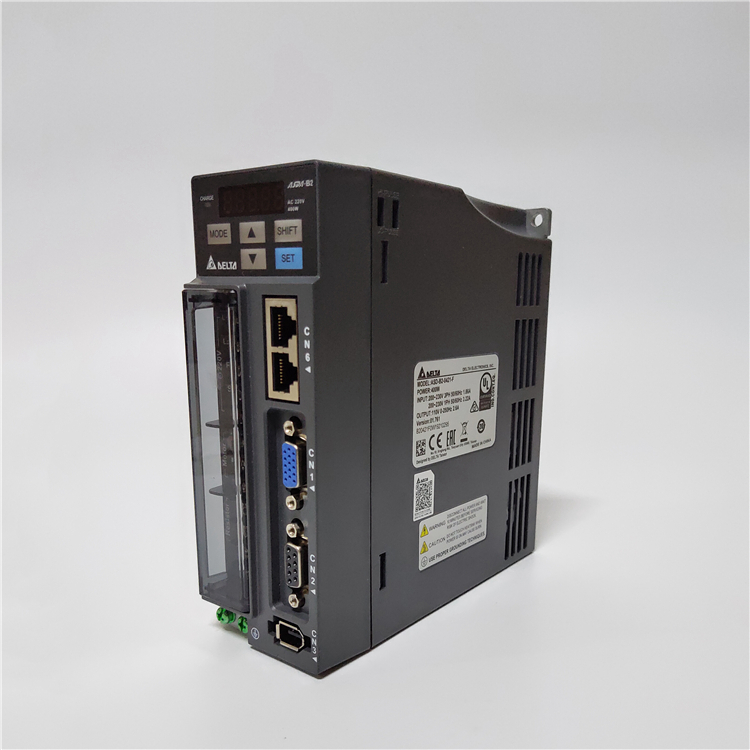

Delta ASDA-B2 Servo Drive 400W ASD-B2-0421-B

Delta ASDA-B2 Servo Drive 400W ASD-B2-0421-B
Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently.
ASDA-Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly.
Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly.
Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications.
Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories.
The control circuit and main power circuit is separated, safety is increased and maintenance is much easier.
400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost.
Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor.

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Delta ASDA-B2 Servo Drive ASD-B2L	100W	200W	400W	750W	1kW	1.5kW	2kW	3kW
Delta ASDA-B2 Servo Drive ASD-B2L	01	02	04	07	10	15	20	30
Phase / Voltage	Three-phase: 170 ~ 255VAC, 50／60Hz ±5%Single-phase: 200 ~ 255VAC, 50／60Hz ±5%						Three-phase: 170 ~ 255VAC,50／60Hz ±5%
Continuous Output Current	0.9Arms	1.55Arms	2.6Arms	5.1Arms	7.3Arms	8.3Arms	13.4Arms	19.4Arms
Cooling System	Natural Air Circulation				Fan Cooling
Encoder Resolution / Feedback Resolution	17-bit (160000 p/rev)
Control of Main Circuit	SVPWM Control
Tuning Modes	Auto / Manual
Dynamic Brake	–			Built-in
Max. Input Pulse Frequency	Line driver: Max. 500Kpps (low speed)/ Max.4Mpps(high speed) Open collector: Max. 200Kpps
Pulse Type	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source	External pulse train / Internal parameters
Smoothing Strategy	Low-pass filter
Electronic Gear	Electronic gear N/M multiple N: 1 ~ (226-1)/M:1 ~ (231-1)1/50 < N/M < 25600
Torque Limit Operation	Set by parameters
Feed Forward Compensation	Set by parameters
Analog Input CommandVoltage Range	0 ~ ±10 VDC
InputResistance	10KW
Time Constant	2.2 us
Speed Control Range*1	1:5000
Command Source	External analog signal / Internal parameters
Smoothing Strategy	Low-pass and S-curve filter
Torque Limit Operation	Set by parameters or via Analog input
ResponsivenessCharacteristic	Maximum 550Hz
