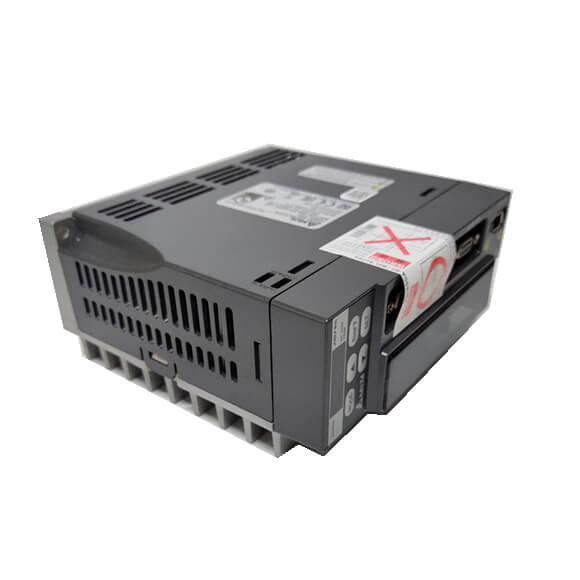

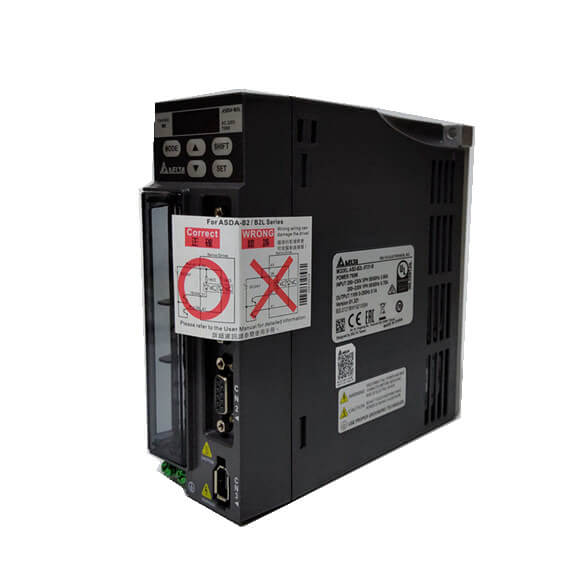

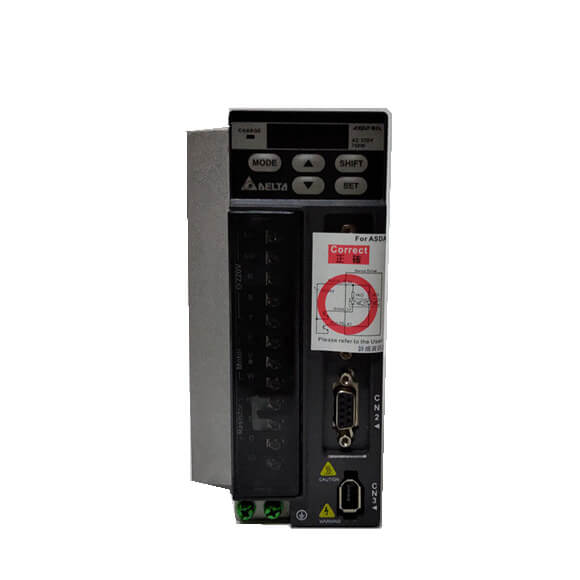

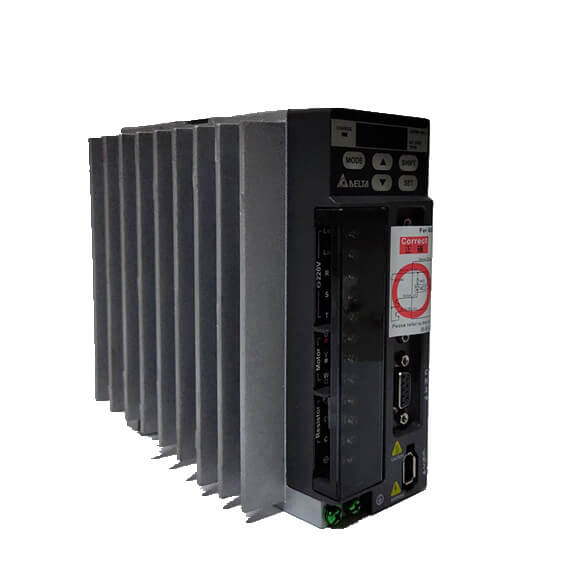

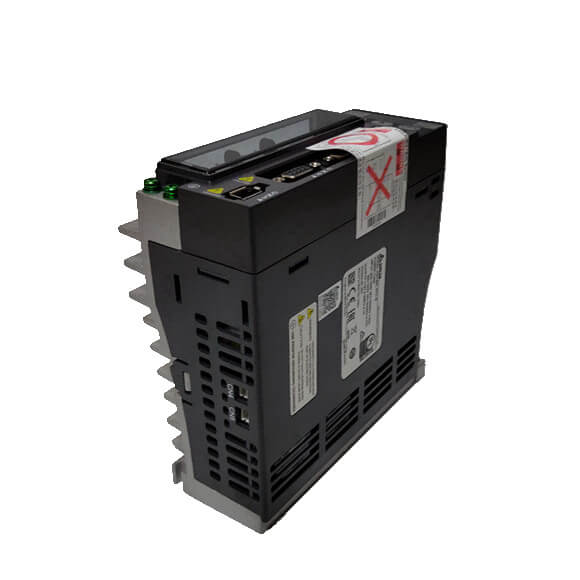

Delta ASDA-B2 Servo Drive ASD-B2L-1021-B 1000W

Series#: Delta Servo Drive

Product Details

  • Delta ASDA-B2 Servo Drive ASD-B2L-1021-B
  • We are First Class Delta Servo Drive dealer and Delta Servo Drive distributor in China.
  • We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
  • 100% Original and new,In stock by Delta Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Delta ASDA-B2 Servo Drive ASD-B2L 100W 200W 400W 750W 1kW 1.5kW 2kW 3kW
Delta ASDA-B2 Servo Drive ASD-B2L 01 02 04 07 10 15 20 30


Phase / Voltage

Three-phase: 170 ~ 255VAC, 50/60Hz ±5%Single-phase: 200 ~ 255VAC, 50/60Hz ±5% Three-phase: 170 ~ 255VAC,50/60Hz ±5%
Continuous Output Current 0.9Arms 1.55Arms 2.6Arms 5.1Arms 7.3Arms 8.3Arms 13.4Arms 19.4Arms
Cooling System Natural Air Circulation Fan Cooling
Encoder Resolution / Feedback Resolution 17-bit (160000 p/rev)
Control of Main Circuit SVPWM Control
Tuning Modes Auto / Manual
Dynamic Brake Built-in


Max. Input Pulse Frequency

Line driver: Max. 500Kpps (low speed)/ Max.4Mpps(high speed) Open collector: Max. 200Kpps
Pulse Type Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source External pulse train / Internal parameters
Smoothing Strategy Low-pass filter
 Electronic Gear Electronic gear N/M multiple N: 1 ~ (226-1)/M:1 ~ (231-1)1/50 < N/M < 25600
Torque Limit Operation Set by parameters
Feed Forward Compensation Set by parameters
Analog Input Command

Voltage Range

0 ~ ±10 VDC
InputResistance 10KW
Time Constant 2.2 us
Speed Control Range*1 1:5000
Command Source External analog signal / Internal parameters
Smoothing Strategy Low-pass and S-curve filter
Torque Limit Operation Set by parameters or via Analog input
ResponsivenessCharacteristic Maximum 550Hz
