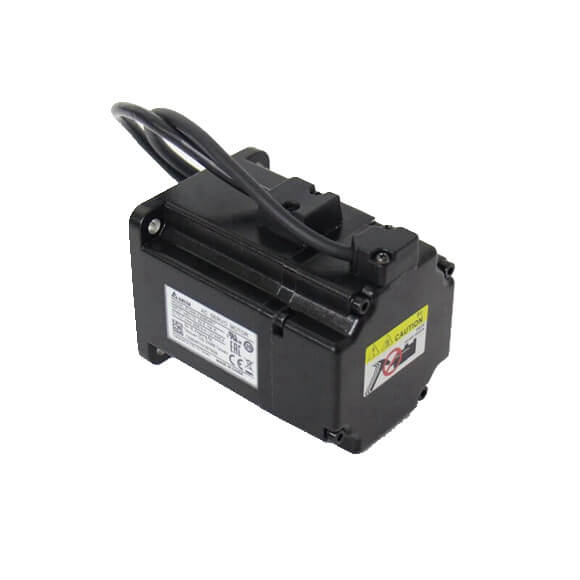

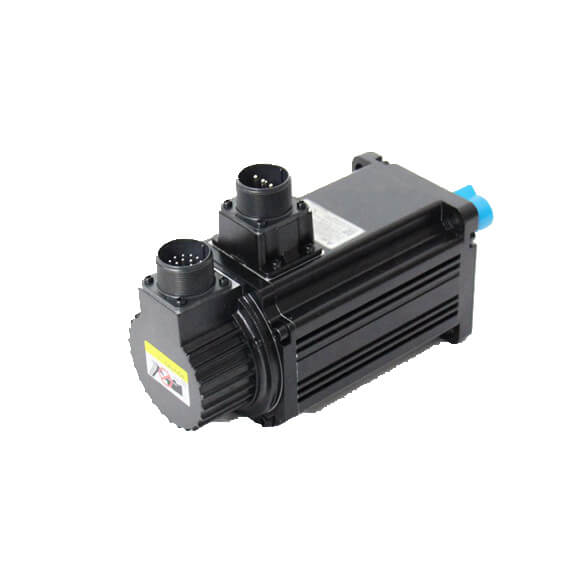

Delta ECMA Series Servo Motor 400W ECMA-C20604RS
We are First Class Delta Servomotors dealer and Delta Servomotors distributor in China.
We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
100% Original and new,In stock by Delta Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Delta ASD Servo Drive	ASD-B2-0421-B
Low inertia Servo Motor	ECMA-C20604□S ECMA-CM0604PS ECMA-C20804□7
Break	Without Brake						With Brake
Cable	3M		5M				3M			5M
Motor Power Cable	Motor Power Cable ASDBCAPW0203		Motor Power Cable ASDBCAPW0205				Motor Power Cable ASDBCAPW0303			Motor Power Cable ASDBCAPW0305
Encoder Cable	Encoder Cable ASDBCAEN0003		Encoder Cable ASDBCAEN0005				Encoder Cable ASDBCAEN0003			Encoder Cable ASDBCAEN0005
Power Connector	Power Connector ASDBCAPW0000						Power Connector ASDBCAPW0100
Power Connector	Encoder Connector ASDBCAEN0000
ECMA Series	C204	C206			C208			C209			C210
Delta Low Inertia Servo Motors	01	02		04	04	07		07	10		10	20
Rated output power (kW)	0.1	0.2		0.4	0.4	0.75		0.75	1.0		1.0	2.0
Rated torque (N-m) *1	0.32	0.64		1.27	1.27	2.39		2.38	3.18		3.18	6.37
Maximum torque (N-m)	0.96	1.92		3.82	3.82	7.16		7.14	8.78		9.54	19.11
Rated speed (r/min)	3000
Maximum speed (r/min)	5000							3000			5000
Rated current (A)	0.90	1.55		2.60	2.60	5.10		3.66	4.25		7.30	12.05
Maximum current (A)	2.70	4.65		7.80	7.74	15.3		11	12.37		21.9	36.15
Power rating (kW/s) (without brake)	27.7	22.4		57.6	22.1	48.4		29.6	38.6		38.1	90.6
Rotor moment of inertia (× 10-4kg.m2) (withoutbrake)	0.037	0.177		0.277	0.68	1.13		1.93	2.62		2.65	4.45
Mechanical time constant(ms) (without brake)	0.75	0.80		0.53	0.73	0.62		1.72	1.20		0.74	0.61
Torque constant-KT(N-m/A)	0.36	0.41		0.49	0.49	0.47		0.65	0.75		0.43	0.53
Voltage constant-KE(mV/(r/min))	13.6	16.0		17.4	18.5	17.2		27.5	24.2		16.8	19.2
Armature resistance(Ohm)	9.30	2.79		1.55	0.93	0.42		1.34	0.897		0.20	0.13
Armature inductance (mH)	24.0	12.07		6.71	7.39	3.53		7.55	5.7		1.81	1.50
Electrical time constant(ms)	2.58	4.30		4.30	7.96	8.36		5.66	6.35		9.30	11.4
Insulation class	Class A (UL), Class B (CE)
Insulation resistance	>100MW, DC 500V
Insulation strength	1500V AC, 60 seconds
Weight (kg) (withoutbrake)	0.5	1.2		1.6	2.1	3.0		2.9	3.8		4.3	6.2
Weight (kg) (with brake)	0.8	1.5		2.0	2.9	3.8		3.69	5.5		4.7	7.2
Max. radial shaft load (N)	78.4	196		196	245	245		245	245		490	490
Max. thrust shaft load (N)	39.2	68		68	98	98		98	98		98	98
Power rating (kW/s) (with brake)	25.6	21.3		53.8	22.1	48.4		29.3	37.9		30.4	82.0
Rotor moment of inertia(× 10-4kg.m2) (with brake)	0.04	0.192		0.30	0.73	1.18		1.95	2.67		3.33	4.95
Mechanical time constant(ms) (with brake)	0.81	0.85		0.57	0.78	0.65		1.74	1.22		0.93	0.66
Brake holding torque [Nt-m (min)] *2	0.3	1.3		1.3	2.5	2.5		2.5	2.5		8.0	8.0
