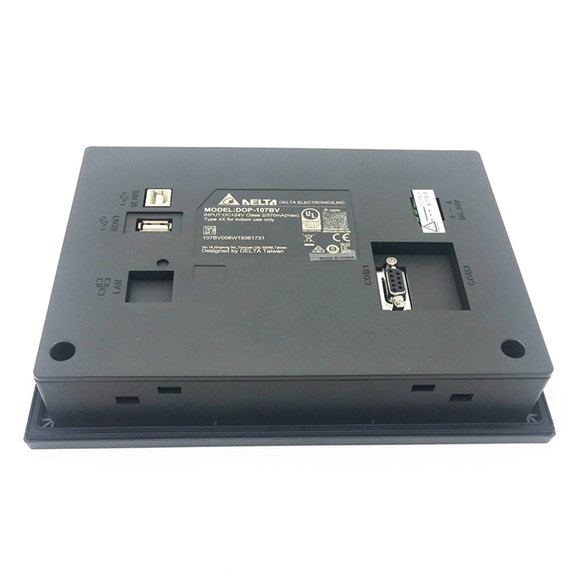

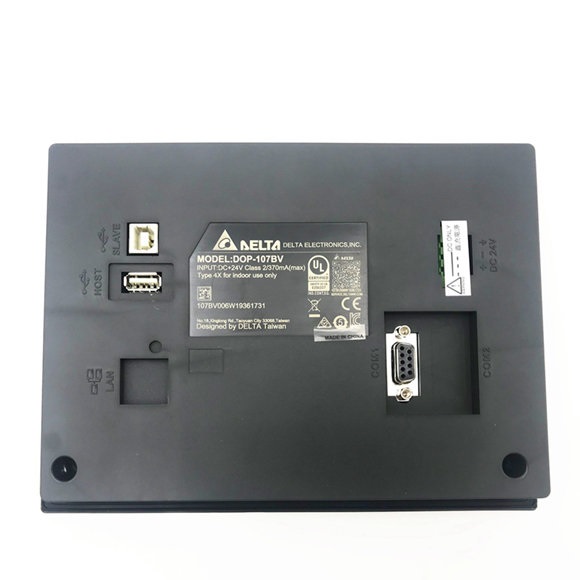

Delta HMI DOP-107BV

Series#: Delta HMI

Product Details

  • 7”(800*480) 65,536 Colors TFT Delta HMI DOP-107BV
  • We are First Class Delta Touch screen HMI dealer and Delta Touch screen HMI dealer distributor in China.
  • We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
  • 100% Original and new,In stock by Delta Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Model DOP-107BV
Display Panel type 7″ TFT LCD (65535 colors)
Resolution 800 x 480 pixels
Backlight LED backlight (half-life under room temperature 25oC > 20,000 hours)*1
Display range 154.08 mm * 85.92 mm
Brightness 400 cd / m² (Typ.)
CPU ARM Cortex-A8 (800 MHz)
Flash ROM 256 Mbytes
RAM 256 Mbytes
Touchscreen 4-wire resistive touchscreen > 1,000,000 operated
Buzzer Multi-tone frequency (2 K – 4 KHz) / 80 dB
Network interface N/A
USB 1 USB Slave Ver 2.0; 1 USB Host Ver 2.0
SD N/A
Serial communication port COM1 RS-232 (supporting flow control) / RS-485*2
COM2 RS-422 / RS-485*2
COM3 N/A
Auxiliary function key N/A
Calendar Built-in
Cooling method Natural cooling
Approvals CE / UL (please use shielding network cable and magnetic ring with the filter of 300 ohm / 100 MHz)
Panel waterproof level IP65 / NEMA4 / UL TYPE 4X (indoor use only)
Operation voltage*2 DC +24V (-15% to +15%) (please use an isolated power supply) Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation)
Leakage current 500 VAC for 1 minute (between DC24V terminal and FG terminal)
Power consumption*2 8.6 W (Max)*3
Backup battery 3V lithium battery CR2032 × 1
Backup battery life About 3 years or more at 25oC

(subject to operation temperature and condition)

Operation temperature 0oC to 50oC (32oF to 122oF)
Storage temperature -20oC to +60oC (-4oF to 140oF)
Operating environment 10% – 90% RH [0oC – 40oC], 10% – 55% RH [41oC – 50oC];

pollution degree: 2

Vibration resistance Conforms to IEC61131-2: continuous vibration 5 Hz – 8.3 Hz with amplitude 3.5 mm; 8.3 Hz – 150 Hz with amplitude 1G
Shock resistance Conforms to IEC60068-2-27:

11 ms, 15 G Peak, in X, Y, Z directions each for 6 times

Dimension

(W) x (H) x (D) mm

215 x 161 x 35.5
Mounting dimension

(W) x (H) mm

196.9 x 142.9
Weight Approx. 700 g
