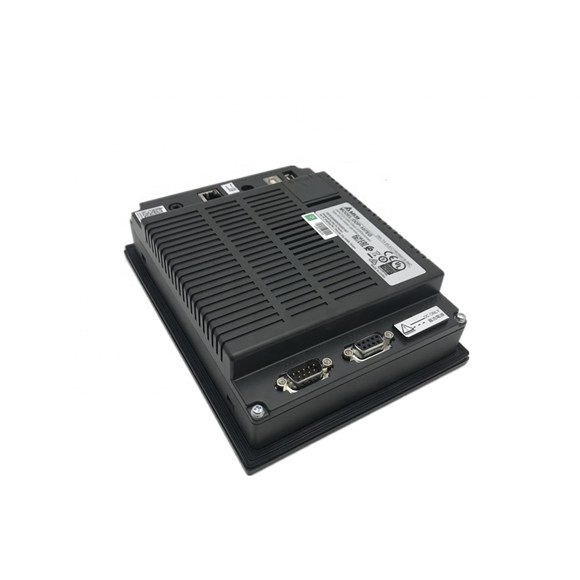

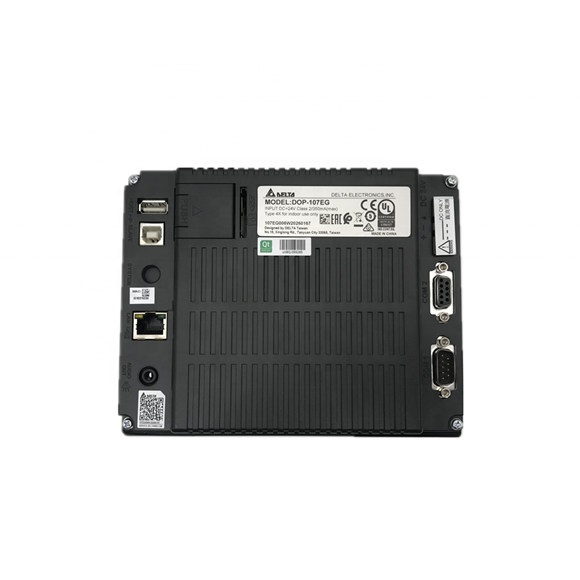

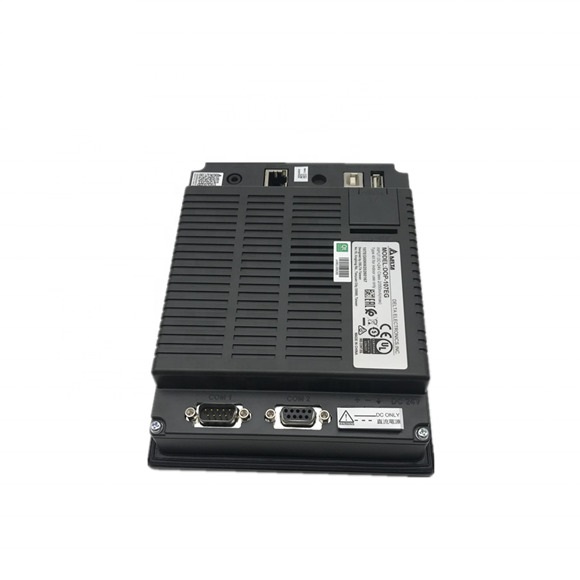

Model | DOP-107EG |

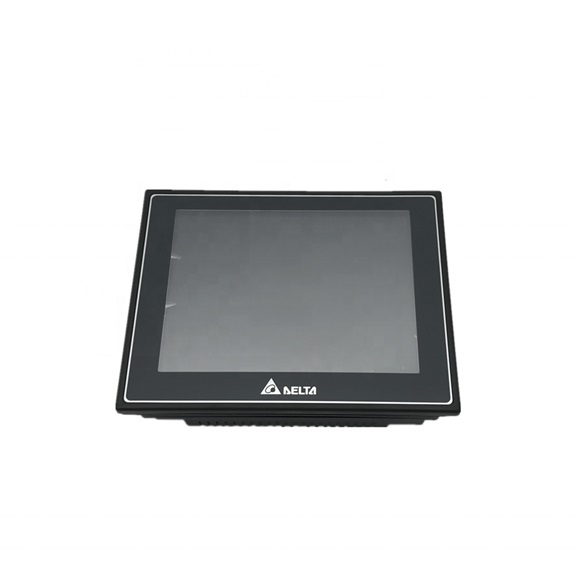

Display Panel type | 7″ TFT LCD (65535 colors) |
Resolution | 800 x 600 pixels |
Backlight | LED backlight (half-life under room temperature 25oC > 20,000 hours) *1 |
Display range | 141.00 x 105.75 mm |
Brightness | 450 cd/m² (Typ.) |
CPU | ARM Cortex-A8 (800 MHz) |
Flash ROM | 256 Mbytes |
RAM | 256 Mbytes |
Touchscreen | 4-wire resistive touchscreen > 10,000,000 operated |
Sound Effect Output Buzzer | Multi-tone frequency (2 K – 4 KHz) / 80 dB |
AUX | Stereo output |
Network interface | 10/100 Mbps Auto sensing (with built-in isolated power circuit)
*2 |

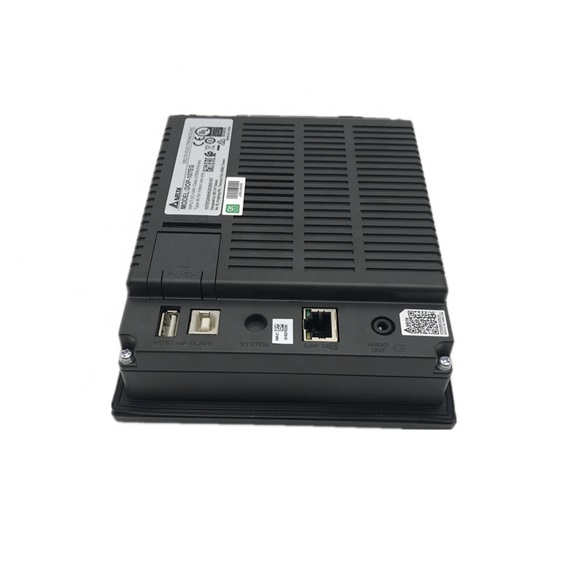

USB | 1 USB slave Ver 2.0; 1 USB host Ver 2.0 |
SD | SD * 1 |
Serial communication port
COM1 |
RS-232 (supporting flow control) *2 |
COM2 | RS-232 (supporting flow control) / RS-485*2 |
COM3 | RS-422 / RS-485*2 |
Auxiliary function key | N/A |
Calendar | Built-in |
Cooling method | Natural cooling |
Approvals | CE / UL (please use shielding network cable and magnetic ring with the filter of 300 ohm / 100 MHz) |
Panel waterproof level | IP65 / NEMA4 / UL TYPE 4X (indoor use only) |
Operation voltage*2 |
DC +24 V (-15% to +15%) (please use an isolated power supply)
Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) |
Leakage current | 500 VAC for 1 minute (between DC24V terminal and FG
terminal) |
Power consumption*2 | 8.4 W (Max)*3 |
Backup battery | 3V lithium battery CR2032 × 1 |
Backup battery life | About 3 years or more at 25oC
(subject to operation temperature and condition) |
Operation temperature | 0oC to 50oC (32oF to 122oF) |
Storage temperature | -20oC to +60oC (-4oF to 140oF) |
Operating environment |
10% to 90% RH [0oC to 40oC], 10% to 55% RH [41oC to
50oC]; pollution degree: 2 |
Vibration resistance |
Conforms to IEC61131-2: continuous vibration 5 Hz – 8.3
Hz with amplitude 3.5 mm; 8.3 Hz – 150 Hz with amplitude 1G |
Shock resistance | Conforms to IEC60068-2-27: 11 ms, 15 G Peak, in X, Y, Z directions each for 6 times |
Dimension
(W) x (H) x (D) mm |
184 x 144 x 51.5 |
Mounting dimension
(W) x (H) mm |
172.4 x 132.4 |
Weight | Approx. 800 g |
