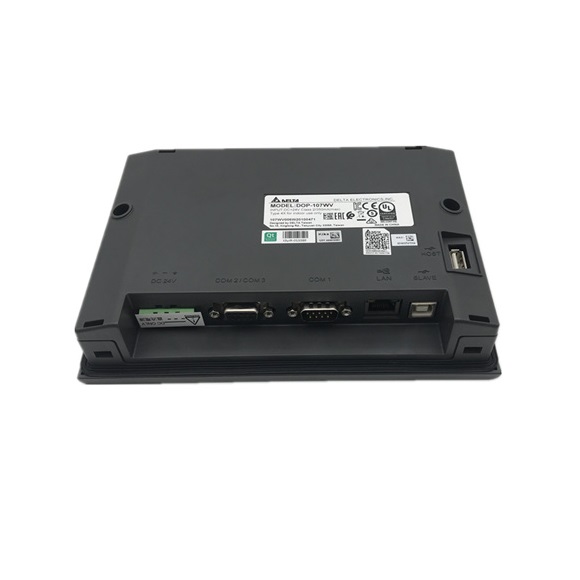

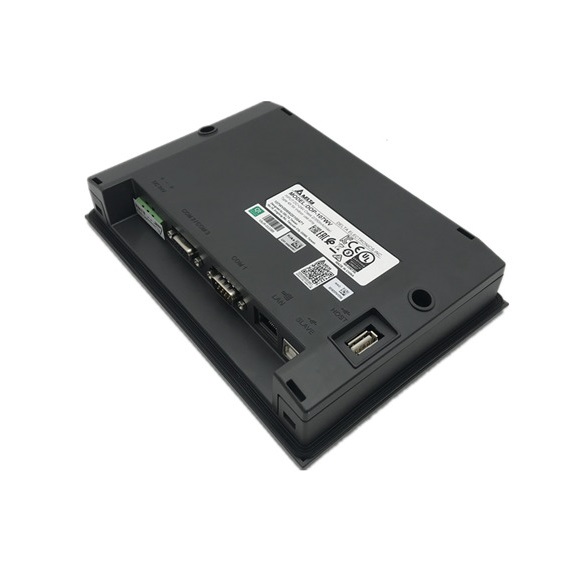

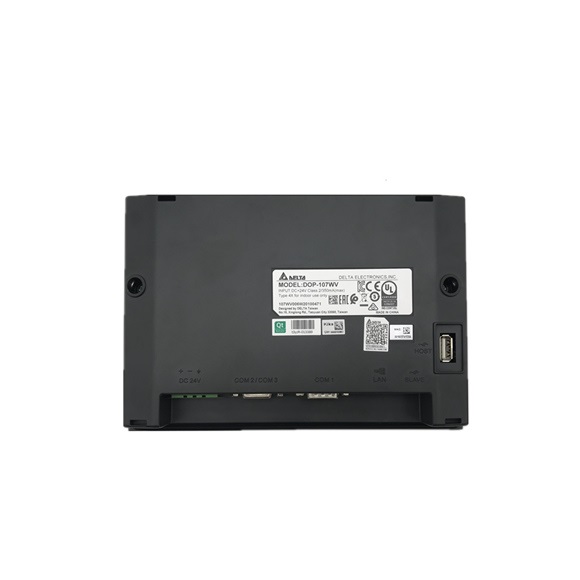

Delta HMI DOP-107WV

Series#: Delta HMI

Product Details

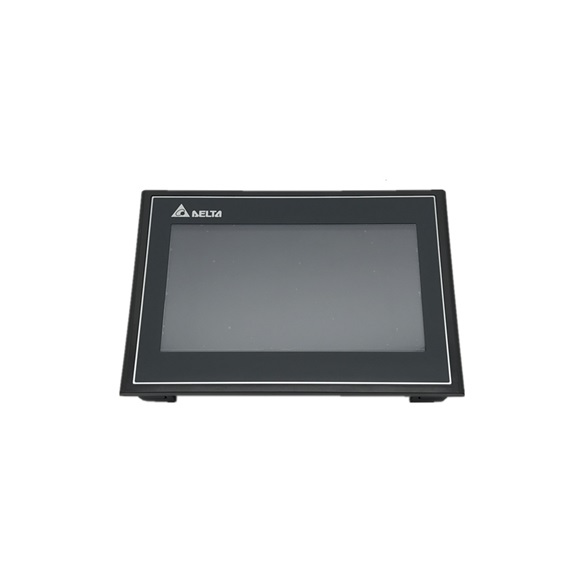

  •  7” (800 * 480) 65,536 Colors TFT Delta Touch Screen HMI DOP-107WV
  • We are First Class Delta Touch screen HMI dealer and Delta Touch screen HMI dealer distributor in China.
  • We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
  • 100% Original and new,In stock by Delta Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Model DOP-103WQ DOP-107WV DOP-110WS
Flash ROM 256 Mbytes
RAM 512 Mbytes
Touch Screen 4-wire resistive touch screen

> 10,000,000 operated

Buzzer Multi-Tone Frequency (2 K ~ 4 K Hz)/80 dB


Ethernet Interface



10/100 Mbps Auto sensing (with built-in isolated power circuit (Note 2))

USB 1 USB Slave Ver 2.0

1 USB Host Ver 2.0

SD N/A SD * 1
Serial Communication Port COM1 RS-232 (supports flow control) / RS-485(Note 2)) RS-232 (supports flow control) (Note 2))
COM2

RS-422 / RS-485(Note 2)



RS-232 (supports flow control) / RS-485(Note 2))



COM3

N/A RS-422 / RS-485(Note 2))
Function Keys N/A
Perpetual Calendar Built-in
Cooling Method Natural cooling
Safety Approval CE / UL (Please use shielding Ethernet cable and the magnetic ring with filter of 300 ohm/100 MHz)
Waterproof Level of Panel Display IP65(Not be evaluated by UL)/NEMA4/ Type 4X indoor use only
Operation Voltage (Note2) +24 VDC (-15% ~ +15%) (with built-in isolated power supply unit) Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation)
Voltage Endurance 500 VAC for 1 minute (between charging (DC24V terminal) and FG terminals)
Power Consumption (Note 2) 5.8W (Max) (Note 3) 8.4W (Max) (Note 3) 11W (Max) (Note 3)
Backup Battery 3V lithium battery CR2032 × 1
Backup Battery Life About 3 years or more at 25oC but subjects to the temperature and the conditions during usage.
Operation Temperature 0oC ~ 50oC
Storage Temperature -20oC ~ +60oC
Operating Environment 10% ~ 90% RH [0 ~ 40oC], 10% ~ 55% RH [41 ~ 50oC]; Pollution degree: 2
Vibration Resistance Conforms to IEC61131-2; Continuous: 5 Hz ~ 8.3 Hz 3.5 mm, 8.3 Hz ~ 150 Hz 1 G
Shock Resistance Conforms to IEC60068-2-27: 11 ms, 15 G Peak , X, Y, Z direction for 6 times
Dimension

(W) x (H) x (D) mm



137 x 103 x 37.1



196 x 136 x 39



270 x 180.9 x 47.25

Dimension for Installation

(W) x (H) mm



118.8 x 92.8



186.8 x 126.8



255 x 170

Weight Approx.280g Approx. 560 g Approx. 1.1 Kgs
