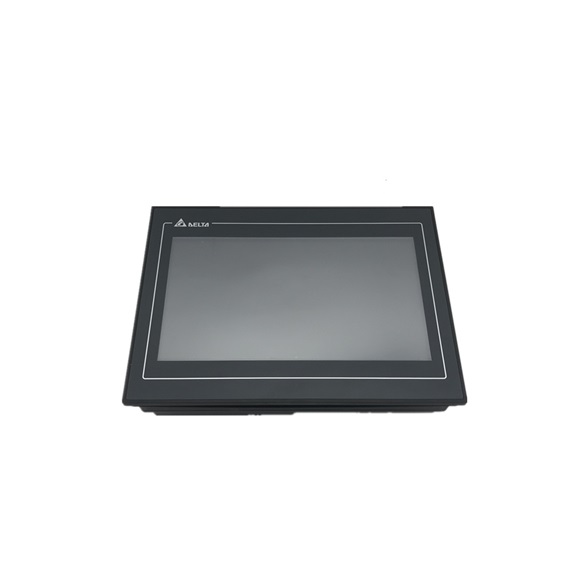

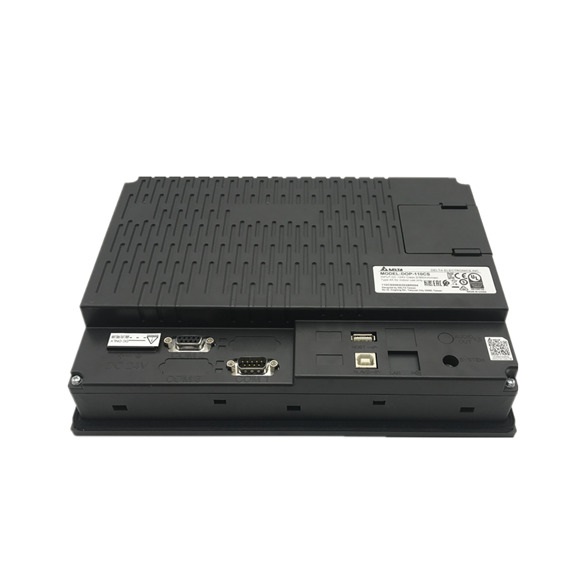

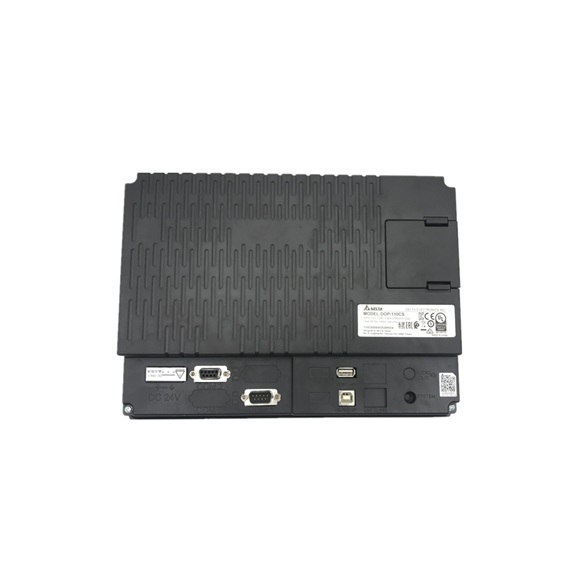

10.1” Delta Touch Screen HMI DOP-110CS

Series#: Delta HMI

Product Details

  • 10.1”(1024*600) 65,536 Colors TFT Delta Touch Screen HMI DOP-110CS
  • We are First Class Delta Touch screen HMI dealer and Delta Touch screen HMI dealer distributor in China.
  • We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
  • 100% Original and new,In stock by Delta Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Model DOP-110CS
Display Panel type 10.1″ TFT LCD (65535 colors)
Resolution 1024 x 600 pixels
Backlight LED Back Light

(half-life under room temperature 25oC > 20,000 hours)*1

Display range 226 mm x 128.7 mm
 Brightness 300 cd / m² (Typ.)
CPU ARM Cortex-A8 (800 MHz)
Flash ROM 256 Mbytes
RAM 256 Mbytes
Touchscreen 4-wire resistive touchscreen > 1,000,000 operated
Buzzer Multi-tone Frequency (2K – 4K Hz) / 80dB
Network interface N/A
USB 1 USB Slave Ver. 2.0; 1 USB Host Ver. 2.0
SD N/A
Serial communication port

COM1

RS-232 (supporting flow control)*2
COM2 RS-232 (supporting flow control) / RS485*2
COM3 RS-422 / RS-485*2
Auxiliary function key N/A
Calendar Built-in
Cooling method Natural cooling
Approvals CE / UL (please use shielding network cable and magnetic ring with the filter of 300 ohm / 100 MHz)
Panel waterproof level IP65 / NEMA4 / UL TYPE 4X (indoor use only)
Operation voltage*2 DC +24V (-15% to +15%) (please use an isolated power supply)

Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation)

Leakage current 500 VAC for 1 minute (between DC24V terminal and FG terminal)
Power consumption*2 10.4 W (Max) *3
Backup battery 3V lithium battery CR2032 × 1
Backup battery life About 3 years or more at 25oC

(subject to operation temperature and condition)

Operation temperature 0oC to 50oC (32oF to 122oF)
Storage temperature -20oC to +60oC (-4oF to 140oF)
Operating environment 10% to 90% RH [0oC – 40oC], 10% to 55% RH [41oC – 50oC];

pollution degree: 2

Vibration resistance Conforms to IEC61131-2: continuous vibration 5 Hz – 8.3 Hz with amplitude 3.5 mm; 8.3 Hz – 150 Hz with amplitude 1G
Shock resistance Conforms to IEC60068-2-27:

11 ms, 15 G Peak, in X, Y, Z directions each for 6 times

Dimension

(W) x (H) x (D) mm

272 x 200 x 61
Mounting dimension

(W) x (H) mm

261.3 x 189.3
Weight Approx. 1330 g
