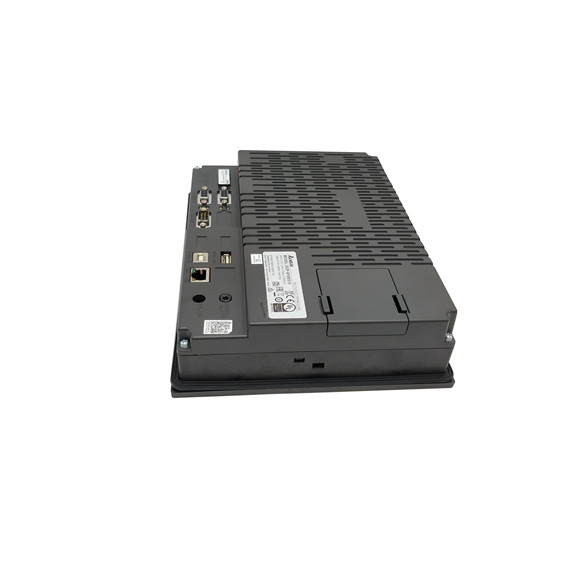

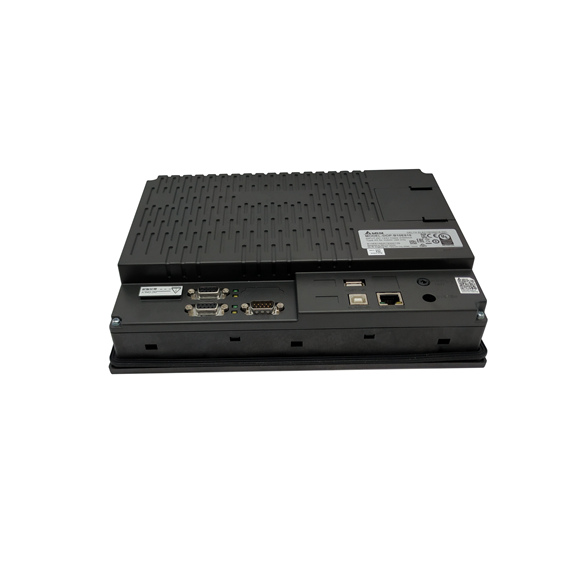

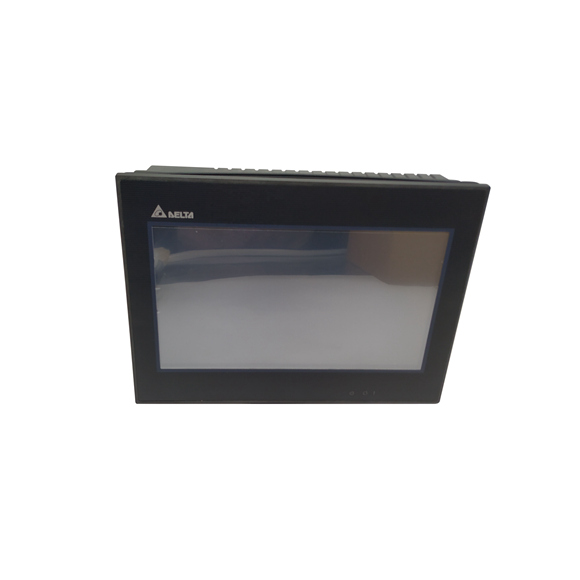

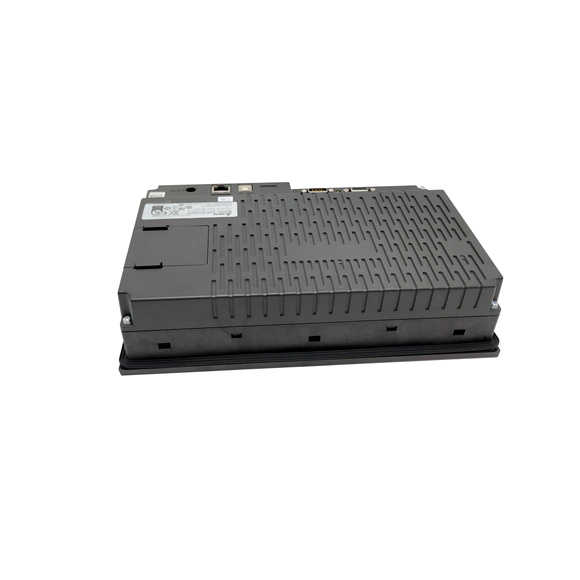

10.4 inch Delta Touch Screen HMI DOP-B10E515

Series#: Delta HMI

Product Details

  • 10.4-inch (800 x 600 pixels) TFT LCD 65536 colors
  • We are First Class Delta Touch screen HMI dealer and Delta Touch screen HMI dealer distributor in China.
  • We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
  • 100% Original and new,In stock by Delta Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Model Name DOP-B10S411 DOP-B10S511 DOP-B10E515
LCD MODULE



Display Type

10.1” Widescreen TFT LCD

(65536 colors)

10.4” TFT LCD

(65536 colors)

10.4” TFT LCD

(65536 colors)



Resolution

800 x 480 pixels 800 x 600 pixels 800 x 600 pixels


Backlight

LED Back Light (less than 20,000 hours half-life at 25oC) (Note 1)


Display Size

219.6 x 131.76mm 211.2 x 158.4mm 211.2 x 158.4mm
Operation System Delta Real Time OS
MCU 32-bit RISC Micro-controller
Flash ROM Flash ROM 128 MB

(OS System: 30MB / Backup: 16MB / User Application: 82MB)

SDRAM 64Mbytes
Backup Memory 32Kbytes
Audio Output

Buzzer

Multi-Tone Frequency (2K ~ 4K Hz) / 85dB


AUX

N/A Stereo Output




Ethernet Interface

N/A IEEE 802.3, IEEE 802.3u


N/A

10/100 Mbps auto-sensing (has

built-in isolated power circuit (Note 3) )

Memory Card N/A SD Card (supports SDHC)
USB 1 USB Slave Ver 2.0

1 USB Host (Note 2) Ver 1.1







Serial COM

Port

COM1

RS-232 (supports hardware flow control)




COM2



RS-232/485



RS-232/485

RS-232/422/485

(has built-in isolated power circuit (Note 3) )





COM3



RS-232/422/485



RS-232/422/485

RS-232/422/485

(has built-in isolated power circuit (Note 3) )

Perpetual Calendar (RTC) Built-in
Cooling Method Natural air circulation
Safety Approval UL (Note 4) / CE (Note 4)
Waterproof Degree IP65
Operation Voltage

(Note3)

DC +24V (-10% ~ +15%)
Voltage Endurance AC500V for 1 minute

(between charging (DC24V terminal) and FG terminals)

Power Consumption

(Note 3)

6.6W 6.1W 9.6W
Backup Battery 3V lithium battery CR2032 × 1
Backup Battery Life It depends on the temperature used and the conditions of usage,

about 3 years or more at 25oC.

Operation Temperature o o

0 C ~ 50 C

Storage Temperature o o

-20 C ~ +60 C

Ambient Humidity o o

10% ~ 90% RH [0 ~ 40 C], 10% ~ 55% RH [41 ~ 50 C]

Pollution Degree 2

Vibration IEC 61131-2 compliant 5Hz≦f<8.3Hz = Continuous: 3.5mm, 8.3Hz≦f

≦150Hz = Continuous: 1.0g

Shock IEC 60068-2-27 compliant 15g peak for 11 ms duration, X, Y, Z directions for 6 times
Dimensions

(W) x (H) x (D) mm

272 x 200 x 61 299 x 224 x 46.8 299 x 224 x 46.8
Panel Cutout

(W) x (H) mm

261.3 X 189.3 285.2 x 210.2 285.2 x 210.2
Weight Approx. 1520g Approx. 1735g Approx. 1600g
