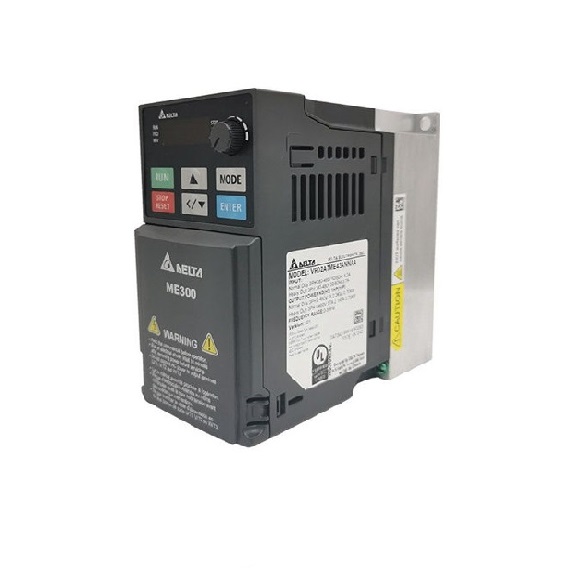

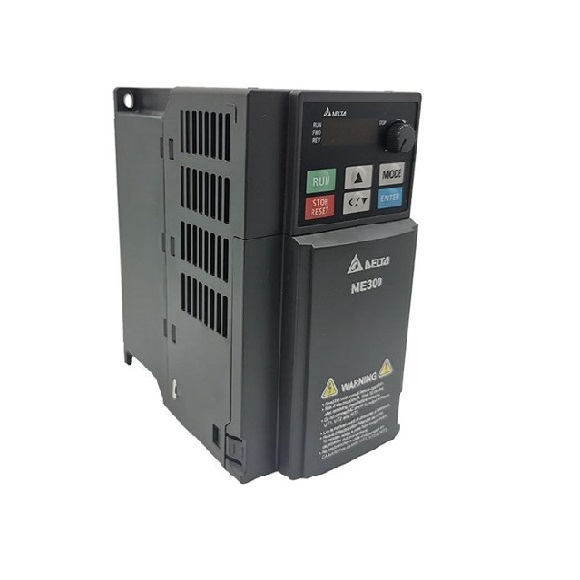

Delta Inverters ME300 Series 5.5KW VFD13AME43ANNAA

Series#: Delta VFD

Product Details

  • Delta Inverters ME300 Series 5.5KW VFD13AME43ANNAA
  • Supports IM / IPM /SPM motors and VF / SVC control
  • We are First Class Delta Inverter VFDs dealer and Delta Inverter VFDs distributor in China.
  • We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
  • 100% Original and new,In stock by Delta Electric.
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Delta Inverters ME300 Series Models without built-in EMC filter
Frame A C
Applicable Motor Output (kW) 0.1 0.2 0.4 0.75
Applicable Motor Output (HP) 1/8 1/4 1/2 1
Inverter Output Heavy Duty

Rated Output Current (A)

0.8 1.6 2.5 4.8
Normal Duty

Rated Output Current (A)

1.0 1.8 2.7 5.5
Input Voltage / Frequency Single-phase AC, 100V~120V (-15% ~ + 10%), 50 / 60Hz
Carrier Frequency (kHz) 2 ~ 15 (Default 4)
Brake Chopper Built-in
Cooling Method Natural air cooling Fan cooling
Size: W × H (mm) 68 × 128 87 × 157
Size: D (mm) 78 107 136
Frame B C
Applicable Motor Output (kW) 0.1 0.2 0.4 0.75 1.5 2.2
Applicable Motor Output (HP) 1/8 1/4 1/2 1 2 3
Inverter Output Heavy Duty

Rated Output Current (A)

0.8 1.6 2.8 4.8 7.5 11
Normal Duty

Rated Output Current (A)

1.0 1.8 3.2 5 8.5 12.5
Input Voltage / Frequency Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz
Carrier Frequency (kHz) 2 ~ 15 (Default 4)
Brake Chopper Built-in
Cooling Method Natural air cooling Fan cooling
Size: W x H (mm) 72 x 142 87 x 157
Size: D (mm) 143 163
Frame A1 B C D
Applicable Motor Output (kW) 0.1 0.2 0.4 0.75 1.5 2.2 3.7 5.5
Applicable Motor Output (HP) 1/8 1/4 1/2 1 2 3 5 7.5
Inverter Output Heavy Duty

Rated Output Current (A)

0.8 1.6 2.8 4.8 7.5 11 17 25
Normal Duty

Rated Output Current (A)

1.0 1.8 3.2 5.0 8.0 12.5 19.5 27
Input Voltage / Frequency Three-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz
Carrier Frequency (kHz) 2 ~ 15 (Default 4)
Brake Chopper Built-in
Cooling Method Natural air cooling Fan cooling
Size: W × H (mm) 68 × 128 72 × 142 87 × 157
Size: D (mm) 78 92 125 127 136 138
Frame B3 C2 D2
Applicable Motor Output (kW) 0.4 0.75 1.5 2.2 3.7 5.5 7.5
Applicable Motor Output (HP) 1/2 1 2 3 5 7.5 10
Heavy Duty

Rated Output Current (A)

1.5 2.7 4.2 5.5 9 13 17
Normal Duty

Rated Output Current (A)

1.8 3 4.6 6.5 10.5 15.7 20.5
Input Voltage / Frequency Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz
Carrier Frequency (kHz) 2 ~ 15 (Default 4)
Brake Chopper Built-in
Cooling Method Fan cooling
Size: W × H (mm) 72 × 142 87 × 157 109 × 207
Size: D (mm) 143 163 171
