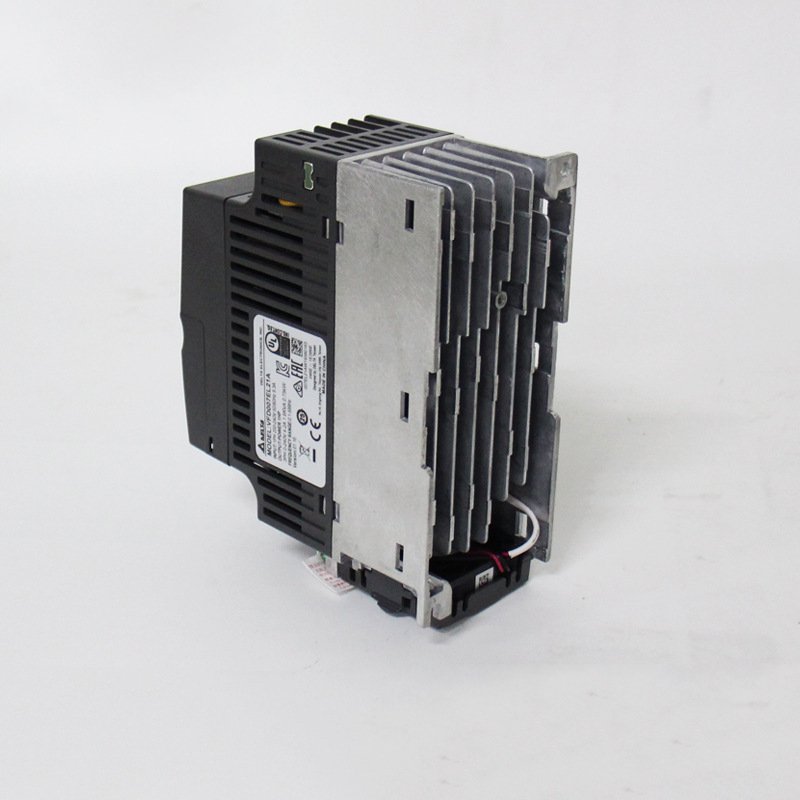

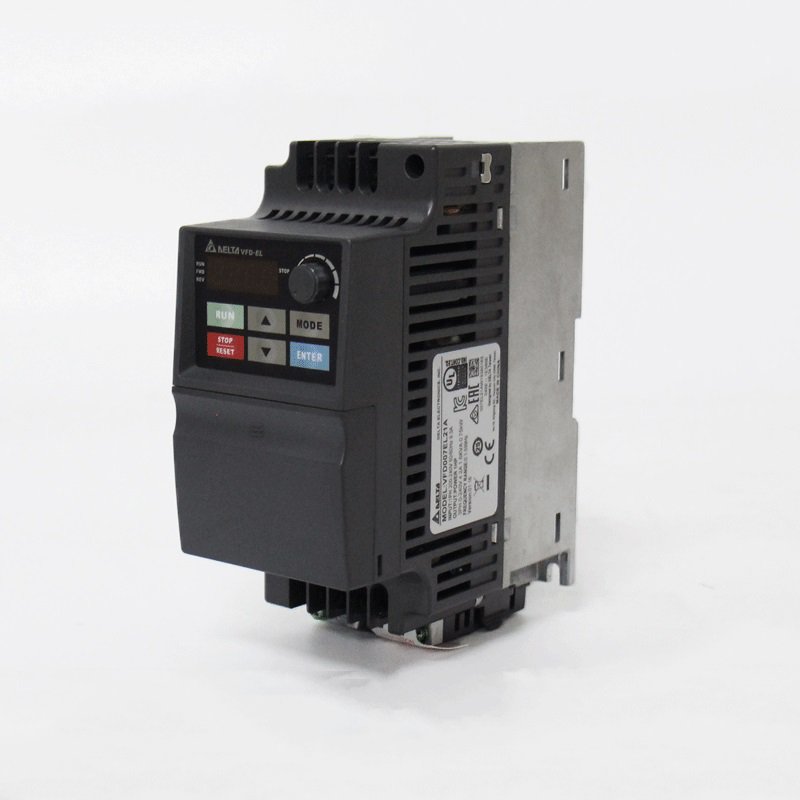

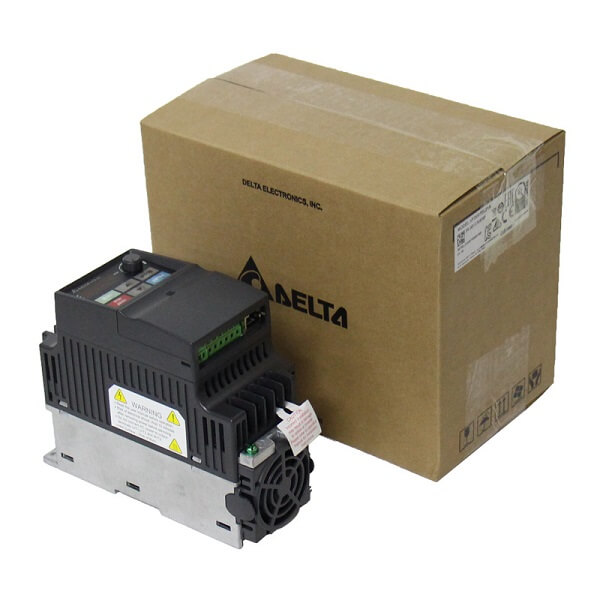

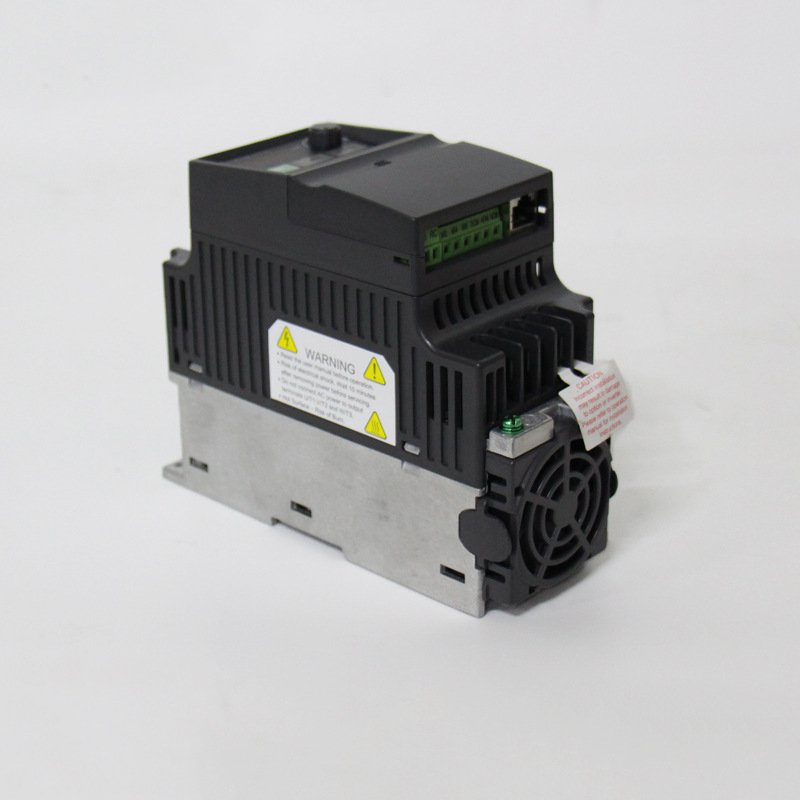

Delta Inverters VFD-EL 2.2KW VFD022EL21A 220V

Series#: Delta VFD

Product Details

  • Delta Inverters VFD-EL 2.2KW VFD022EL21A 220V
  • Output frequency: 0.1~600Hz
  • 3 points adjustable V/f curve
  • Built-in PID feedback control
  • RFI-switch for IT mains
  • Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
  • Use RS-485 communication interface (RJ-45) with Modbus protocol
  • Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
  • Complete protection function
Qty:

Specification



Specifications Delta VFD-EL Inverters
115V Voltage Class 115 V
Delta Model Number VFD-  EL 002 004 007
Max. Applicable Motor Output (kW) 0.2 0.4 0.75
Max. Applicable Motor Output (Hp) 0.25 0.5 1.0
Rated Output Capacity (kVA) 0.6 1.0 1.6
Rated Output Current (A) 1.6 2.5 4.2
Maximum Output Voltage (V) 3-phase proportional to twice the input voltage
Output Frequency (Hz) 0.1 ~ 599 Hz
Carrier Frequency (kHz) 2-12
Rated Input Current (A) Single-phase
Rated Input Current (A) 6.4 9 18
Rated Voltage/Frequency Single-phase 100-120 V, 50 / 60 Hz
Voltage Tolerance ±10% (90-132 V)
Frequency Tolerance ±5% (47-63 Hz)
Cooling Method Natural cooling Fan cooling
Weight (kg) 1.1 1.1 1.4
30V Voltage Class 230 V
Model Number VFD-  EL 002 004 007 015 022 037
Max. Applicable Motor Output (kW) 0.2 0.4 0.75 1.5 2.2 3.7
Max. Applicable Motor Output (Hp) 0.25 0.5 1.0 2.0 3.0 5.0
Cooling Method Natural cooling Fan cooling
Weight (kg) 1.2 1.2 1.2 1.7 1.7 1.7
60V Voltage Class 460 V
Model Number VFD-  EL 004 007 015 022 037
Max. Applicable Motor Output (kW) 0.4 0.75 1.5 2.2 3.7
Max. Applicable Motor Output (hp) 0.5 1.0 2.0 3.0 5.0
Rated Output Capacity (kVA) 1.2 2.0 3.3 4.4 6.8
Rated Output Current (A) 1.5 2.5 4.2 5.5 8.2
Maximum Output Voltage (V) 3-phase proportional to input voltage
Output Frequency (Hz) 0.1 ~ 599 Hz
Carrier Frequency (kHz) 2-12
Cooling Method Natural cooling Fan cooling
Weight (kg) 1.2 1.2 1.2 1.7 1.7
Control System SPWM (Sinusoidal Pulse Width Modulation) control (V/F control)
Frequency Setting Resolution 0.01 Hz
Output Frequency Resolution 0.01 Hz
Torque Characteristics Including the auto-torque/auto-slip compensation; starting torque can be 150% at 5.0Hz
Overload Endurance 150% of rated current for 1 minute
Skip Frequency Three zones, setting range 0.1 – 599 Hz
Accel/Decel Time 0.1 to 600 seconds (2 Independent settings for Accel/Decel time)
Stall Prevention Level Setting 20 to 250% of rated current
DC Braking Operation frequency 0.1 – 599.0 Hz, output 0-100% rated current Start time 0-60 seconds, stop time 0-60 seconds
Regenerated Braking Torque Approx. 20% (up to 125% possible with optional brake resistor)
V/F Pattem Adjustable V/F pattern
Keypad Setting by ▲▼
External Signal Potentiometer 5 k / 0.5 W, 0 to +10 VDC, 4 to 20 mA, RS-485 interface;Multi-function Inputs 3 to 6 (15 steps, Jog, up/down)
Keypad Set by RUN and STOP
External Signal 2 wires / 3 wires (MI1, MI2, MI3), JOG operation, RS-485 serial interface (MODBUS)
Multi-function Input Signal Multi-step selection 0 to 15, Jog, accel / decel inhibit, 2 accel / decel switches,counter, external Base Block, ACI / AVI selections, driver reset,UP / DOWN key settings, NPN / PNP input selection
Multi-function Output Indication AC drive operating, frequency attained, counter attained, zero speed, Base Block, fault indication, overheat alarm, emergency stop and status selections of input terminals
Analog Output Signal Output frequency / current
Alarm Output Contact Contact will be ON when drive malfunctions(1 Form C / change-over contact or 1 open collector output)
  Operation Functions AVR, accel / decel S-Curve, overvoltage / overcurrent stall prevention, 5 fault records, reverse inhibition, momentary power loss restart, DC braking, auto torque / slip compensation,adjustable carrier frequency, output frequency limits, parameter lock / reset, PID control, external counter, MODBUS communication, abnormal reset, abnormal re-start, power-saving, fan control, sleep/wake frequency, 1st / 2nd frequency source selections,1st / 2nd frequency source combination, NPN / PNP selection
Protection Functions Over voltage, over current, under voltage, external fault, overload, ground fault,overheating, electronic thermal, IGBT short circuit, PTC
Display Keypad 6-key, 7-segment LED with 4-digit, 4 status LEDs, master frequency, output frequency, output current, custom units, parameter values for setup and lock, faults, RUN, STOP, RESET, FWD / REV
Built-in EMC Filter For 230 V 1-phase and 460 V 3-phase models
Enclosure Rating IP20
Pollution Degree 2
Installation Location Altitude 1,000 m or lower, keep from corrosive gasses, liquid and dust
Ambient Temperature -10 oC to + 50 oC (40 oC for side-by-side mounting) Non-Condensing and not frozen
Storage/Transportation Temperature -20 oC to 60 oC
Ambient Humidity Below 90% RH (non-condensing)
Vibration 9.80665 m/s2 (1G) less than 20 Hz, 5.88 m/s (0.6 G) at 20 to 50 Hz
