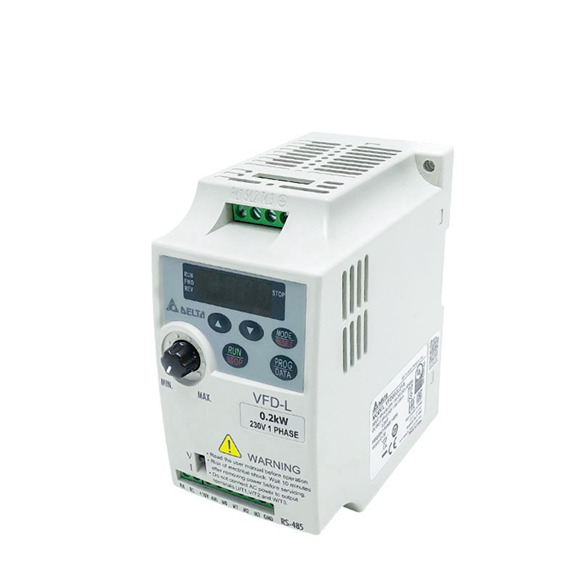

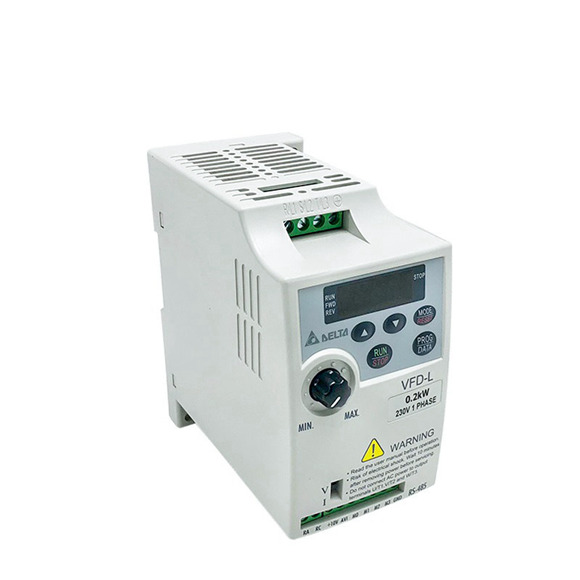

Delta Inverters VFD-L Series 0.4KW VFD004L21A

Series#: Delta VFD

Product Details

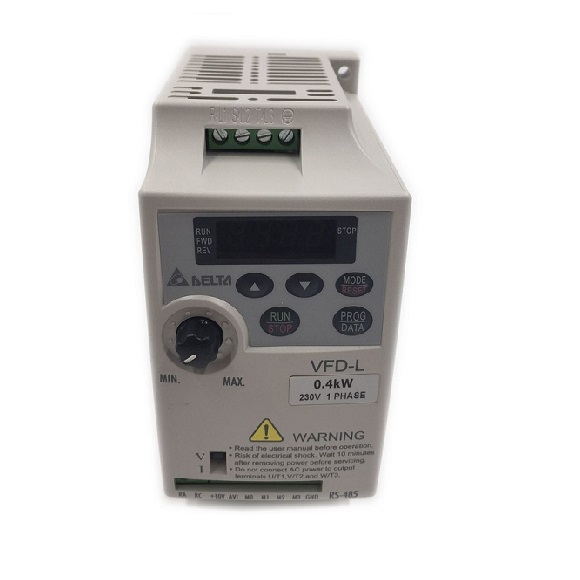

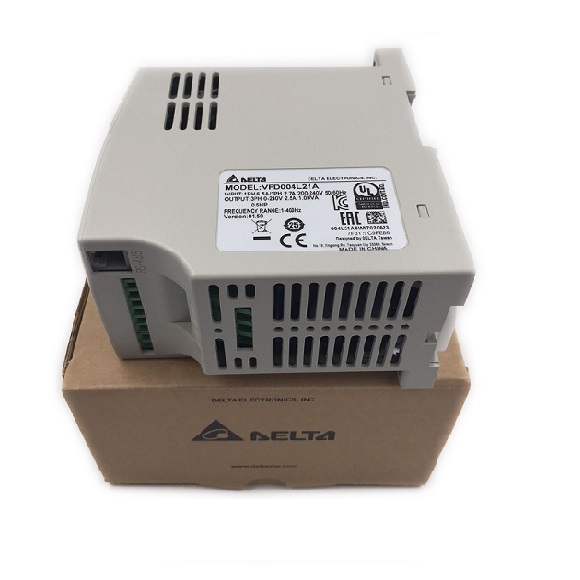

Delta Inverters VFD-L Series 0.4KW VFD004L21A
We are First Class Delta Inverter VFDs dealer and Delta Inverter VFDs distributor in China.
We can Supply Delta electric automation parts,such as Delta PLC,Delta Servo Motor,Delta HMI,Delta VFD and So on,
100% Original and new,In stock by Delta Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Specifications	Delta Inverters VFD-L Series		Delta Inverters VFD-L Series
Voltage Class	115V		230V
Model Number VFD- L A/B		004	002	004	007	015
Applicable Motor Output (kW)		0.4	0.2	0.4	0.7	1.5
Rated Output Capacity (KVA)	0.6	1.0	0.6	1.0	1.6	2.7
Rated Output Current (A)	1.6	2.5	1.6	2.5	4.2	7.0
Max. Output Voltage (V)	3-phase corresponds to double input voltage		Three-phase corresponds to input voltage
Rated Frequency (Hz)	1.0~400Hz
Rated Input Current (A)	6	9	4.9/1.9	6.5/2.7	9.7/5.1	*/9
Input voltage Tolerance	Single phase 90~132V 50/60Hz		Single / 3-phase 180~264V 50/60Hz			3-phase 180~264V50/60Hz
Frequency tolerance	±5%
Control system	SVPWM (Sinusoidal Pulse Width Modulation, carried frequency 3kHz~10kHz)
Output Frequency Resolution	0.1Hz
Torque Characteristics	Including the auto-torque, auto-slip compensation, starting torque can be 150% at 5 Hz
Overload Endurance	150% of rated current for 1 minute
Accel/Decel Time	0.1~600Sec. (can be set individually)
V/F pattern	V/F pattern adjustable
Stall Prevention Level	20~200%, setting of Rated Current
Frequency Setting Keypad External Signal	Setting by ▲▼ keys or V.R Potentiometer-5KW/0.5W, DC 0 ~ +10V (input impedance 47KW), 4~20mA (outputimpedance 250W), multi-function inputs1 to 3 (3steps, JOG, UP/DOWN command), communication setting
Operation Setting Keypad	Setting by RUN//STOP keys
Signal External Signal	M0,M1,M2,M3 can be combined to offer various modes of operation, RS-485 communication port
Multi-function Input Signal	Multi-step selection 0 to 3, Jog, accel/decel inhibit, first/second accel/decel switch, counter, PLC Operation, external Base Block (NC,NO) selection
Multi-function Output Signal	AC Drive Operating, Frequency Attained, Non-zero speed, Base Block, Fault Indication, Local/Remote indication, PLC Operation indication.
Other Function	AVR, S-curve, Over-Voltage Stall Prevention, DC Braking, Fault Records, Adjustable Carried Frequency, Starting Frequency Setting of DC Braking ,Over-Current Stall Prevention, Momentary Power Loss restart, Reverse Inhibition, Frequency Limits, Parameter Lock/Reset
Protection	Over Voltage, Over Current, Under Voltage, Overload, Electronic thermal, Overheating, Self-testing
Other	Including EMI Filter
Cooling	Forced air-cooling
Installation Location	Altitude 1,000 m or below, keep from corrosive gasses, liquid and dust
Ambient Temperature	-10℃-40℃ (Non-Condensing and not frozen)
Storage Temperature	-20℃ to 60℃
Ambient Humidity	Below 90%RH (non-condensing)
Vibration	9.80665m/s2(1G) less than 20Hz, 5.88m/s2 (0.6Gat) 20 to 50Hz
