Delta PLC Controller AS Series Standard CPU

Series#: Delta PLC

Product Details

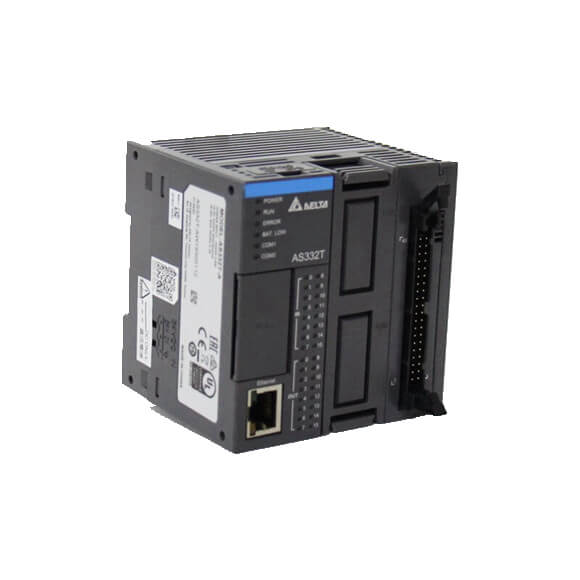

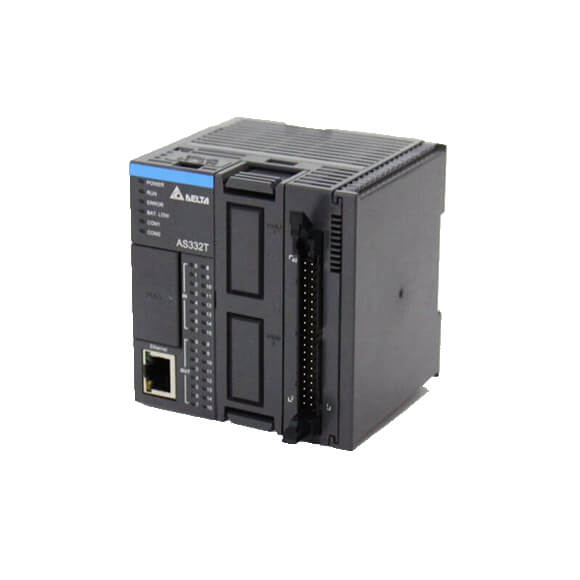

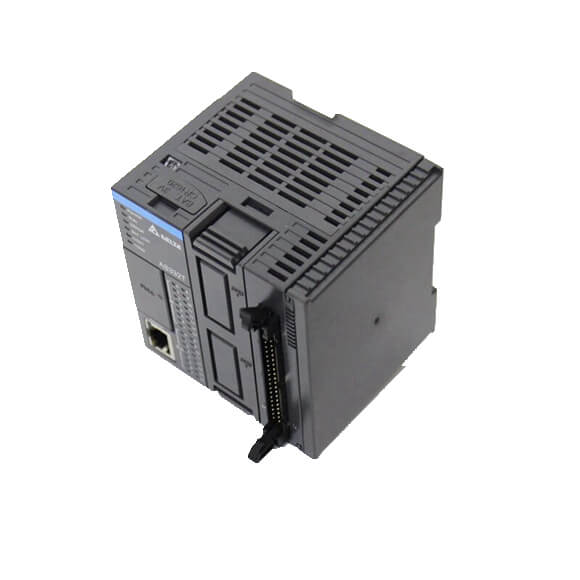

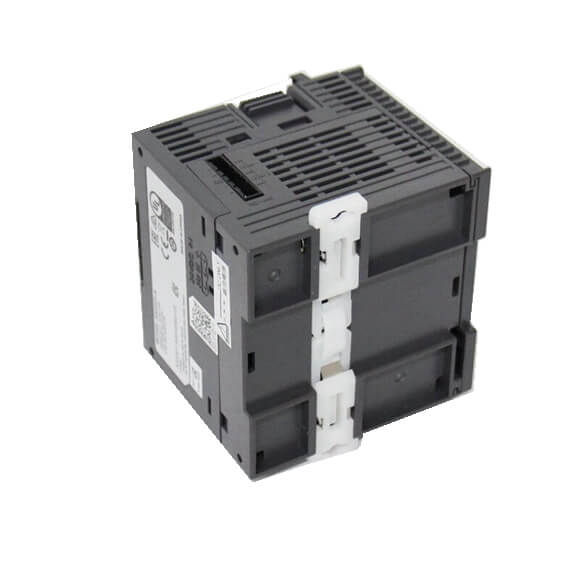

Delta PLC Controller AS Series Standard CPU
We are First Class Delta plc dealer and Delta plc distributor in China.
We can Supply Delta automation parts,such as Delta PLC,Delta Servo Motor&Delta servo Drive,Delta HMI,Delta VFD and ect.
100% Original and new,In stock by Delta Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Delta PLC Controller AS Series Standard CPU	AS332T-A AS332P-A	AS324MT-A	AS320T-B AS320P-B	AS300N-A	AS22 AS22 AS22
Programming Languages	Ladder Diagram (LD), Structured Text (ST), Continuous Function Chart (CFC), Sequential
LD Instruction	25 ns
MOV Instruction	0.15 μs
Elementary Arithmetic for Integer	0.92 μs ~ 1.02 μs
Elementary Arithmetic for Floating Point	1.69 ~ 1.85 μs
Program Capacity	128k steps
Memory Capacity Data (D)	64k words (including 30k user-defined, 30k software configuration and 4k specia
Extension (FR)	64k words (user parameter storage)
Function Card	The CPUs support up to 2 function cards
Max. Extension Modules	32 modules (max. 16 analog modules / 4 communication modules)
Max. Number of Inputs / Outputs	1,024 points (input & output)
CPU Built-in Inputs / Outputs	16DI/16DO	12DI/12DO	8DI/12DO	–	16DI/1
CPU Built-in Differential Inputs / Outputs	–	4 Inputs + 4 Outputs	–
Pulse Output	Open collector: 6 axes, 200kHz	Open collector: 4 axes, 200kHz Differential: 2 axes, 4MHz	Open collector: 6 axes, 200kHz	–	Open colle 6 axes, 200
Built-in Communication Port	USB, Ethernet, RS-485 x2				USB, Ether
Communication Protocol	MODBUS, MODBUS TCP, EtherNet/IP, CANopen (requires a CANopen function card)				MODBUS, CANopen
Ethernet Connection Resource	MODBUS (Client/Server): 32/32 EtherNet/IP (CIP): 32				MODBUS ( EtherNet/IP
Data Backup (Without Battery) Program	Flash ROM, rewritable up to 100,000 times
Latched Area	MRAM, no rewriting limit
CANopen DS301 Connectable Salve Stations	Max. 64 points
PDO Data Capacity (Host)	Max. 2,000 bytes (Read & Write)
PDO Data Capacity (Slave)	Max. 8 PDO (Read & Write); Max. 8 bytes for each PDO
Real-time Clock (RTC)	General Lithium button battery (CR1620)
Self-Diagnosis Function	diagnoses CPU errors, built-in memory errors, and more
Rated Input Current AS-PS02 / AS-PS02A	110 VAC ~ 240 VAC (±10%)
CPU	24 VDC (±10%)
