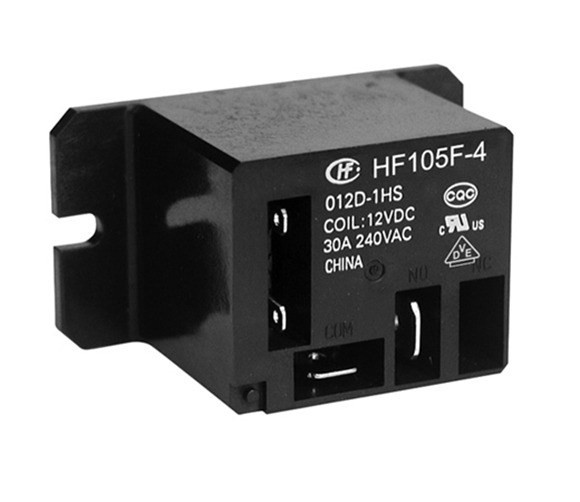

Hongfa Relay HF105F-5

Series#: Hongfa Power relay

Product Details

Qty:

Specification

ype HF105F-5 HF105F-5
Coil voltage form DC AC
Coil voltage 70, 48, 15, 12, 5, 6, 110, 9, 24, 18 208, 120, 240, 277, 220, 12, 24
Contact arrangement 1 Form A, 1 Form C, 1 Form B 1 Form A, 1 Form C, 1 Form B
Contact version Single contact Single contact
Terminal type 2500VAC, 4000VAC 2500VAC, 4000VAC
Construction Plastic sealed, Dust protected Dust protected, Plastic sealed
Terminals QC and PCB QC and PCB
Sort Single side stable Single side stable
Contact capacity AgSnO2, AgCdO AgCdO, AgSnO2
Insulation standard Class B, Class F Class F, Class B
Packing method Plastic tray Plastic tray
Rated voltage(V) 240VAC 240VAC
Coil angel form PCB and QC PCB and QC
Coil power approx. 0.9 approx. 0.9
Dielectric strength (between coil & contacts) (VAC 1min) 2500/4000 2500/4000
Operate time(ms) ≤15 ≤15
Release time(ms) ≤10 ≤10
Coil resistance(Ω) 5:27,6:40,9:97,12:155,15:256,18:380,24:660,48:2560,70:5500,110:13450 12:25,24:100,120:2500,208:11000,220:13490,240:13490,277:15000
Insulation resistance(MΩ) 1000 1000
Max. switching Current(AC) 30 30
Max. switching voltage(VAC) 277 277
Ambient temperature (max)(℃) -55 -55
Ambient temperature (min)(℃) 85 60
Length(mm) 32.4 32.4
Width(mm) 27.3 27.3
Heigh(mm) 27.8 27.8
Mechanical endurance min 10000000 10000000
Electrial eddurance min 50000(See approval reports for more details) 100000(See approval reports for more details)
Product Description Miniature High Power Relay Miniature High Power Relay
Application appliances,etc appliances,etc
Weight(g) Aporox. 36 Aporox. 36
Volume(mm3) 32.4*27.3*27.8 32.4*27.3*27.8
Product approval UL,VDE,CQC UL
File No. UL:E134517,VDE:40025518,CQC:CQC09002031229 UL:E134517
