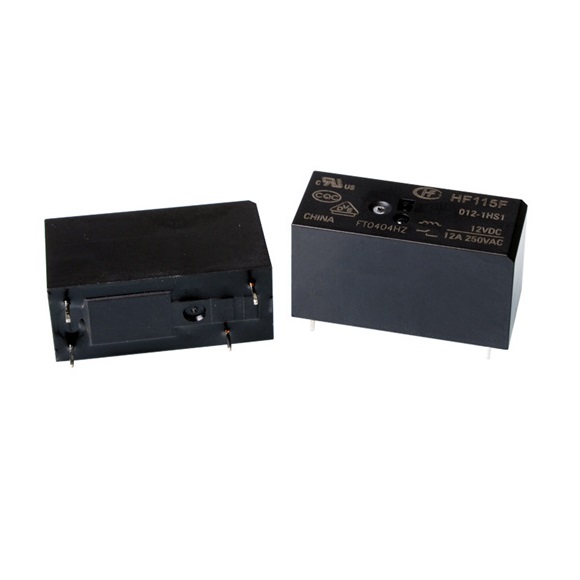

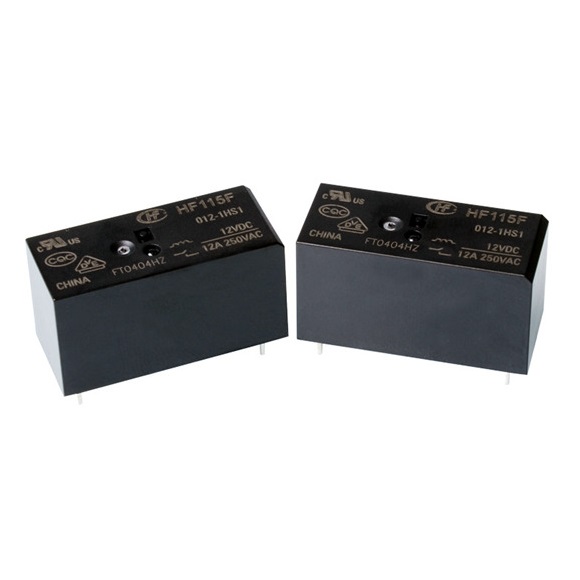

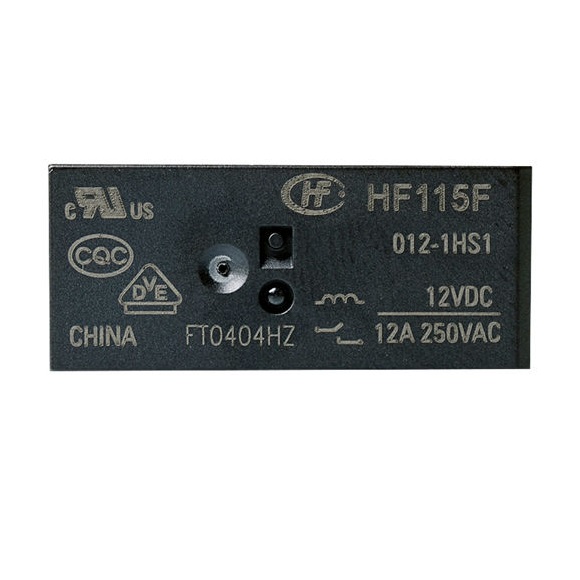

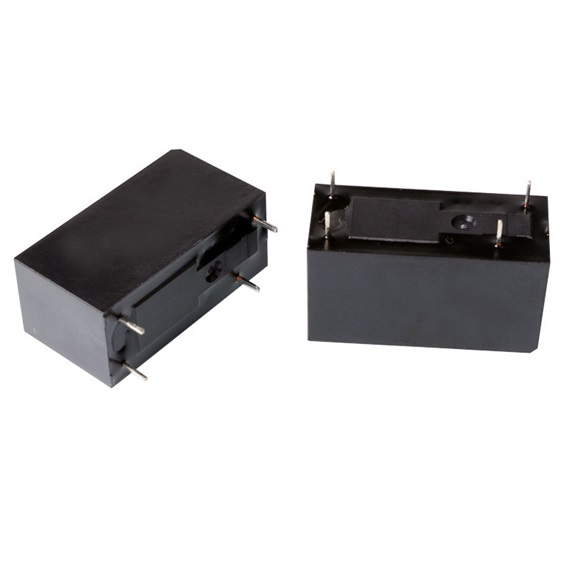

Hongfa Relay HF115F

Series#: Hongfa Power relay

Product Details

Qty:

Specification

Type HF115F
Coil voltage form DC
Coil voltage 60, 12, 18, 5, 48, 24, 6, 110, 9
Contact arrangement 1 Form C, 2 Form A, 1 Form B, 1 Form A, 2 Form B, 2 Form C
Contact version single contact
Terminal type PCB
Mounting PCB-THT
Construction Plastic sealed, Flux proofed
Terminals 5.0mm 2 pole 8A, 5.0mm 1 pole 16A, 5.0mm 1 pole 12A, 3.5mm 1 pole 12A
Coil power Standard
Sort Standard
Contact capacity AgSnO2, AgCdO, AgNi
Insulation standard Class B, Class F
Contact plating Without plating, Au plated
Packing method Tube packing or tray packing
Rated voltage(V) 250V.a.c
Coil power Approx 0.4
Dielectric strength (between coil & contacts) (VAC 1min) 5000VAC 1min
Operate time(ms) ≤15
Release time(ms) ≤8
Coil resistance(Ω) 005:62×(1±10%)Ω
006:90×(1±10%)Ω
009:202×(1±10%)Ω
012:360×(1±10%)Ω
018:810×(1±10%)Ω
024:1440×(1±10%)Ω
048:5760×(1±15%)Ω
060:7500×(1±15%)Ω
110:25200×(1±15%)Ω
Creepage Distance(mm) 10
Electrical Distance(mm) 10
Insulation resistance(MΩ) 1000
Max. switching Current(AC) 1H:12A/16A
1Z:12A/16A
1D:12A/16A
2H:8A
2Z:8A
2D:8A
Max. switching voltage(VAC) 440VAC
Max. switching voltage(VDC) 300VDC
Ambient temperature (max)(℃) -40
Ambient temperature (min)(℃) 85
Length(mm) 29.0
Width(mm) 12.7
Heigh(mm) 15.7
Mechanical endurance min 10000000
Electrial eddurance min 100000(See approval reports for more details)
IEC60335-1 Yes
Explosion-proof certification UL,VDE,TUV,IECEx
Product Description Clapper Type Electromagnetic Relay
Application appliances,intelligent home,Thermostat,etc
Weight(g) Aporox. 13.5
Volume(mm3) 29.0×12.7×15.7
Product approval VDE,UL,CQC
File No. VDE 116934,UL E134517,CQC CQC17002168381
