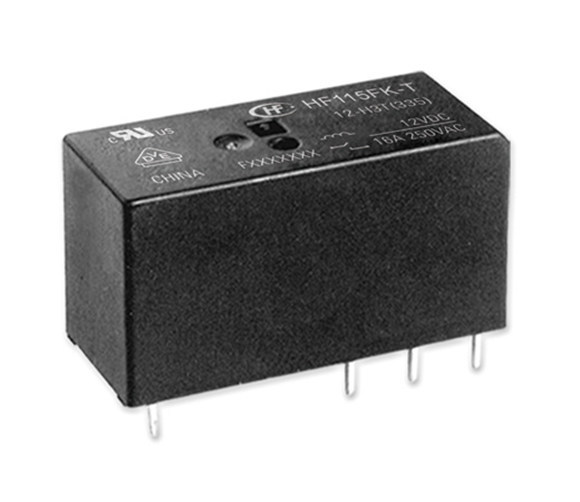

| Type | HF115FK | |
| Coil voltage form | DC | |
| Coil voltage | 24, 12, 9, 18, 6, 48, 5 | |
| Contact arrangement | 2 Form A, 2 Form C, 1 Form C, 1 Form A | |
| Contact version | single contact | |
| Terminal type | PCB | |
| Mounting | PCB-THT | |
| Construction | Flux proofed | |
| Terminals | 5.0mm 1 pole 12A, 3.5mm 1 pole 12A, 5.0mm 1 pole 16A, 5.0mm 2 pole 8A | |
| Coil power | Standard | |
| Sort | Standard | |
| Contact capacity | AgSnO2 | |
| Insulation standard | Class F | |
| Parallel coil components | / | |
| Contact endurance | / | |
| Polarity | / | |
| Packing method | Tube packing or tray packing | |
| Rated voltage(V) | 250V.a.c | |
| Contact arrangement assistant | / | |
| Coil angel form | PCB | |
| Shell structure | / | |
| Base structure | / | |
| Coil power | Approx 0.4 | |
| Dielectric strength (between coil & contacts) (VAC 1min) | 5000VAC 1min | |
| Operate time（ms） | ≤10 | |
| Release time（ms） | ≤5 | |
| Coil resistance（Ω） | 5:62×（1±10%）Ω 6:90×（1±10%）Ω 9:202×（1±10%）Ω 12:360×（1±10%）Ω 18:810×（1±10%）Ω 24:1440×（1±10%）Ω 48:5760×（1±15%）Ω |
|
| Creepage Distance（mm） | 10 | |
| Electrical Distance（mm） | 10 | |
| Insulation resistance（MΩ） | 1000 | |
| Max. switching Current（AC） | 1H:12A/16A 1Z:12A/16A 2H:8A 2Z:8A |
|
| Max. switching voltage（VAC） | 400 | |
| Max. switching voltage（VDC） | 300 | |
| Ambient temperature (max)（℃） | -40 | |
| Ambient temperature (min)（℃） | 85 | |
| Length(mm) | 29.0 | |
| Width(mm) | 12.7 | |
| Heigh(mm) | 15.7 | |
| Mechanical endurance min | 10000000 | |
| Electrial eddurance min | 50000(See approval reports for more details) | |
| IEC60335-1 | No | |
| Product Description | Clapper Type Electromagnetic Relay | |
| Application | appliances,intelligent home,Thermostat,etc | |
| Typical application | / | |
| Weight（g） | Aporox. 13 | |
| Volume（mm3） | 29.0×12.7×15.7 | |
| Product approval | VDE,UL,CQC | |
| File No. | VDE 116934,UL E134517,CQC CQC17002176308 |
