| Type |
HF152FD |
|
| Coil voltage form |
DC |
|
| Coil voltage |
48, 12, 5, 9, 6, 18, 3, 24 |
|
| Contact arrangement |
1 Form A, 1 Form C |
|
| Contact version |
Single contact |
|
| Terminal type |
Single pin, Double pins |
|
| Construction |
Plastic sealed, Flux proofed |
|
| Terminals |
PCB |
|
| Sort |
Single side stable |
|
| Contact capacity |
AgSnO2, AgNi |
|
| Insulation standard |
Class B, Class F |
|
| Contact endurance |
Long endurance type（Only for AgNi type）, Standard type |
|
| Contact plating |
Gold plated, No gold plated |
|
| Packing method |
Tube, Box |
|
| Rated voltage(V) |
250VAC |
|
| Coil angel form |
PCB |
|
| Coil power |
Approx. 0.36 |
|
| Dielectric strength (between coil & contacts) (VAC 1min) |
2500 |
|
| Operate time（ms） |
≤10 |
|
| Release time（ms） |
≤5 |
|
| Coil resistance（Ω） |
3:25,5:70,6:100,9:225,12:400,18:900,24:1600,48:6400 |
|
| Insulation resistance（MΩ） |
1000 |
|
| Max. switching Current（AC） |
20 |
|
| Max. switching voltage（VAC） |
400 |
|
| Ambient temperature (max)（℃） |
-40 |
|
| Ambient temperature (min)（℃） |
105 |
|
| Length(mm) |
21.2 |
|
| Width(mm) |
16 |
|
| Heigh(mm) |
20.6 |
|
| Mechanical endurance min |
10000000 |
|
| Electrial eddurance min |
100000(See approval reports for more details) |
|
| Product Description |

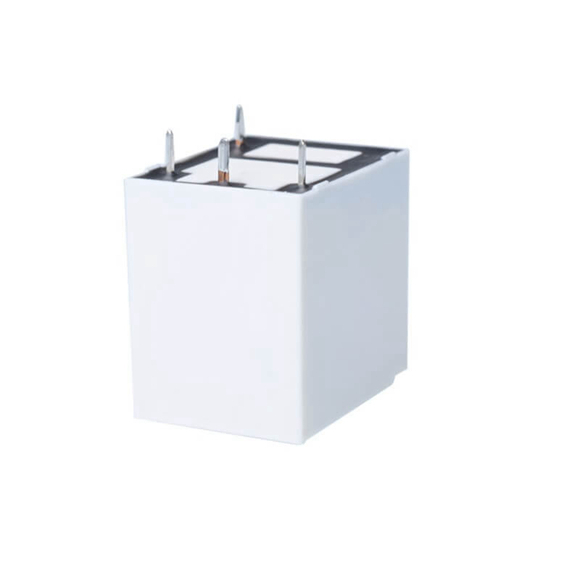

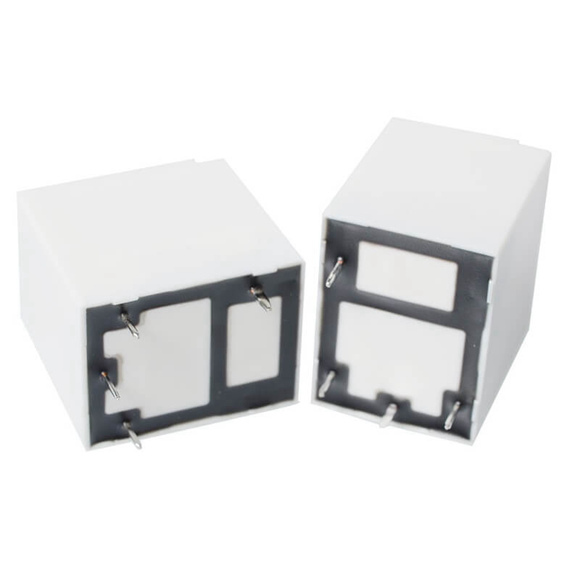

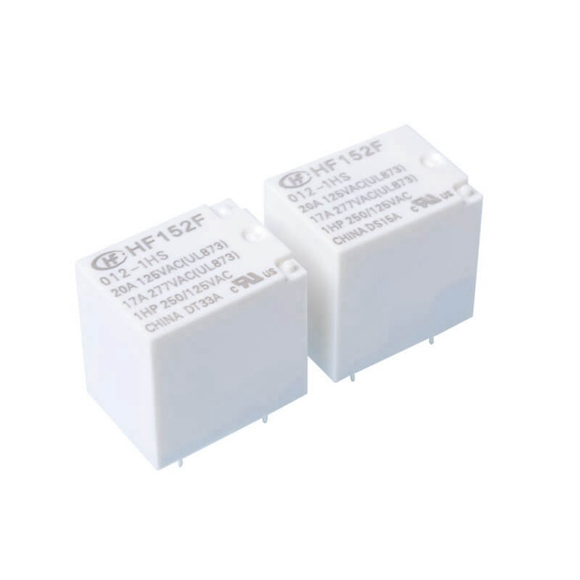

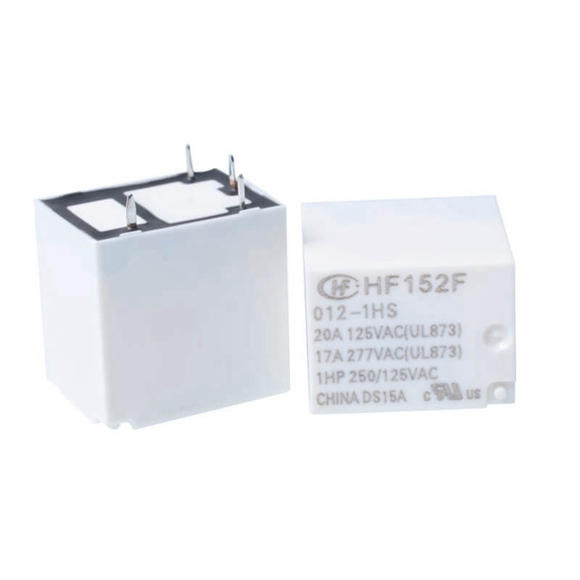

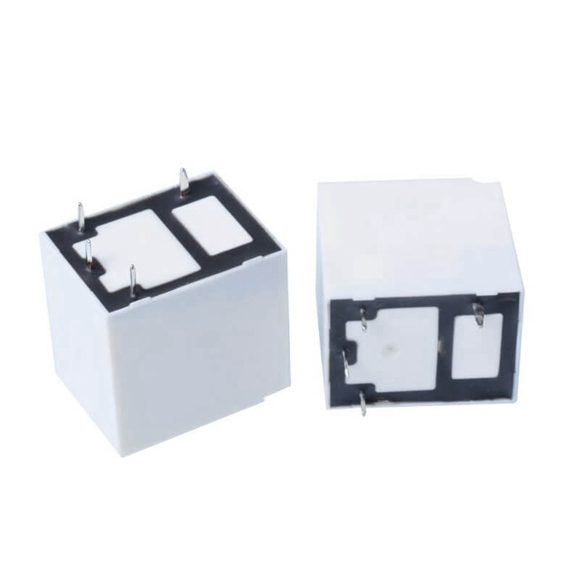

Miniature High Power Relay |
