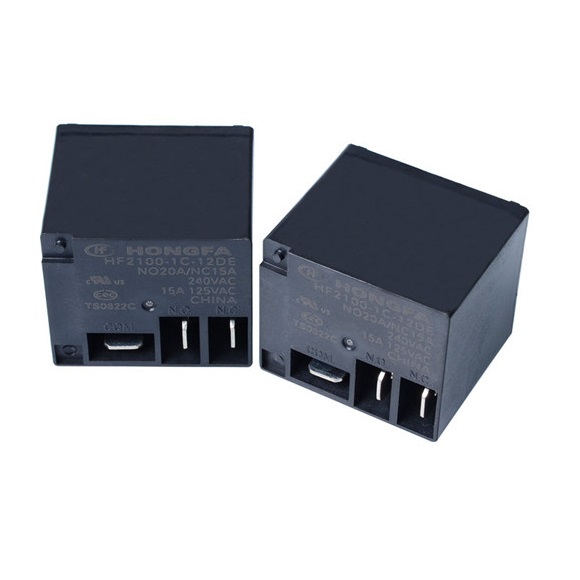

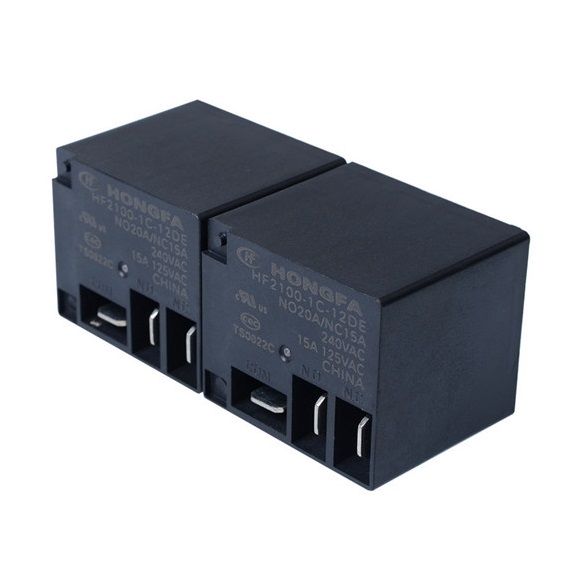

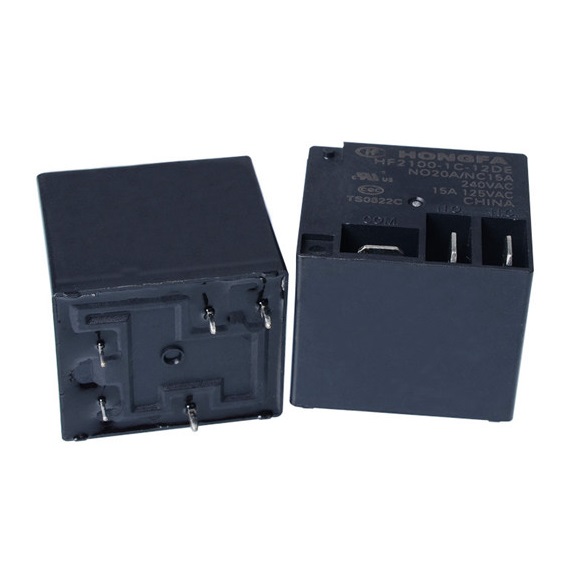

Type | HF2100 | |
Coil voltage form | DC | |
Coil voltage | 48, 15, 24, 12, 6, 5, 70, 110, 9, 18 | |
Contact arrangement | 1 Form B, 1 Form A, 1 Form C | |
Contact version | Single contact | |
Terminal type | PCB and QC | |
Construction | Plastic sealed, Dust protected | |
Terminals | PCB and QC | |
Sort | Single side stable | |
Contact capacity | AgCdO, AgSnO2 | |
Insulation standard | Class B, Class F | |
Packing method | Plastic tray | |
Rated voltage(V) | 240VAC | |
Coil angel form | PCB | |
Coil power | Approx. 0.9 | |
Dielectric strength (between coil & contacts) (VAC 1min) | 2500 | |
Operate time(ms) | ≤15 | |
Release time(ms) | ≤10 | |
Coil resistance(Ω) | 5:27,6:40,9:97,12:155,15:256,18:380,24:660,48:2560,70:5500,110:13450 | |
Insulation resistance(MΩ) | 1000 |
