| ype |

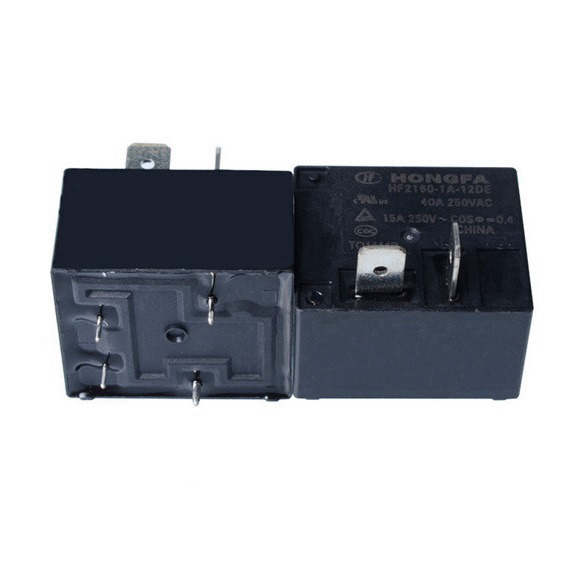

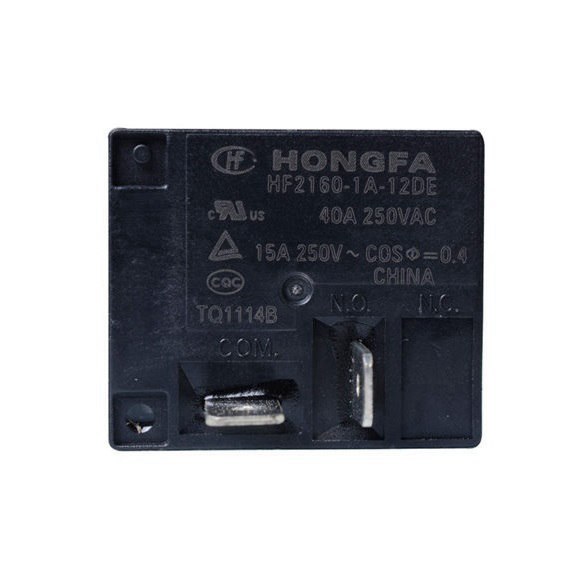

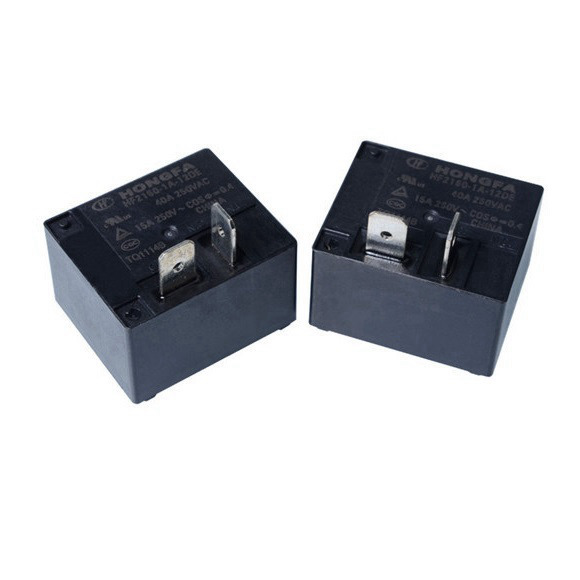

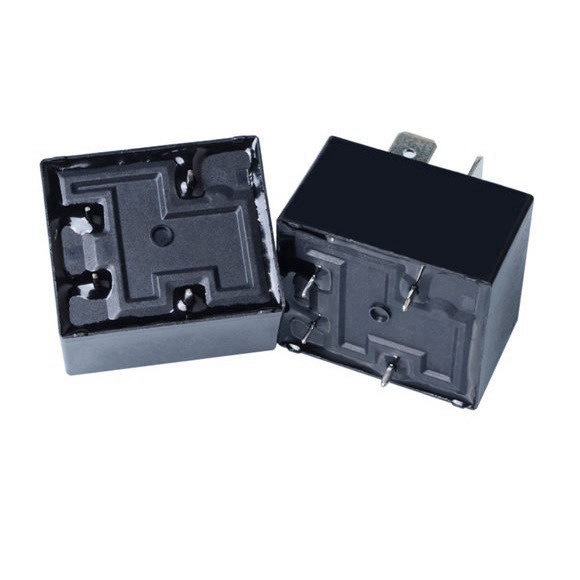

HF2160 |
|
| Coil voltage form |
DC |
|
| Coil voltage |
9, 70, 18, 5, 15, 24, 110, 48, 12, 6 |
|
| Contact arrangement |
1 Form A, 1 Form B, 1 Form C |
|
| Contact version |
Single contact |
|
| Terminal type |
PCB and QC |
|
| Construction |
Dust protected, Plastic sealed |
|
| Terminals |
PCB and QC |
|
| Coil power |
Standard |
|
| Sort |
Single side stable |
|
| Contact capacity |
AgSnO2, AgCdO |
|
| Insulation standard |
Class B, Class F |
|
| Packing method |
Plastic tray |
|
| Rated voltage(V) |
250VAC |
|
| Coil angel form |
PCB |
|
| Coil power |
Approx.0.9 |
|
| Dielectric strength (between coil & contacts) (VAC 1min) |
2500 |
|
| Operate time（ms） |
≤15 |
|
| Release time（ms） |
≤10 |
|
| Coil resistance（Ω） |
5:27,6:40,9:97,12:155,15:256,18:380,24:660,48:2560,70:5500,110:13450 |
