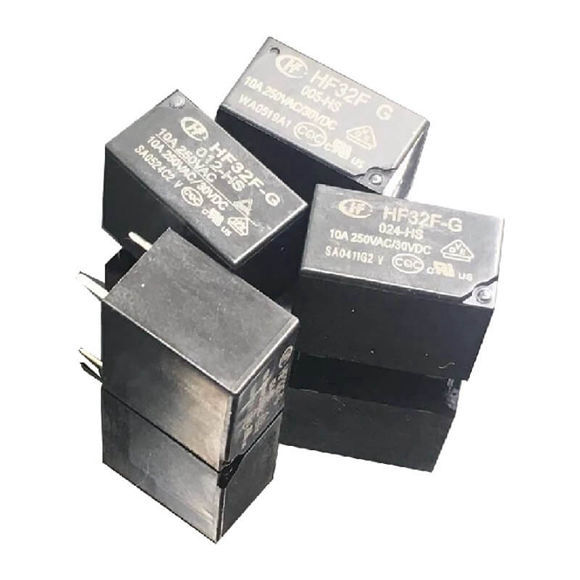

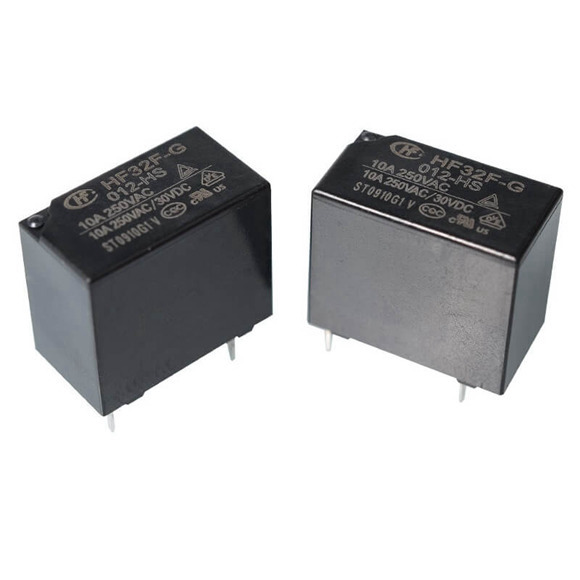

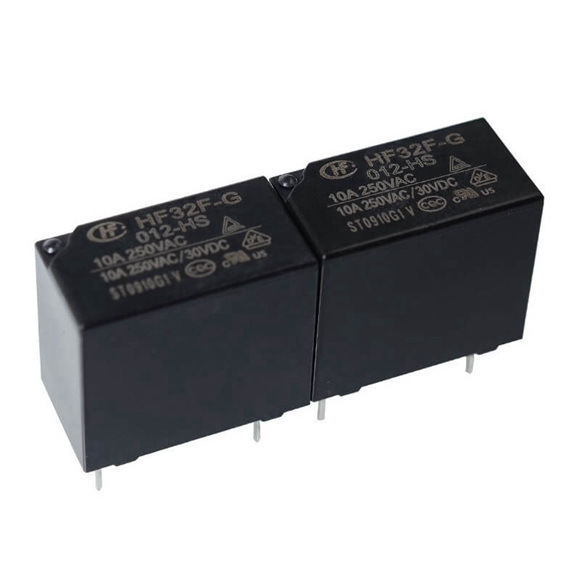

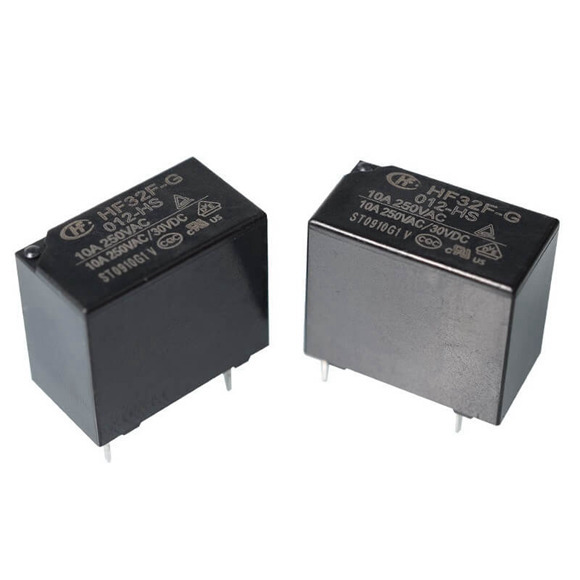

| Type |
HF32F-G |
|
| Coil voltage form |
DC |
|
| Coil voltage |
5, 18, 6, 48, 9, 12, 24, 3 |
|
| Contact arrangement |
1 Form A |
|
| Contact version |
single contact |
|
| Terminal type |
PCB |
|
| Mounting |
PCB-THT |
|
| Construction |
Flux proofed, Plastic sealed |
|
| Coil power |
Standard |
|
| Sort |
Single side stable |
|
| Contact capacity |
AgNi, AgSnO2, AgCdO |
|
| Insulation standard |
Class B, Class F |
|
| Contact plating |
Without plating |
|
| Packing method |
Tube packing or Carton packing |
|
| Rated voltage(V) |
250V.a.c |
|
| Coil power |
Approx 0.45 |
|
| Dielectric strength (between coil & contacts) (VAC 1min) |
2500VAC 1min |
|
| Operate time（ms） |
≤8 |
|
| Release time（ms） |
≤5 |
|
| Creepage Distance（mm） |
3.2 |
|
| Electrical Distance（mm） |
3.1 |
|
| Insulation resistance（MΩ） |
1000 |
|
| Max. switching Current（AC） |
10 |
|
| Max. switching voltage（DC） |
10 |
|
| Max. switching voltage（VAC） |
250VAC |
|
| Max. switching voltage（VDC） |
30VDC |
|
| Ambient temperature (max)（℃） |
-40 |
|
| Ambient temperature (min)（℃） |
85 |
|
| Length(mm) |
18.4 |
|
| Width(mm) |
10.2 |
|
| Heigh(mm) |
15.3 |
|
| Mechanical endurance min |
1000000 |
|
| Electrial eddurance min |
100000 |
|
| IEC60335-1 |
NO |
|
| Product Description |
Pusher Type Electromagnetic Relay |
