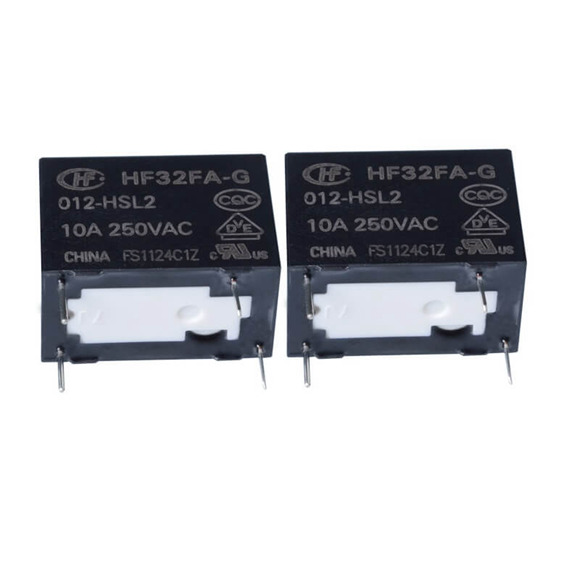

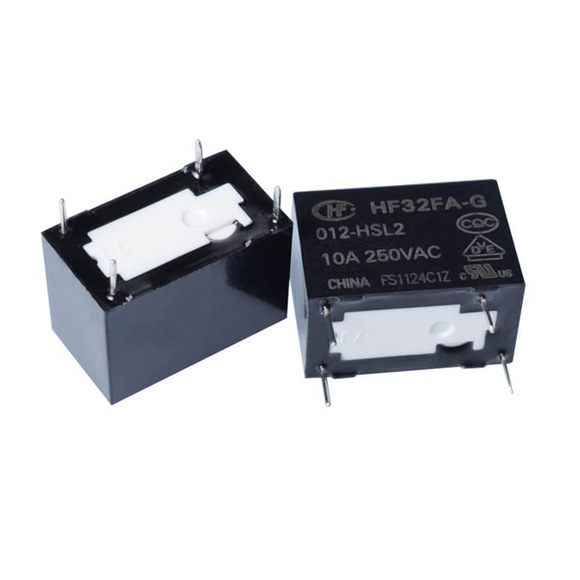

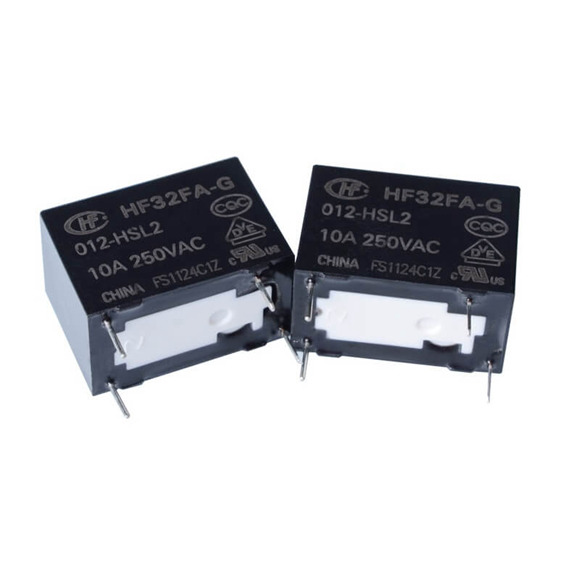

Type | HF32FA-G | |
Coil voltage form | DC | |
Coil voltage | 48, 3, 5, 24, 18, 36, 12, 9, 6 | |
Contact arrangement | 1 Form A | |
Contact version | single contact | |
Terminal type | PCB | |
Mounting | PCB-THT | |
Construction | unsealed, plastic sealed | |
Terminals | type 2 terminal, type 1 terminal | |
Coil power | sensitive type, standard type | |
Sort | Standard | |
Contact capacity | AgSnO2 | |
Insulation standard | Class F | |
Contact plating | N/A, Au plated | |
Packing method | Tube packing or carton packing | |
Rated voltage(V) | 250VAC | |
Coil power | Approx. 0.45W | |
Dielectric strength (between coil & contacts) (VAC 1min) | 5000VAC 1min | |
Operate time(ms) | ≤8 | |
Release time(ms) | ≤4 | |
Coil resistance(Ω) | 003:20×(1±10%) 005:55×(1±10%) 006:80×(1±10%) 009:180×(1±10%) 012:320×(1±10%) 018:720×(1±10%) 024:1280×(1±10%) 036:2880×(1±10%) 048:5120×(1±10%) |
|
Creepage Distance(mm) | 8 | |
Electrical Distance(mm) | 8 | |
Insulation resistance(MΩ) | 1000 | |
Max. switching Current(AC) | 10 | |
Max. switching voltage(VAC) | 250 | |
Ambient temperature (max)(℃) | -40 | |
Ambient temperature (min)(℃) | 85 | |
Length(mm) | 17.6 | |
Width(mm) | 10.1 | |
Heigh(mm) | 12.7 | |
Mechanical endurance min | 1000000 | |
Electrial eddurance min | 15000 | |
IEC60335-1 | 符合 | |
Explosion-proof certification | VDE | |
Product Description | Clapper Type Electromagnetic Relay |
