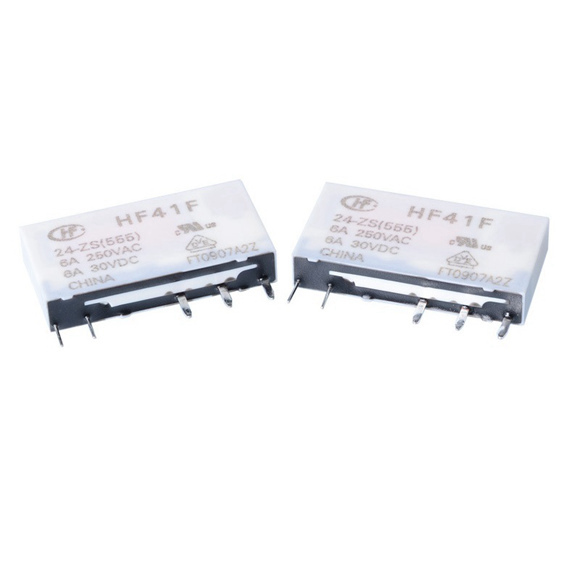

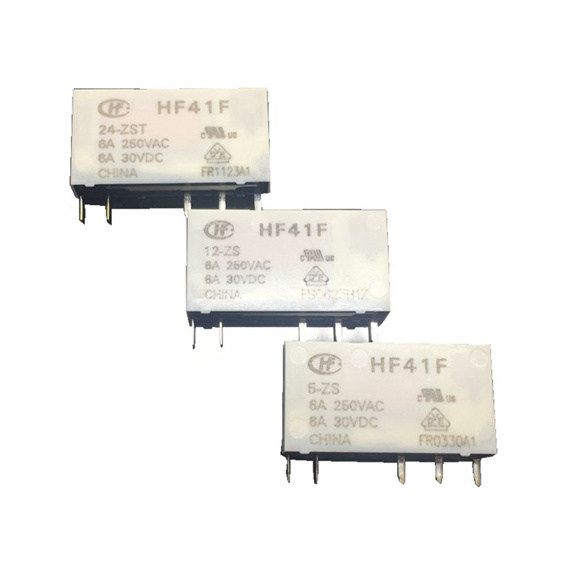

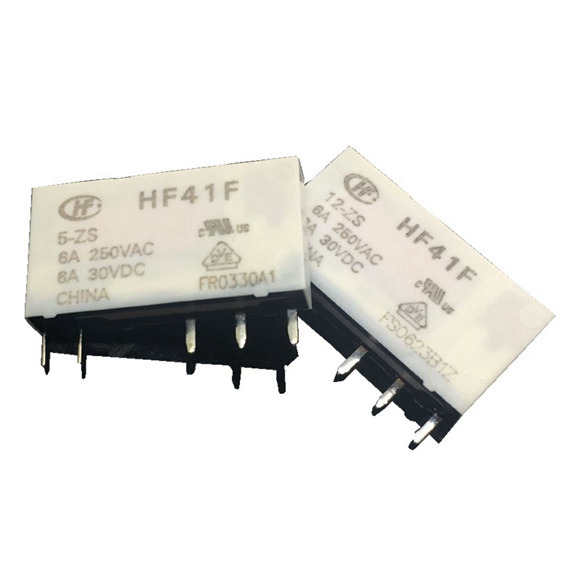

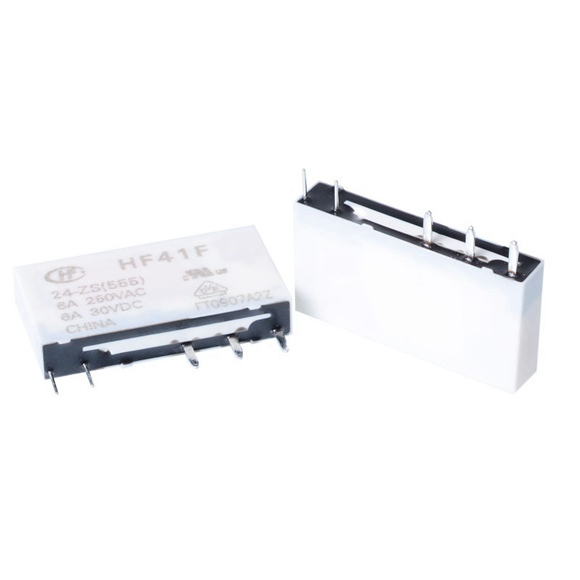

| Type | HF41F | |
| Coil voltage form | DC | |
| Coil voltage | 48, 24, 12, 9, 18, 60, 6, 5, | |
| Contact arrangement | 1 Form A, 1 Form C | |
| Contact version | Single contact | |
| Terminal type | PCB引出脚 | |
| Mounting | Vertical version, Flat pack version | |
| Construction | Flux proofed, Plastic sealed | |
| Sort | 单稳态继电器 | |
| Contact capacity | AgSnO2, AgNi | |
| Insulation standard | Class F | |
| Contact plating | Without plating, Au plated | |
| Packing method | Tube packing | |
| Rated voltage(V) | 250V.a.c | |
| Coil power | Approx 0.17（＜48VDC） Approx0.21(48VDC 60VDC） |
|
| Dielectric strength (between coil & contacts) (VAC 1min) | 4000VAC 1min | |
| Operate time（ms） | ≤8(at Normal volt） | |
| Release time（ms） | ≤4(at Normal volt） | |
| Coil resistance（Ω） | 005:208×（1±10%）Ω 006:300×（1±10%）Ω 009:675×（1±10%）Ω 012:1200×（1±10%）Ω 018:2700×（1±10%）Ω 024:3200×（1±15%）Ω 024:4800×（1±15%）Ω |
|
| Creepage Distance（mm） | 8 | |
| Electrical Distance（mm） | 5 | |
| Insulation resistance（MΩ） | 1000 | |
| Max. switching Current（AC） | 6A | |
| Max. switching voltage（VAC） | 250VAC | |
| Max. switching voltage（VDC） | 30VDC | |
| Ambient temperature (max)（℃） | -40 | |
| Ambient temperature (min)（℃） | 85 | |
| Length(mm) | 28 | |
| Width(mm) | 5.0 | |
| Heigh(mm) | 15 | |
| Mechanical endurance min | 10000000 | |
| Electrial eddurance min | 30000(See approval reports for more details) | |
| Explosion-proof certification | UL | |
| Product Description | Clapper Type Electromagnetic Relay |
