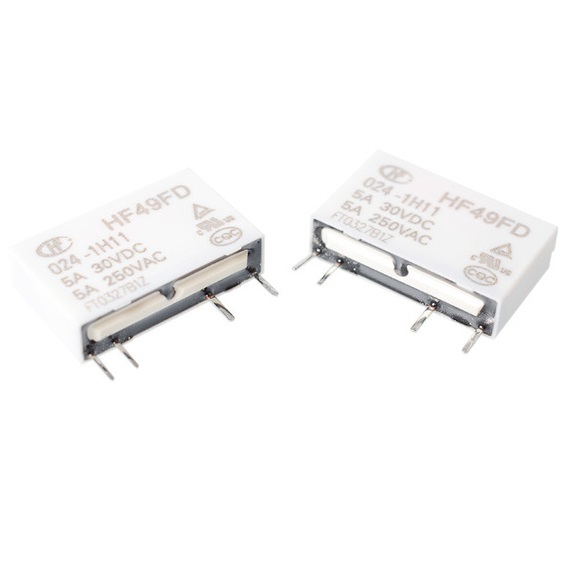

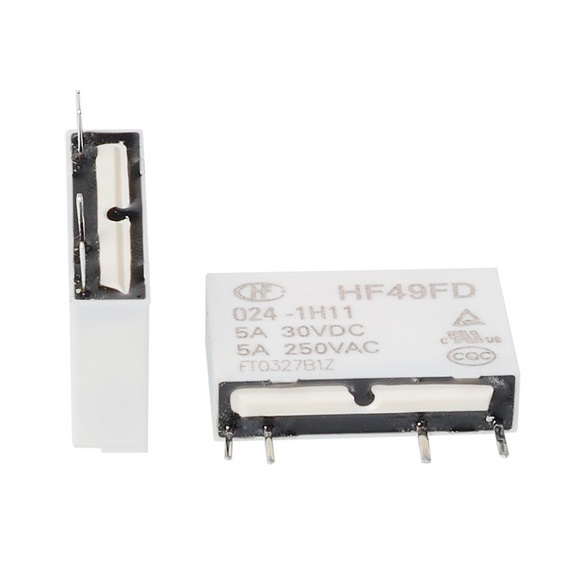

| Type | HF49FD | |
| Coil voltage form | DC | |
| Coil voltage | 9, 18, 24, 5, 12, 6 | |
| Contact arrangement | 1 Form A | |
| Contact version | Bifurcated contact(Only for gold plated), single contact | |
| Terminal type | PCB | |
| Mounting | ||
| Construction | ||
| Terminals | 5.02mm, 7.62mm | |
| Coil power | Sensitive(Only for 24VDC), Standard | |
| Sort | ||
| Contact capacity | AgNi, AgSnO2(Only for single contact) | |
| Insulation standard | Class B, Class F, Class A | |
| Contact plating | Without plating, Au plated | |
| Packing method | Tube packing | |
| Rated voltage(V) | 250V.a.c | |
| Coil power | Approx 0.12 Approx0.18（24VDC Standard） |
|
| Dielectric strength (between coil & contacts) (VAC 1min) | 3000VAC 1min | |
| Operate time（ms） | ≤10 | |
| Release time（ms） | ≤5 | |
| Coil resistance（Ω） | 005:208×（1±10%）Ω 006:300×（1±10%）Ω 009:675×（1±10%）Ω 012:1200×（1±10%）Ω 018:2700×（1±10%）Ω 024:3200×（1±15%）Ω 024:4800×（1±15%）Ω |
