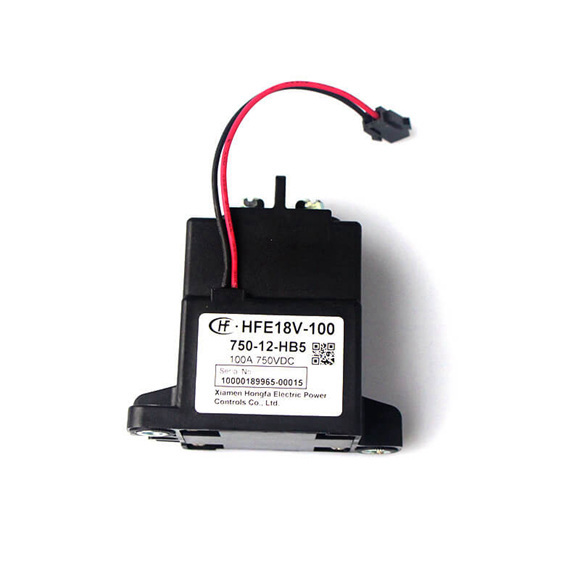

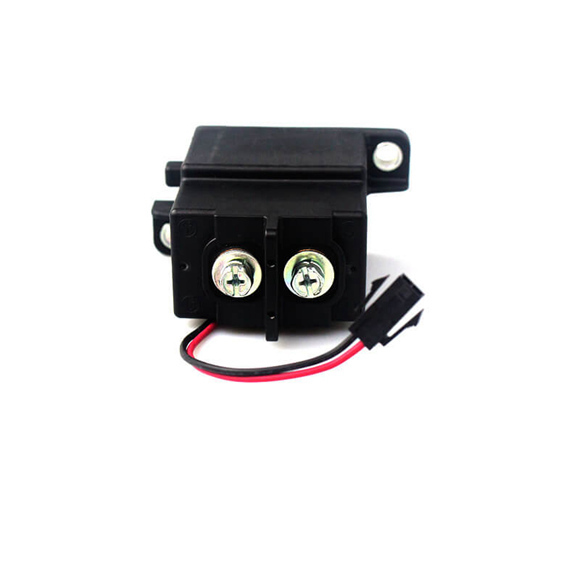

| Type | HFE18V-150 | |
| Coil voltage form | DC | |
| Coil voltage | 12, 24 | |
| Contact arrangement | 1 Form A | |
| Contact version | Single contact | |
| Terminal type | Bolt treminal Female | |
| Mounting | horizontal Mounting | |
| Terminals | there is only one form of leading end structure | |
| Coil power | Standard | |
| Sort | Single coil | |
| Contact capacity | Cu | |
| Insulation standard | Class H | |
| Contact plating | No coating | |
| Polarity | Standard Polarity | |
| Rated voltage(V) | 750, 450 | |
| Coil angel form | Connector | |
| Shell structure | Standard | |
| Base structure | Without plastic mounting boss | |
| Coil power | 6 | |
| Dielectric strength (between coil & contacts) (VAC 1min) | 4000VAC 1min | |
| Operate time（ms） | ≤30 | |
| Release time（ms） | ≤10 | |
| Coil resistance（Ω） | 24×（1±8%） 96×（1±8%） |
|
| Creepage Distance（mm） | 16 | |
| Electrical Distance（mm） | 5.5 | |
| Insulation resistance（MΩ） | 1000 | |
| Max. switching voltage（DC） | 150 | |
| Max. switching voltage（VDC） | 1000 | |
| Ambient temperature (max)（℃） | -40 | |
| Ambient temperature (min)（℃） | 85 | |
| Length(mm) | 89.1 | |
| Width(mm) | 41.5 | |
| Heigh(mm) | 78.4 | |
| Mechanical endurance min | 200000 | |
| Electrial eddurance min | 3000 | |
| Contact gap | ≥0.7 | |
| Product Description | HTDC relay | |
| Application | New energy vehicles | |
| Typical application | New energy vehicles | |
| Weight（g） | About 450 | |
| Volume（mm3） | 89.1×41.5×78.4 |
