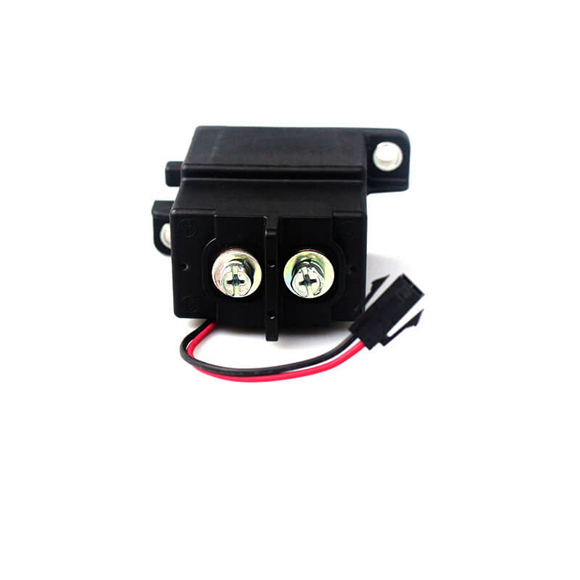

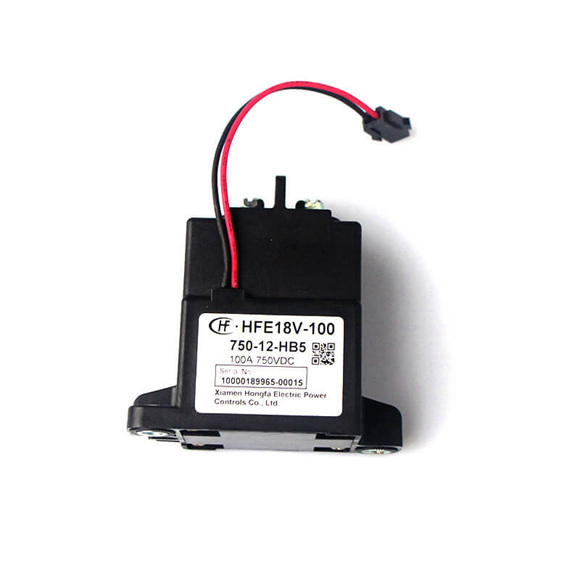

ype | HFE18V-200 | |
Coil voltage form | DC | |
Coil voltage | 24, 12 | |
Contact arrangement | 1 Form A | |
Contact version | Single contact | |
Terminal type | Bolt treminal Female | |
Mounting | Vertical Mounting | |
Terminals | there is only one form of leading end structure | |
Coil power | Standard | |
Sort | Single coil | |
Contact capacity | Cu | |
Insulation standard | Class H | |
Contact plating | No coating | |
Polarity | Standard Polarity | |
Rated voltage(V) | 450, 750 | |
Coil angel form | Connector | |
Shell structure | Standard | |
Base structure | Without plastic mounting boss | |
Coil power | 4 | |
Dielectric strength (between coil & contacts) (VAC 1min) | 4000VAC 1min | |
Operate time(ms) | ≤30 | |
Release time(ms) | ≤10 | |
Coil resistance(Ω) | int:19.2×(1±5%) 76.8×(1±5%)out:148×(1±5%) |
|
Creepage Distance(mm) | 16 | |
Electrical Distance(mm) | 5.5 | |
Insulation resistance(MΩ) | 1000 | |
Max. switching voltage(DC) | 200 | |
Max. switching voltage(VDC) | 1000 | |
Ambient temperature (max)(℃) | -40 | |
Ambient temperature (min)(℃) | 85 | |
Length(mm) | 95 | |
Width(mm) | 45 | |
Heigh(mm) | 85.1 | |
Mechanical endurance min | 200000 | |
Electrial eddurance min | 3000 | |
Contact gap | ≥1.4 | |
Product Description | HTDC relay | |
Application | New energy vehicles | |
Typical application | New energy vehicles | |
Weight(g) | About 500 | |
Volume(mm3) | 95×45×85.1 |
