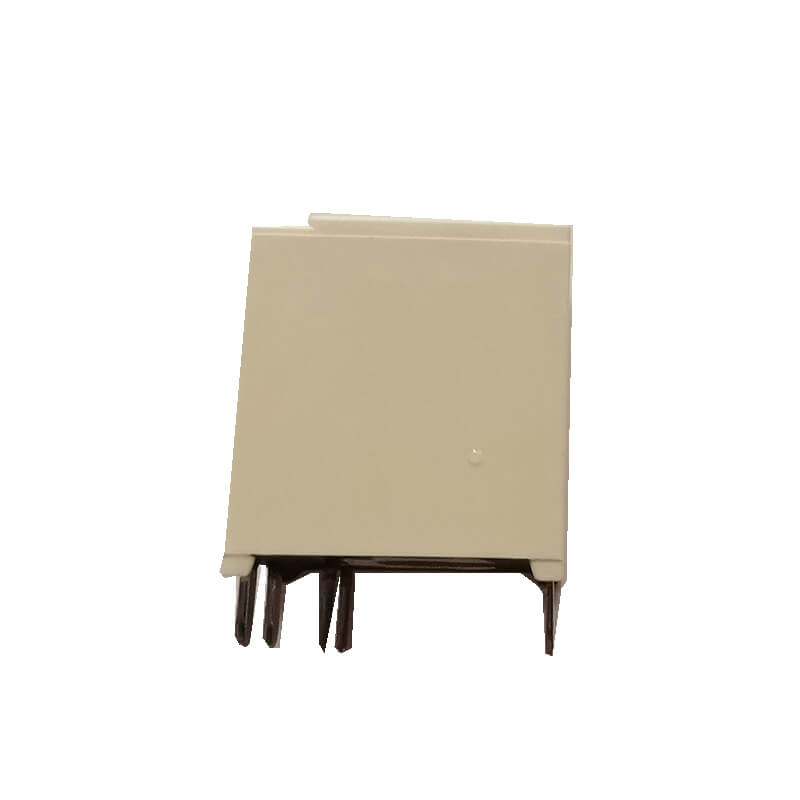

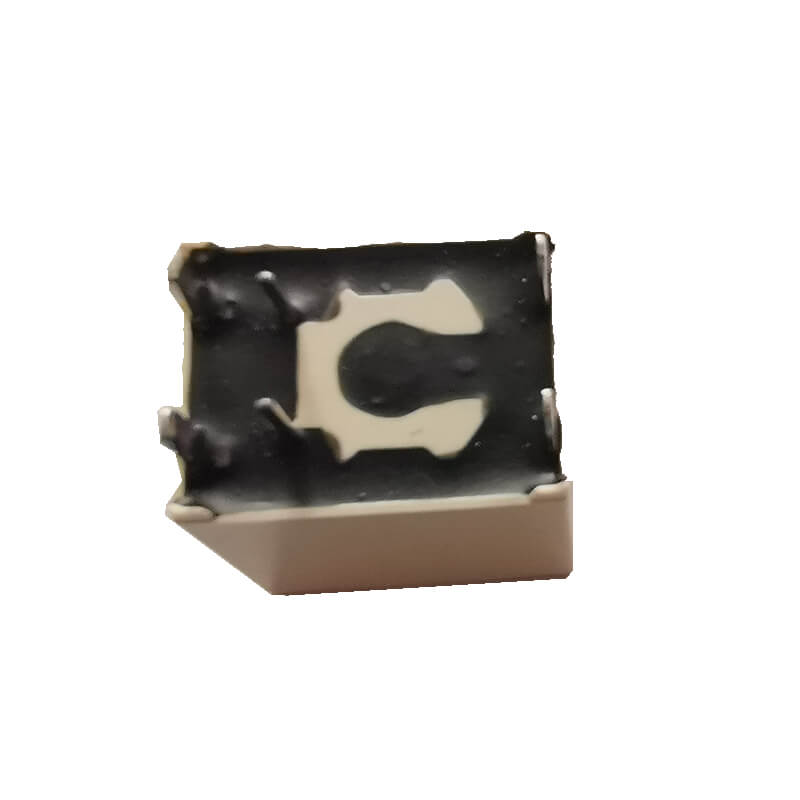

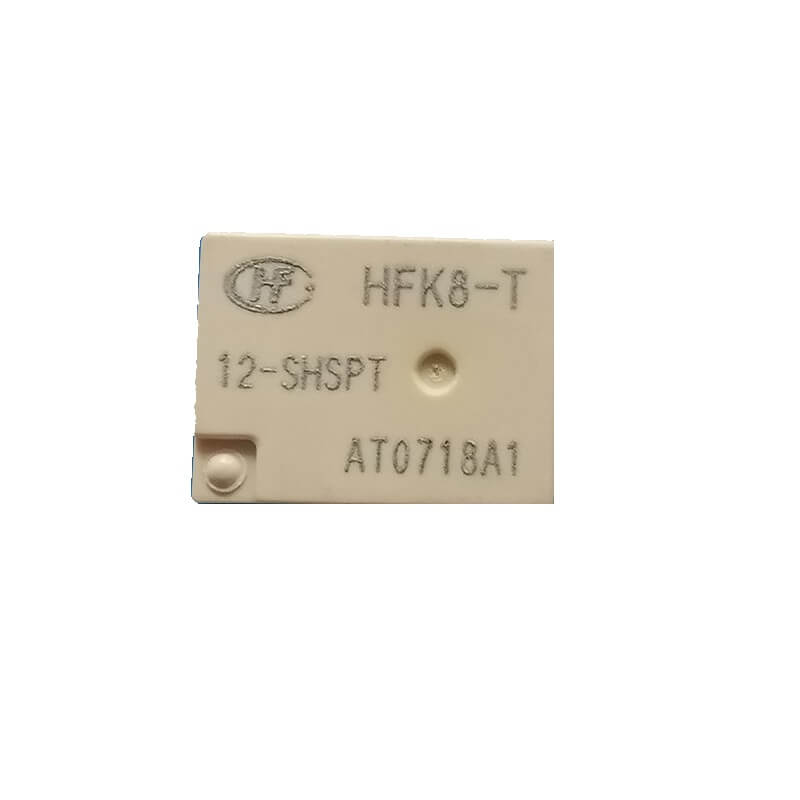

Hongfa Relay HFK8-T Series

Series#: Hongfa Automotive Relay

Product Details

Qty:

Specification

Type HFK8-T
Coil voltage form DC
Coil voltage 12
Contact arrangement 1 Form U
Contact version single contact
Terminal type PCB
Mounting PCB-THT
Construction Plastic sealed, Flux proofed(Reflow soldering version)
Coil power Low pick-up voltage
Sort monostable
Contact capacity AgSnO2
Packing method Tube packing
Rated voltage(V) 12
Coil power Approx 0.64
Dielectric strength (between coil & contacts) (VAC 1min) 500VAC 1min
Operate time(ms) ≤10
Release time(ms) ≤10
Coil resistance(Ω) 225×(1±10%)
Insulation resistance(MΩ) 100
Max. switching voltage(DC) Make:120A Break:60A(Resistive,14VDC)
Max. switching voltage(VDC) 16
Ambient temperature (max)(℃) -40
Ambient temperature (min)(℃) 125
Length(mm) 14.4
Width(mm) 11
Heigh(mm) 16
Mechanical endurance min 5000000
Electrial eddurance min 100000(See approval reports for more details)
Product Description Clapper Type Electromagnetic Relay
