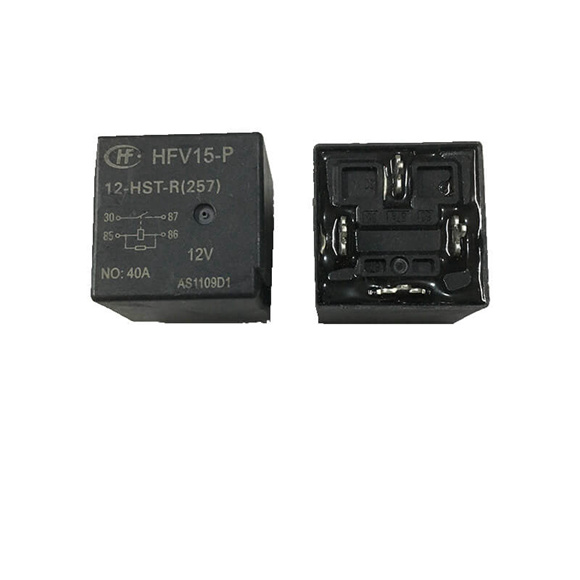

| Type | HFV15 | |
| Coil voltage form | DC | |
| Coil voltage | 24, 12 | |
| Contact arrangement | 1 Form C, 1 Form A | |
| Contact version | single contact | |
| Terminal type | , J | |
| Mounting | 4, 1, 5, 3 | |
| Construction | Plastic sealed, Flux proofed | |
| Coil power | Standard | |
| Sort | Single side stable | |
| Contact capacity | AgSnO2 | |
| Parallel coil components | diode, 无, resistance | |
| Packing method | Tube packing or plastics packing | |
| Rated voltage(V) | 12V.d.c | |
| Coil power | Approx 1.8 | |
| Dielectric strength (between coil & contacts) (VAC 1min) | 500VAC 1min | |
| Operate time（ms） | ≤10 | |
| Release time（ms） | ≤10 | |
| Coil resistance（Ω） | 12VDC:85×（1±10%） 12VDC:90×（1±10%） 24VDC:320×（1±10%） |
|
| Insulation resistance（MΩ） | 100 | |
| Max. switching voltage（DC） | 100 | |
| Max. switching voltage（VDC） | 80 | |
| Ambient temperature (max)（℃） | -40 | |
| Ambient temperature (min)（℃） | 125 | |
| Length(mm) | 26 | |
| Width(mm) | 26 | |
| Heigh(mm) | 22.7 | |
| Mechanical endurance min | 10000000 | |
| Electrial eddurance min | 100000(See approval reports for more details) | |
| Product Description | Clapper Type Electromagnetic Relay |
