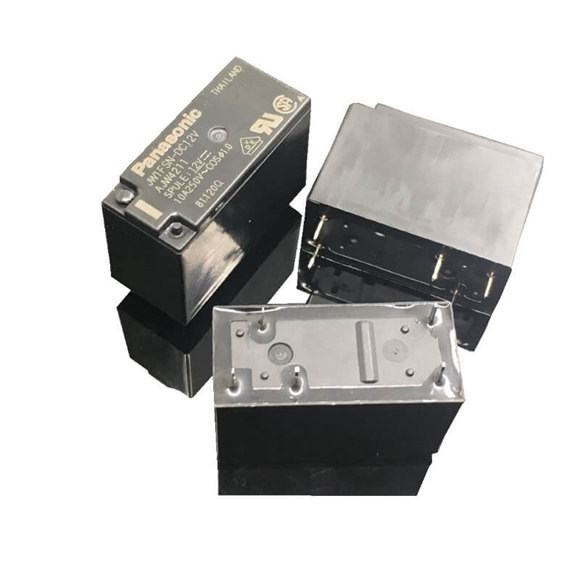

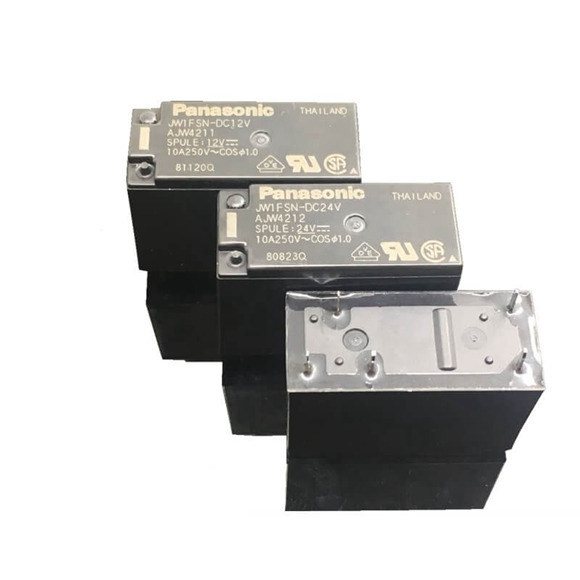

| Item | Specifications | |||||
| type | Standard type | High capacity type | ||||
| Contact arrangement | 1 Form A, 1 Form C, 2 Form A, 2 Form C |
1 Form A, 1 Form C | ||||
| 1 Form C | Rated coil voltage | Sealed | Sealed | Flux-resistant | Flux-resistant | |
| 1 Form C | — | Type No. | Part No. | Type No. | Part No. | |
| 1 Form C | 5 V DC | JW1FSN-DC5V | AJW4219 | JW1FHN-DC5V | AJW4519 | |
| 1 Form C | 6 V DC | JW1FSN-DC6V | AJW4210 | JW1FHN-DC6V | AJW4510 | |
| 1 Form C | 9 V DC | JW1FSN-DC9V | AJW4215 | JW1FHN-DC9V | AJW4515 | |
| 1 Form C | 12 V DC | JW1FSN-DC12V | AJW4211 | JW1FHN-DC12V | AJW4511 | |
| 1 Form C | 24 V DC | JW1FSN-DC24V | AJW4212 | JW1FHN-DC24V | AJW4512 | |
| 1 Form C | 48 V DC | JW1FSN-DC48V | AJW4213 | JW1FHN-DC48V | AJW4513 | |
| Contact resistance (Initial) |
Max. 100mΩ (by voltage drop 6V DC 1A) | |||||
| Contact material | 1 Form A: AgSnO2 type, 1 Form C, 2 Form A, 2 Form C: AgNi type | |||||
| Contact rating (resistive) |
5A 250V AC, 5A 30V DC | 10A 250V AC, 10A 30V DC | ||||
| Max. switching power (resistive) |
1,250VA, 150W | 2,500VA 300W | ||||
| Max. switching voltage | 250V AC, 30V DC | |||||
| Max. switching current | 5A | 10A | ||||
| Min. switching load (reference value) *1 |
100mA, 5V DC | |||||
| Insulation resistance (Initial) | Min. 1,000MΩ (at 500V DC, Measured portion is the same as the case of dielectric strength.) | |||||
| Between open contacts | 1,000Vrms for 1 min (detection current: 10mA) | |||||
| Between contact sets | 2 Form A, 2 Form C: 3,000Vrms for 1 min (detection current: 10mA)- |
|||||
| Between contact and coil | 5,000Vrms for 1 min (detection current: 10mA) | |||||
| Between contacts and coil | 10,000V | |||||
| Operate time | Max. 15ms (at rated coil voltage, at 20°C, without bounce) | |||||
| Release time | Max. 5ms (at rated coil voltage, at 20°C, without bounce, without diode) | |||||
| Functional | Min. 98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10µs) | |||||
| Destructive | Min. 980 m/s2 (half-sine shock pulse: 6 ms) | |||||
| Functional | 10 to 55 Hz (at double amplitude of 1.6 mm, detection time: 10µs) | |||||
| Destructive | 10 to 55 Hz (at double amplitude of 2 mm) | |||||
| Mechanical life | Min. 5×106 (switching frequency: 180 times/min) | |||||
| Conditions for usage, transport and storage *3 |
Ambient temperature: –40 to +60°C (Class E), –40 to +85°C (Class B) *4 Humidity: 5 to 85% RH (Avoid icing and condensation) |
|||||
| Unit weight | Approx. 13 g | |||||
