Keyence CCD Laser Micrometer IG-010 IG-028 IG-1000 IG-1050 IG-1500 IG-1550
We are First Class Keyence sensor dealer and Keyence sensor distributor in China.
We can Supply all kinds of Keyence sensor parts,such as Keyence Digital Laser Sensors,Keyence Vision Sensors,Keyence Fiber Optic Sensors,Keyence Inductive Proximity Sensors,Keyence Photoelectric Sensors,Keyence Positioning Sensors and So on.
All parts are 100% Original and new in stock by Keyence and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Model	IG-010	IG-028
Operation principle	CCD method
Wavelength	660 nm (Visible light semiconductor laser)
FDA	Class 1^*1
IEC/JIS	Class 1
Mounting distance	0 to 1000 mm 39.37″	0 to 1500 mm 59.06″
Measurement range	10 mm 0.39″	28 mm 1.10″
Sampling cycle	980 µs (When the number of times for averaging is set to [hsp]: 490 µs)
High sensitivity mode	ø0.1 mm ø0.003″ (Setting distance: 100 mm 3.94″)^*2
Standard mode	ø0.2 mm ø0.007″ (Setting distance: 40 mm 1.57″ or less), ø0.5 mm ø0.02″ (Setting distance: 500 mm 19.68″)^*2	ø0.2 mm ø0.007″ (Setting distance: 50 mm 1.97″ or less), ø0.5 mm ø0.02″ (Setting distance: 500 mm 19.68″)^*2
Repeatability	5 µm 0.20 Mil (Setting distance: 100 mm 3.94″) 10 µm 0.39 Mil (Setting distance: 500 mm 19.68″) 80 µm 3.15 Mil (Setting distance: 1,000 mm 39.37″)^*3	5 µm 0.20 Mil (Setting distance: 100 mm 3.94″) 10 µm 0.39 Mil (Setting distance: 500 mm 19.68″) 80 µm 3.15 Mil (Setting distance: 1,000 mm 39.37″) 140 µm 5.51 Mil (Setting distance: 1,500 mm 59.06″)^*3
Linearity	±0.28 % of F.S. (±28 µm ±1.10 Mil)^*4	±0.1 % of F.S. (±28 µm ±1.10 Mil)^*4
Temperature characteristics	±0.03 % of F.S./°C (±3 µm ±0.12 Mil/°C)^*5	±0.01 % of F.S./°C (±3 µm ±0.12 Mil/°C)^*5
Transmitter	Optical axis alignment indicator: Green LED, Power indicator: Green LED
Receiver	Optical axis alignment indicator: Green LED, Position monitor: Dual bar LED (Red, Green)
Enclosure rating	IP67
Ambient light	Incandescent lamp: 5,000 lux, Sunlight: 5,000 lux^*6
Ambient temperature	-10 to +45 °C 14 to 113 °F (No freezing)
Relative humidity	35 to 85 % RH (No condensation)
Vibration resistance	10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis
Case	Zinc die-cast (Lower case), PBT (Upper case), Polyarylate (PAR) (Display part), SUS304 (Metallic part)
Lens cover	Glass
Cable	PVC

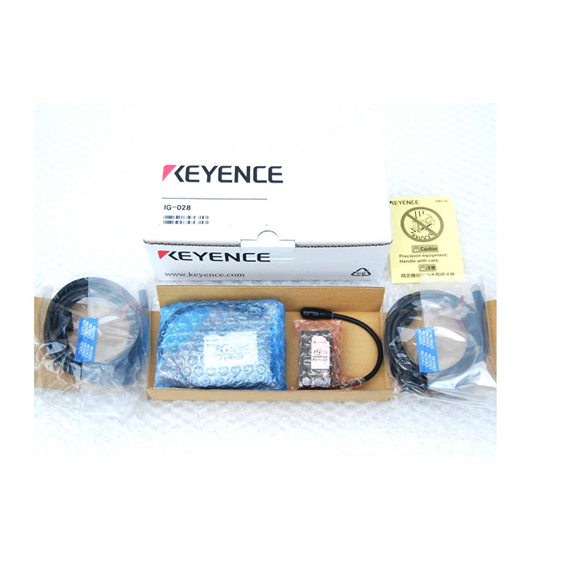

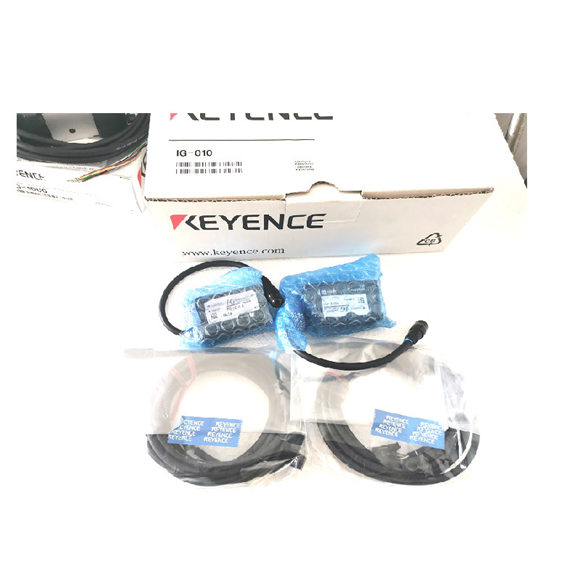

Accessories	Transmitter × 1, Receiver × 1, Sensor head cables (2 m 6.56′) × 2
Weight	Approx. 380 g (including supplied items)	Approx. 500 g (including supplied items)

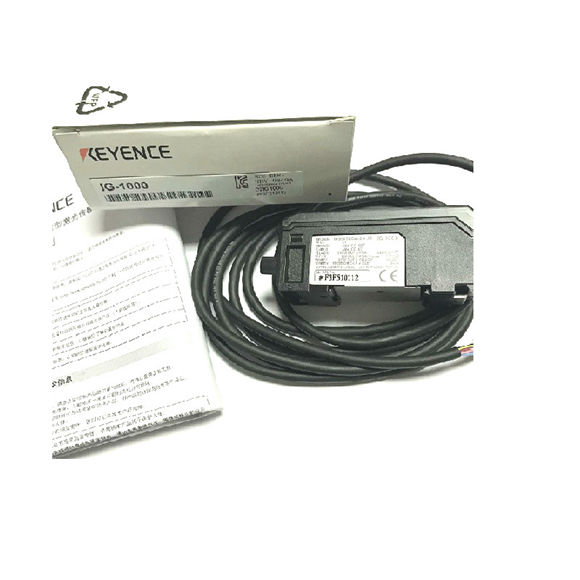

Model	IG-1000	IG-1050	IG-1500	IG-1550
Type	DIN rail mount		Panel mount
Main unit/Expansion unit	Main unit	Expansion unit	Main unit	Expansion unit
Analog output	Yes	No	Yes	No
Normal	2700 mW or less (at 30 V: 90 mA or less)^*1		2880 mW or less (at 30 V: 96 mA or less)^*1
Power saving function (HALF)	2300 mW (at 30 V: 77 mA or less)^*1
Power saving function (ALL)	2200 mW (at 30 V: 74 mA or less)^*1
Digital display method	Dual 7-seg display Upper level: Red, 5 digits Lower level: Green, 5 digits		Dual 7-seg display Upper level: Red/Green, 2 colors, 5 digits Lower level: Green, 5 digits
Display range	-99.999 to +99.999, -99.99 to +99.99, -99.9 to +99.9, -99 to +99 (selectable)
Display resolution	1 µm 0.04 Mil, 10 µm 0.39 Mil, 100 µm 3.94 Mil, 1,000 µm 39.37 Mil (selectable)
Input Gain input	Input time: 20 ms or more, Response delay time: 120 ms or less (Nonvolatile memory (EEPROM) 1.5 s or less)
Reset input	Input time: 20 ms or more, Response delay time: 20 ms or less
Timing input	Input time: 2 ms or more, Response delay time: 2 ms or less
Zero shift input	Input time: 20 ms or more, Response delay time: 20 ms or less
Bank A input/Bank B input	Input time: 20 ms or more, Response delay time: 20 ms or less ^*3
Laser emission stop input	Input time: 2 ms or more, Response delay time: 2 ms or less
Material	Main unit case/Front sheet: Polycarbonate, Key top: Polyacetal, Cable: PVC
Accessories	Main body × 1, Instruction manual × 1	Main body × 1	Main body × 1, Panel mounting bracket × 1, Front protection cover × 1, Power supply and input/output cable (2 m 6.56′) × 1, Instruction manual × 1	Main body × 1, Panel mounting bracket × 1, Front protection cover × 1, Power supply and input/output cable (2 m 6.56′) × 1, Expansion cable (50 mm 1.97″) × 1
Weight	Approx. 150 g (including supplied items)	Approx. 140 g (including supplied items)	Approx. 170 g (including supplied items)	Approx. 165 g (including supplied items)
