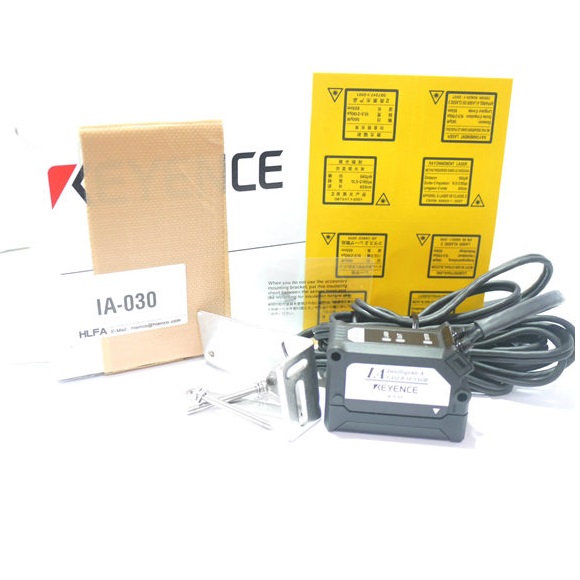

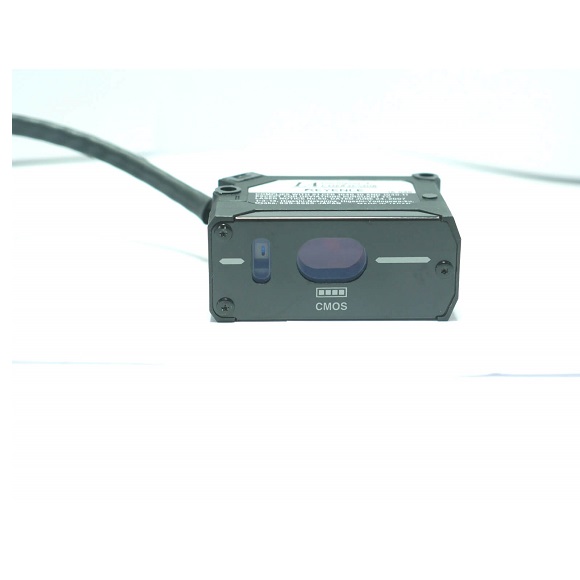

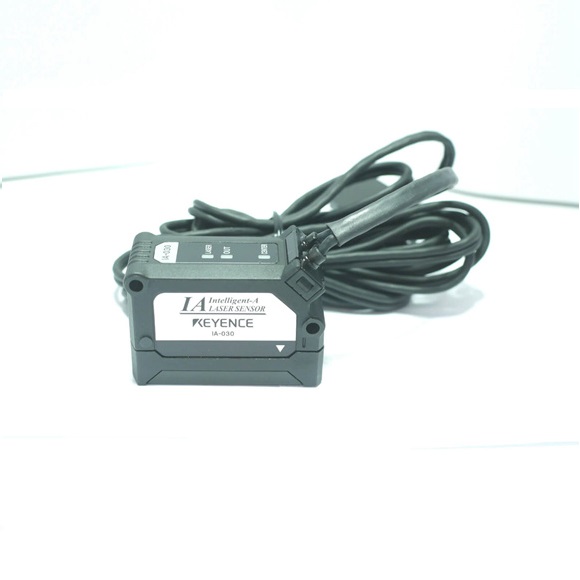

Keyence CMOS Analog Laser Sensor IA-030 IA-065 IA-100 IA-1000

Series#: Keyence Digital Laser Sensor

Product Details

Qty:

Specification

Model IA-030 IA-065 IA-100
Reference distance 30 mm 1.18″ 65 mm 2.56″ 100 mm 3.94″
Measurement range 20 to 45 mm 0.79″ to 1.77″ 55 mm to 105 mm 2.17″ to 4.13″ 75 mm to 130 mm 2.95″ to 5.12″
Light source

Type

Red semiconductor laser, wavelength: 655 nm (visible light)
Laser class Class 1 (FDA (CDRH) Part1040.10)*1
Class 1 (IEC 60825-1)
Class II (FDA (CDRH) Part1040.10)
Class 2 (IEC 60825-1)
Output 220 µW 560 µW
Spot diameter (at standard distance) Approx. 200 x 750 µm 7.89 x 29.53 Mil Approx. 550 x 1,750 µm 21.65 x 68.9 Mil Approx. 400 x 1,350 µm 15.75 x 53.15 Mil
Linearity ±0.1% of F.S. (F.S.=±5 mm 0.20″,
25 to 35 mm 0.98″ to 1.38″)*2
±0.1% of F.S. (F.S.=±10 mm 0.39″,
55 to 75 mm 2.17″ to 2.95″)*2
±0.15% of F.S. (F.S.=±20 mm 0.79″,
80 to 120 mm 3.15″ to 4.72″)*2
Repeatability 2 µm 0.08 Mil*3 4 µm 0.16 Mil*3 10 µm 0.39 Mil*3
Sampling cycle 0.33/1/2/5 ms (4 levels available)

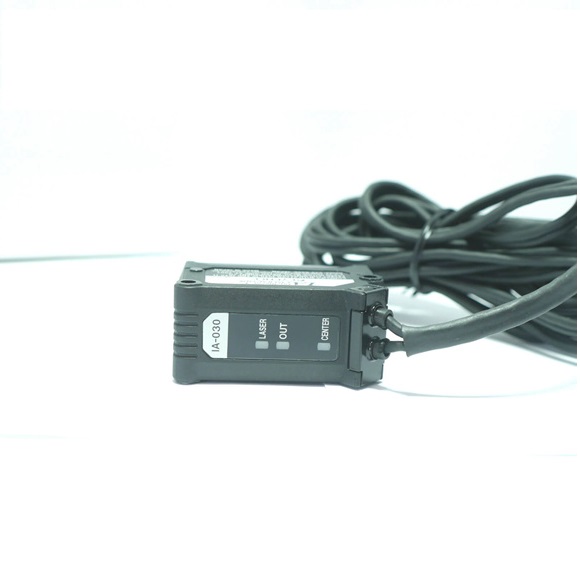

Operation status indicators Laser warning: Green LED, Analog output: Red LED, Measurement center: Green LED
Temperature characteristics 0.05% of F.S./°C (F.S.=±5 mm 0.20″,
25 to 35 mm 0.98″ to 1.38″)
0.06% of F.S./°C (F.S.=±10 mm 0.39″,
55 to 75 mm 2.17″ to 2.95″)
0.06% of F.S./°C (F.S.=±20 mm 0.79″,
80 to 120 mm 3.15″ to 4.72″)
Environmental resistance

Enclosure rating

IP67
Ambient light Incandescent lamp: 5,000 lux*4 Incandescent lamp: 7,500 lux*4
Ambient temperature -10 to +50 °C 14 to 122 °F (No condensation or freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis
Material Housing material: PBT Metal parts: SUS304 Packing: NBR Lens cover: Glass Cable: PVC
Weight Approx. 120 g (including cable) Approx. 130 g (including cable)
Model IA-1000
Head compatibility Yes
Display rate Approx. 10 times/sec
Minimum displayable unit 1 µm 0.04 Mil (IA-030), 2 µm 0.08 Mil (IA-065/IA-100)
Display range -99.999 to 99.999 mm -3.94″ to 3.94″ (IA-030) · -99.998 to 99.998 mm -3.94″ to 3.94″ (IA-065/IA-100)
Analog output voltage 0.5 to 4 V, Output impedance 100 Ω
Control
inputBank switch input
Non-voltage input*1
Zero-shift input
Stop emission input
Rating Power voltage 10 to 30 VDC, including Ripple (P-P) 10 %
Power consumption 1500 mW max. (at 30 V; 50 mA max.)
Environmental resistance

Ambient temperature

-10 to +55 °C 14 to 131 °F (No condensation or freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis
Material Front sheet: Polycarbonate Key tops: Polyacetel Cable: PVC
Weight Approx. 110 g (including cable)
