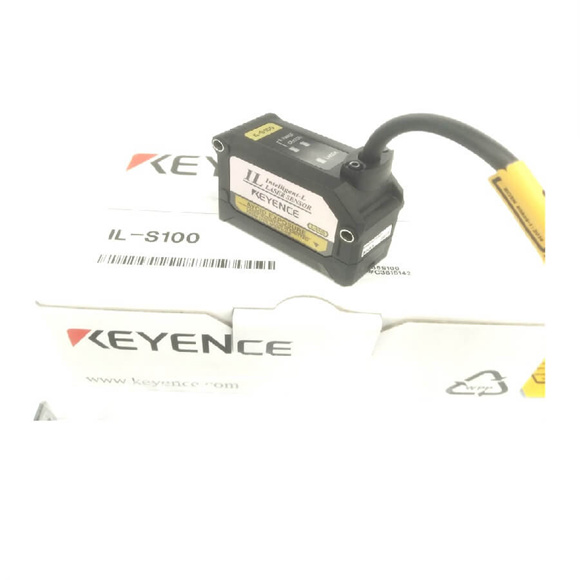

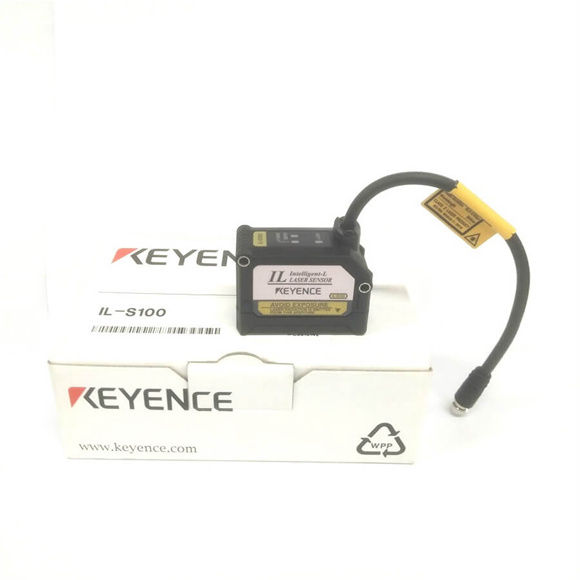

Model | IL-030 | IL-065 | IL-100 | IL-300 | IL-600 | IL-2000 |
Reference distance | 30 mm 1.18″ | 65 mm 2.56″ | 100 mm 3.94″ | 300 mm 11.81″ | 600 mm 23.62″ | 2000 mm 78.74″ |
Measurement range | 20 to 45 mm 0.79″ to 1.77″ | 55 to 105 mm 2.17″ to 4.13″ | 75 to 130 mm 2.95″ to 5.12″ | 160 to 450 mm
6.30″ to 17.72″ |
200 to 1000 mm
7.84″ to 39.37″ |
1000 to 3500 mm
39.37″ to 137.80″ |
Red semiconductor laser, wavelength: 655 nm (visible light) | ||||||
Light source Laser class | Class 1 (FDA (CDRH) Part1040.10) 1.
Class 1 (IEC 60825-1) |
Class 2 (FDA (CDRH) Part1040.10) 1.
Class 2 (IEC 60825-1) |
||||
Output | 220 µW | 560 µW | ||||
Spot diameter (at standard distance) | Approx. 200 × 750 μm | Approx. 550 × 1750 μm | Approx. 400 × 1350 μm | Approx. ø0.5 mm ø0.02″ | Approx. ø1.6 mm ø0.06″ | Approx. 1400 x 7000 μm |
Linearity 2. 3. |
±0.1% of F.S. (25 to 35 mm 0.98″ to 1.38″) |
±0.1% of F.S. (55 to 75 mm 2.17″ to 2.95″) |
±0.15% of F.S. (80 to 120 mm 3.15″ to 4.72″) |
±0.25% of F.S. (160 to 440 mm 6.30″ to 17.32″) |
±0.25% of F.S.
(200 to 600 mm 7.84″ to 23.62″) ±0.5% of F.S. (200 to 1000 mm 7.84″ to 39.37″) |
±0.16% of F.S.
(1000 to 3500 mm 39.37″ to 137.80″) |
Repeatability 4. | 1 μm | 2 μm | 4 μm | 30 μm | 50 μm | 100 μm |
Sampling rate | 0.33/1/2/5 ms (4 levels available) | |||||
Operation status indicators | Laser emission warning indicator: Green LED, Analog range indicator: Orange LED, Reference distance indicator: Red/Green LED | |||||
Temperature characteristics 3. | 0.05% of F.S./°C | 0.06% of F.S./°C | 0.06% of F.S./°C | 0.08% of F.S./°C | 0.016% of F.S./°C | |
Enclosure rating | IP67 | |||||
Ambient light 5. | Incandescent lamp: 5000 lux | Incandescent lamp: 7500 lux | Incandescent lamp: 5000 lux | Incandescent lamp: 10000 lux | ||
Ambient temperature | -10 to +50°C 14 to 122°F (No condensation or freezing) | |||||
Relative humidity | 35 to 85% RH (No condensation) | |||||
Vibration | 10 to 55 Hz Double amplitude 1.5 mm 0.06″ XYZ each axis: 2 hours | |||||
Pollution degree | 3 | |||||
Material | Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC | |||||
Weight | Approx. 60g | Approx. 75g | Approx. 135g | Approx. 350g |
