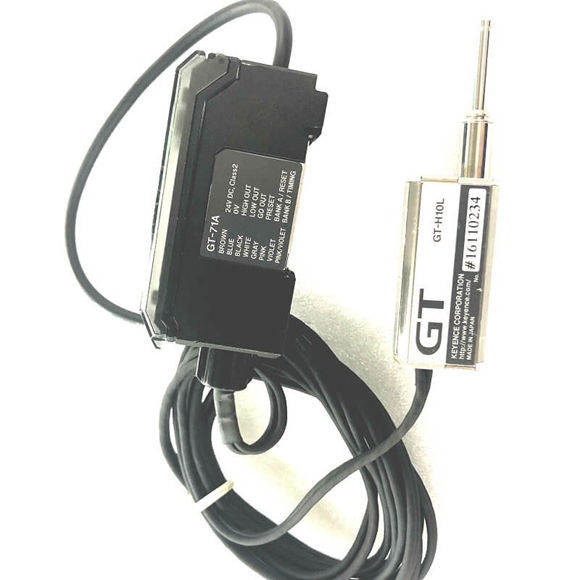

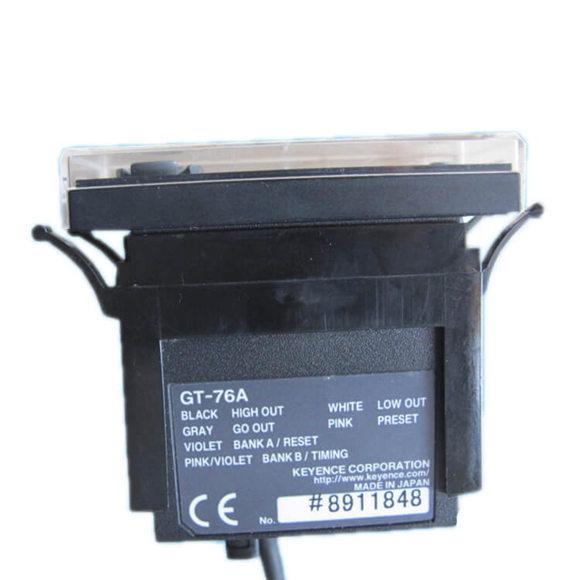

Model | GT-71A | GT-72A | GT-75A | GT-76A |
Type | Amplifier unit | |||
Output | NPN output | |||
Mounting method | DIN rail mount*1 | Panel mount | ||
Main unit/expansion unit | Main unit*2 | Expansion unit*2 | Main unit*2 | Expansion unit*2 |
Normal | At 12 V: 1,140 mW (95 mA) or less, At 24 V: 1,200 mW (50 mA) or less | |||
Power saving (Eco) | At 12 V: 600 mW (50 mA) or less, At 24 V: 840 mW (35 mA) or less | |||
Measured value display | 6-digit 7-segment LED (red) | |||
Other displays | 2-color 13-level bar LED display (red, green), indicators (red, green) | |||
Display range | -99.999 to 999.999 | |||
Display resolution | 1 µm 0.000039″ | |||
Sampling rate | 2,000 times/second | |||
Control input
Timing/preset/bank input |
Timing input: Non-voltage input (relay contact, solid state), input time: 2 ms or more Preset/Bank input: Non-voltage input (relay contact, solid state), input time: 20 ms or more |
|||
Response time | hsp (1.5 ms) , 5 ms, 10 ms, 100 ms, 500 ms, 1 s, 5 s | |||
HIGH, GO, LOW output | NPN open collector, 50 mA max. (40 V or less), residual voltage: 1 V or less, N.O./N.C. switchable | |||
Major functions | Preset, Hold, Variable hysteresis, Variable response time, Multiplier setting, Bank function (4 banks), Self-timing, Power save (eco) mode, Application mode, Calibration function, Core alarm |
|||
Rating
Power voltage |
12 to 24 VDC, Ripple (P-P) 10 % or less*3 | |||
Ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing) | |||
Relative humidity | 35 to 85 % RH (No condensation) | |||
Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
Material | Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: Polycarbonate, Cable: PVC | |||
Accessories | Instruction manual | Panel mounting bracket, protective front cover, power cable, instruction manual | Panel mounting bracket, protective front cover, power cable, flat cable for expansion, instruction manual | |
Weight | Approx. 110 g (including the power cable) | Approx. 110 g (: including panel mounting bracket, protective front cover, power cable) |
Model | GT-71AP | GT-72AP | GT-75AP | GT-76AP |
Type | Amplifier unit | |||
Output | PNP output | |||
Mounting method | DIN rail mount*1 | Panel mount | ||
Main unit/expansion unit | Main unit*2 | Expansion unit*2 | Main unit*2 | Expansion unit*2 |
Normal |
At 12 V: 1,140 mW (95 mA) or less, At 24 V: 1,200 mW (50 mA) or less | |||
Power saving (Eco) | At 12 V: 600 mW (50 mA) or less, At 24 V: 840 mW (35 mA) or less | |||
Measured value display |
6-digit 7-segment LED (red) | |||
Other displays | 2-color 13-level bar LED display (red, green), indicators (red, green) | |||
Display range | -99.999 to 999.999 | |||
Display resolution | 1 µm 0.000039″ | |||
Sampling rate | 2,000 times/second | |||
Control input
Timing/preset/bank input |
Timing input: Non-voltage input (relay contact, solid state), input time: 2 ms or more Preset/Bank input: Non-voltage input (relay contact, solid state), input time: 20 ms or more |
|||
Response time | hsp (1.5 ms) , 5 ms, 10 ms, 100 ms, 500 ms, 1 s, 5 s | |||
HIGH, GO, LOW output | PNP open collector, 50 mA max. (30 V or less), residual voltage: 1 V or less, N.O./N.C. switchable | |||
Major functions | Preset, Hold, Variable hysteresis, Variable response time, Multiplier setting, Bank function (4 banks), Self-timing, Power save (eco) mode, Application mode, Calibration function, Core alarm |
|||
Rating
Power voltage |
12 to 24 VDC, Ripple (P-P) 10 % or less*3 | |||
Ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing) | |||
Relative humidity | 35 to 85 % RH (No condensation) | |||
Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
Material | Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: Polycarbonate, Cable: PVC | |||
Accessories | Instruction manual | Panel mounting bracket, protective front cover, power cable, instruction manual | Panel mounting bracket, protective front cover, power cable, flat cable for expansion, instruction manual | |
Weight | Approx. 110 g (including the power cable) | Approx. 110 g (: including panel mounting bracket, protective front cover, power cable) |
